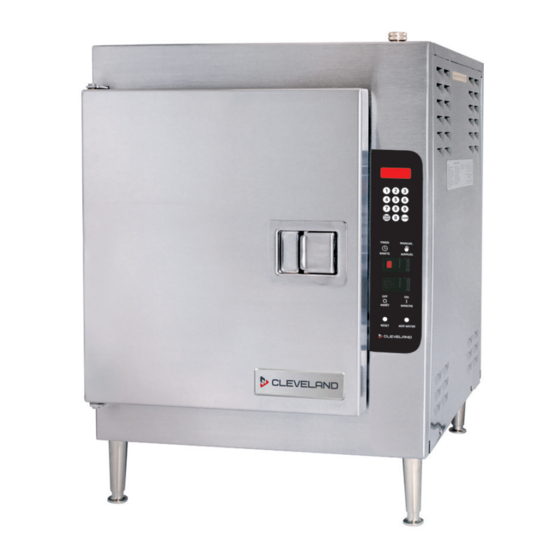

Cleveland SteamCraft 21CET8 Operation Installation Maintenance Manual

Electric convection steamers
Hide thumbs Also See for SteamCraft 21CET8:
Table of Contents

Advertisement

Quick Links

Visit www.clevelandrange.com to locate a
service or sales representative in your area.
SteamCraft
Electric Convection Steamers
Operation, Installation & Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
MO ELS:
21CET8
21CET16
Read the manual thoroughly.
!
Improper installation, operation or
maintenance can cause property
damage, injury or death.
For your future reference.
Model # ______________________________________
Serial # ___________ ____________________________
Part # - KE004034-2 C
September 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SteamCraft 21CET8 and is the answer not in the manual?

Questions and answers

Related Manuals for Cleveland SteamCraft 21CET8

Summary of Contents for Cleveland SteamCraft 21CET8

  • Page 1 Visit www.clevelandrange.com to locate a service or sales representative in your area. SteamCraft Electric Convection Steamers Operation, Installation & Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. MO ELS: 21CET8 For your future reference.
  • Page 2 Cleveland Range, LLC s’est efforcé à Cleveland Range, LLC se ha esforzado en unintentional errors and omissions. fournir des renseignements précis dans ce suministrar información precisa en este The information in this document may...
  • Page 3 FOR YOUR SAFETY / POUR VOTRE SÉCURITÉ / PARA SU SEGURIDAD FOR YOUR SAFETY POUR VOTRE SÉCURITÉ PARA SU SEGURIDAD Do not store or use Ne pas entreposer ou No guarde ni use gasolina gasoline or any other utiliser d'essence ou o cualesquiera otros flammable liquids and d'autres liquides ou...
  • Page 4 WARNING / AVERTISSEMENT / ADVERTENCIA Improper installation, operation, adjustment, alteration, Heavy / Lourd / Pesado service or maintenance can cause property damage, Team or mechanical lift. / Équipe ou remontée injury or death. Read the installation and operating mécanique. / Equipo o elevador mecánico. instructions thoroughly before installing, operating or servicing this equipment.

  • Page 5: Table Of Contents

    Operation, Installation & Maintenance MANUAL SteamCraft 21CET8 and 21CET16 Table of Contents Chapter ........................Page 1 General Safety ......................1 A. Laws, Codes, and Regulations ......................1 B. Operational Safety..........................1 2 Product Information ....................2 A. Product Information ..........................2 B.
  • Page 6 7 Installation ........................ 11 A. Selecting a location for the SteamCraft................... 11 B. Exhaust Hood Requirements......................11 C. Position and Level the SteamCraft ....................12 D. Water Connections for the SteamCraft.................... 12 E. Electric Connections for the SteamCraft..................14 F. Install the Free Air Vented Drain Line ....................15 G.

  • Page 7: General Safety

    5. Wear BOOTS appropriate to the work area to help protect feet, and to help prevent slips and falls. 6. Allow only qualified Cleveland Range authorized service representatives to service the appliance. 7. Use only factory authorized repair parts.

  • Page 8: Product Information

    • B. MODEL NUMBERS AND SERIAL NUMBERS 1. Cleveland Range, LLC assigns two product identification numbers to each appliance: a model number and a serial number. 2. Please provide this information when you contact Cleveland Range or a qualified Cleveland...

  • Page 9: Before Each Use

    CHAPTER 3 BEFORE EACH USE A. INSPECTING THE COOKING COMPARTMENTS 1. Before every steaming operation, inspect the cooking compartments and remove any food scraps or debris. See Chapter 5. 2. Inspect and clean the drains and drain screens before each use. See Figure 3-1. 3.

  • Page 10: Cooking

    CHAPTER 4 COOKING Press switches and keys with fingertips only. Injury and equipment damage can result from pressing switches and keys with anything else. A. QUICK REFERENCE START-UP AND SHUTDOWN SUMMARY INSTRUCTIONS The following START-UP and SHUTDOWN SUMMARY is for quick reference ONLY. •...

  • Page 11: Operating And Cooking Procedure

    B. OPERATING AND COOKING PROCEDURE Some foods drip juices. Use a solid catch pan under perforated pans when steaming food that may drip juices. Failure to use a catch pan can cause clogged drain screens and drains. 1. Inspect and clean the drain and the cooking compartment as required. See Chapter 3. 2.

  • Page 12: Dial Timer Control Panel

    E. DIAL TIMER CONTROL PANEL 1. TIMER The Dial Timer sets the operating time from 0 to • 60 minutes. Turn the knob clockwise until it points to the • required time. When the Timer reaches 0, a buzzer sounds for •...

  • Page 13: Keypad Timer Control Panel

    F. KEYPAD TIMER CONTROL PANEL 1. TIMER Display This four-digit display shows the minutes and seconds • remaining in the countdown. The display reads from zero (00:00) to 99 minutes and • 99 seconds (99:99). Pause (PAUS) appears when the count down is •...

  • Page 14: Cleaning

    Based on the water quality analysis done before installation, and the amount of use, make, and post a blowdown schedule. Contact your qualified Cleveland Range authorized service agency or Cleveland Range • for more information about maintenance scheduling, products, and services.
  • Page 15 6. Clean the interior of the compartment thoroughly. Do NOT use abrasive cleaning compounds or steel wool. • 7. Rinse the inside of the cooking compartments with clean water. 8. Clean the door gasket assemblies: a. Remove the door gasket assembly (see Figure 5-1) by holding the gasket assembly at the sides and lifting up and away from the door.

  • Page 16: General Information

    NEVER install damaged SteamCrafts. ALWAYS have qualified Cleveland Range authorized personnel install and service SteamCrafts. B. STANDS AND STACKING KITS Stands and Stacking Kits are available for the SteamCraft 21CET8 and 21CET16. Complete instructions are included with the kits. SteamCraft Model...

  • Page 17: Installation

    Allow for sufficient extra distance if a "high heat source" (e.g. a broiler) is located next to the SteamCraft. Contact Cleveland Range at 216-481-4900 or 1-800-338-2204 for recommendations. h. The location must NOT be directly over a drain. Do NOT install a SteamCraft directly over a drain because steam rising up out of the drain will adversely affect operation, hamper cooling air circulation, and damage electrical and electronic components.

  • Page 18: Position And Level The Steamcraft

    1. Move the SteamCraft into position. 2. Place a level along the bottom edge of the SteamCraft. 3. Use the adjustable legs of the SteamCraft or the adjustable legs of the Cleveland Range stand to level the SteamCraft front-to-back and side-to-side.
  • Page 19 Steam Generator Conditioned Cold Water Supply* Figure 3-3 Cleveland Range Separate Water Supply Arrangement “Conditioned” indicates water that has been filtered or treated by a Cleveland Range approved method to meet or exceed the water quality standards in the Warranty.

  • Page 20: Electric Connections For The Steamcraft

    3. Test the Water Supply Lines a. Make sure the Main External Power Switch is OFF. b. Remove the control side panel to inspect water connections inside the SteamCraft. c. Check all connections for proper tightness. d. Open the water supply valves. e.

  • Page 21: Install The Free Air Vented Drain Line

    F. INSTALL the FREE AIR VENTED DRAIN LINE DANGER DEATH, INJURY, EQUIPMENT and PROPERTY DAMAGE will result from improper installation of drain outlet lines. Install free air vented drain lines as described in this manual. NOTICE: Furnishing and installing drain lines and drainpipe is the responsibility of the Owner/Installer. NOTICE: Improper installation of drain outlet lines voids the SteamCraft Warranty.

  • Page 22: Install The Slide Racks

    Figure 3-5 Typical Drain Layout G. INSTALL the SLIDE RACKS 1. Refer to Figure 3-6. Each rack has four loops: two at the top and two at the bottom. 2. Hold the slide rack so the ends of the hanger loops are towards the cooking compartment wall, as shown in Figure 3-6.

  • Page 23: Installation Checklist

    H. INSTALLATION CHECK LIST Installation Check List TASK REFERENCE COMPLETED (Chapter) Preparation Check Operating Location Clearances Ch.7 & Spec Sheet • Test Supply Water Quality Ch.7 • Verify Electric Power Requirements. Rating Plate & Ch.7 • Verify Exhaust Hood Requirements Ch.7 &...

  • Page 24: Operating Tests

    CHAPTER 8 OPERATING TESTS The Operating Tests prepare newly installed, serviced or repaired SteamCraft 21CET8’s and 21CET16’s for operation. This section is divided into three sections: Setup and Blowdown Inspection, Keypad Timer Control Tests, and Dial Timer Control Tests. Read and understand the sections before beginning.

  • Page 25: Keypad Timer Control Tests

    The fill valve closes with a clicking sound. • The water level in the float/probe assembly cylinder stops rising about an inch from the • top of the cylinder. If the water continues to rise, STOP, shut down, and call your qualified Cleveland Range authorized Service Representative.
  • Page 26 Timed Test 2: Start timing upon pressing the MANUAL end of the TIMED/MANUAL Switch. Press the MANUAL end of the TIMED/MANUAL Switch a. Immediately: The condenser solenoid clicks open and condenser flow starts. • The heater coil turns on when the water level in the float/probe assembly cylinder is •...

  • Page 27: Dial Timer Control Tests

    Timed Test 3: Zero the Timer and start timing upon pressing the TIMED end of the TIMED/MANUAL Switch. Press the TIMED end of the TIMED/MANUAL Switch a. Immediately: The heater turns off and the condenser flow stops. • b. 30 Seconds: Steam stops entering the cooking compartment.
  • Page 28 • top of the cylinder. If the water continues to rise, STOP, shut down, and call your qualified Cleveland Range authorized Service Representative. Timed Test 2: Start timing upon pressing the MANUAL end of the TIMED/MANUAL Switch. Press the MANUAL end of the TIMED/MANUAL Switch Immediately: The condenser solenoid clicks open and condenser flow starts.
  • Page 29 Set the TIMED/MANUAL Switch to TIMED. Set the Timer for 10 minutes. As soon as the Timer dial is released, the steam generating cycle starts. The same sequence observed in 6 and 7 repeats, EXCEPT: The Dial Timer controls the cycle. •...

  • Page 30: Preventative Maintenance

    • Increase the frequency of maintenance as needed depending on use and water quality. • Contact your qualified Cleveland Range authorized service agency or Cleveland Range for more • information about maintenance scheduling, products, and services. B. Maintenance and Service Records 1.
  • Page 31 2. SteamCraft Descaling Procedure Using the Descaling Pump System Cleveland Range recommends that your service agency descales your 21CET8 and • 21CET16. If you have trained and skilled in-house maintenance personnel, you may wish to discuss • purchasing Descaling Pump System P/N: 1071421 for use with Dissolve® Descaler Solution P/N 106174 with your sales representative or service agency.
  • Page 32 DANGER The liquid solution in Cleveland Range Descaler Solution Part No. 106174 or 1061741 can be harmful if not handled properly. Follow these basic safety rules for handling and using this product. Instructions and warnings on container labels supersede all other warnings and instructions.

  • Page 33: Yearly Maintenance

    Note: Some descaling solution will flow from drain of Ultra 10 gas steamers • Adding extra water to generator raises descaling solution to higher than normal water fill • level, allowing descaling solution to clean sensors and surfaces above normal water fill level 8) Let descaling solution soak in generator for 1 hour 9) After 1 hour, turn ON/OFF switch OFF to start 3 minute Automatic Blowdown...

  • Page 34: Troubleshooting

    “Remedy / Reference” (right column) lists fixes for problems from easiest to hardest. • “Notes” in “Remedy / Reference column are at end of the Troubleshooting Guide. • ATTEMPTING TO REPAIR OR CORRECT PROBLEMS REQUIRING A QUALIFIED CLEVELAND RANGE AUTHORIZED SERVICE REPRESENTATIVE VOIDS THE WARRANTY Trouble Shooting Guide PROBLEM...
  • Page 35 Water probes are dirty Turn OFF water supply to steamer and steam ports into cooking descale steamer manually with compartment Cleveland Range approved descaler See Operators Manual for instructions If condition persists see Note 1 See Warning under Inoperative controls or solenoid...
  • Page 36 NOTES 1. If the problem is inside the appliance, call a qualified Cleveland Range authorized service representative or Cleveland Range. (Please have the model number and serial number ready when calling.) Cleveland Range will not pay for warranty repairs by unauthorized maintenance and repair centers.
  • Page 37 Inspect the drain(s) before each use and clean them if needed. • Failure to follow these precautions can cause burns, scalds, and equipment damage. 10. Order replacement descale caps and gaskets from a Cleveland Range authorized maintenance and repair center.
  • Page 38 +1-800.338-2204 WWW.CLEVELANDRANGE.COM Every new piece of Welbilt Foodservice equipment comes with KitchenCare® and you choose the level of service that meets your opera onal needs from one restaurant to mul ple loca ons StarCare – Warranty & life me service, cer fied OEM parts, global parts inventory, performance audited ExtraCare —...
