CHAPTER 8 • TOOLS
80

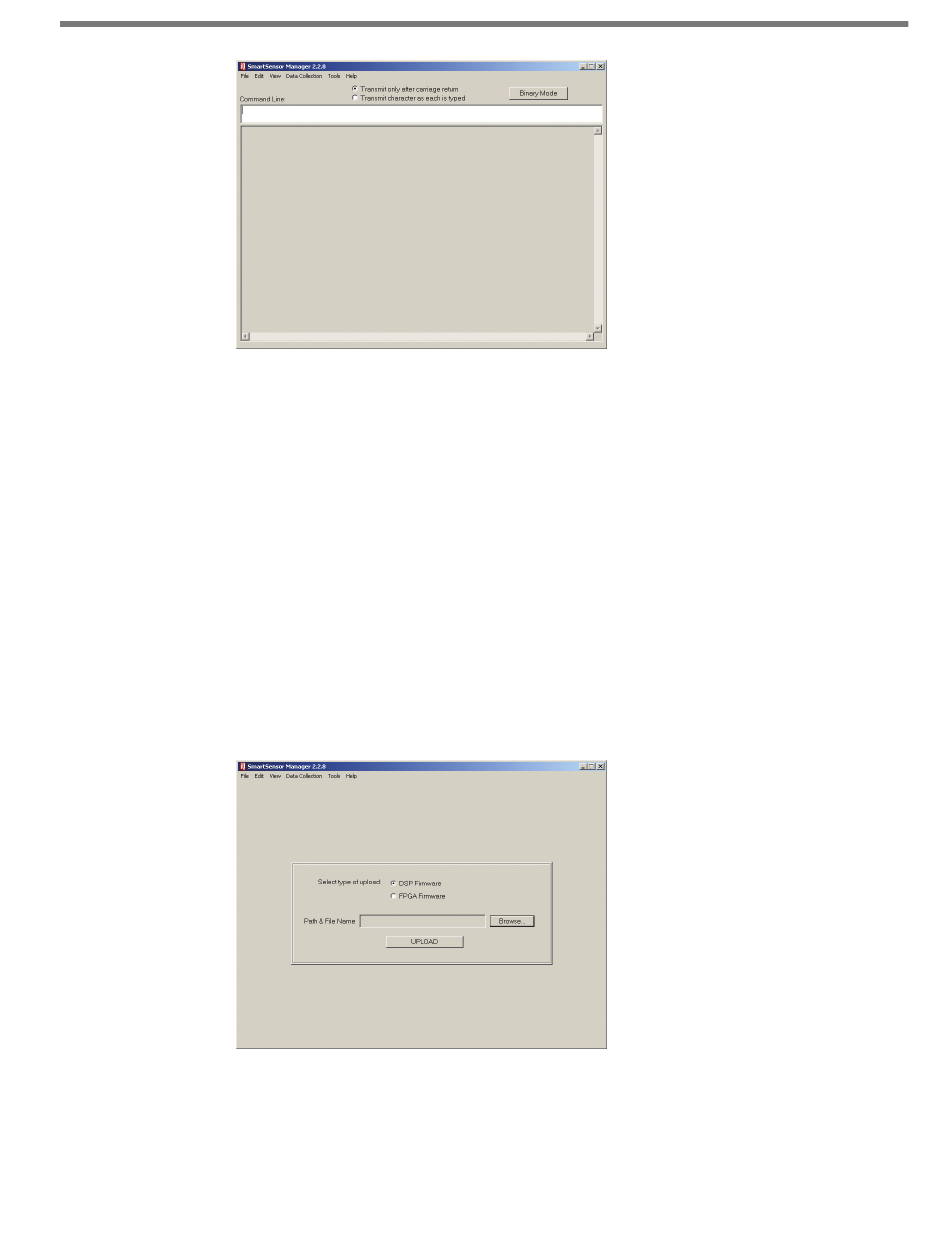

Figure 8.1 – Hyperterminal
Firmware Upload
When you first connect, the program will prompt you to update your firmware if it sees a
discrepancy between the software and firmware versions, but you can also go at any time
to Tools > Firmware Upload and select a firmware file (.hex) stored on your computer to
upload to your sensor (see Figure 8.2).
Before using something other than the most current firmware version, please contact Wa-
vetronix Technical Services for assistance.
To upload firmware, click the appropriate radio button for either DSP or FPGA firmware.
Click the Browse . . . button to locate the firmware stored on your computer; click the UP-
LOAD button to transfer the firmware to the sensor.
Figure 8.2 – Firmware Upload
