PC Com Port Settings – By default, SSM is set to automatically detect PC com port &

baud rate settings. To manually configure these settings, click the Specify PC com port

& baud rate settings radio button. This will activate the Port # and Baud Rate (bps)

drop-down lists.

Additional Response Wait Time – By default, SmartSensor Manager waits a few mil-

liseconds to receive a response from the sensor before timing out and displaying a

communication error message. You can add additional milliseconds to the response

wait time to give the program more time to make a connection. Click the Use an ad-

ditional: check box to activate the milliseconds text field and enter the number of addi-

tional milliseconds SmartSensor Manager should wait for a response from the sensor.

SmartSensor Network Protocol – These options can be used to identify sensors that

are part of a multi-drop network. The Simple protocol option refers to sensors that are

not part of a multi-drop environment. If the sensor is part of a multi-drop network,

SmartSensor Manager can either auto-detect the multi-drop ID, or you can enter the

four-digit ID. Clicking the Use Multidrop Protocol... Connect Directly to ID: radio

button will activate the text box so you can enter the ID number.

Time Synchronization – Click the check box to have SmartSensor automatically syn-

chronize with the PC clock.

Click on the check box at the bottom of the Advanced Connection Settings page to use the

new settings as default. Click OK to save the new settings or Cancel to return to default;

both buttons will return you to the Serial Connection page. The new settings will be re-

flected in the message bar at the bottom of the page.

Modem Connection

Clicking the Modem (Phone #) radio button on the New Connection page and then click-

ing OK will allow you to connect to the SmartSensor using a modem. The Modem Connec-

tion page has a text box in which you can enter the phone number for the sensor's modem

(see Figure 4.4).

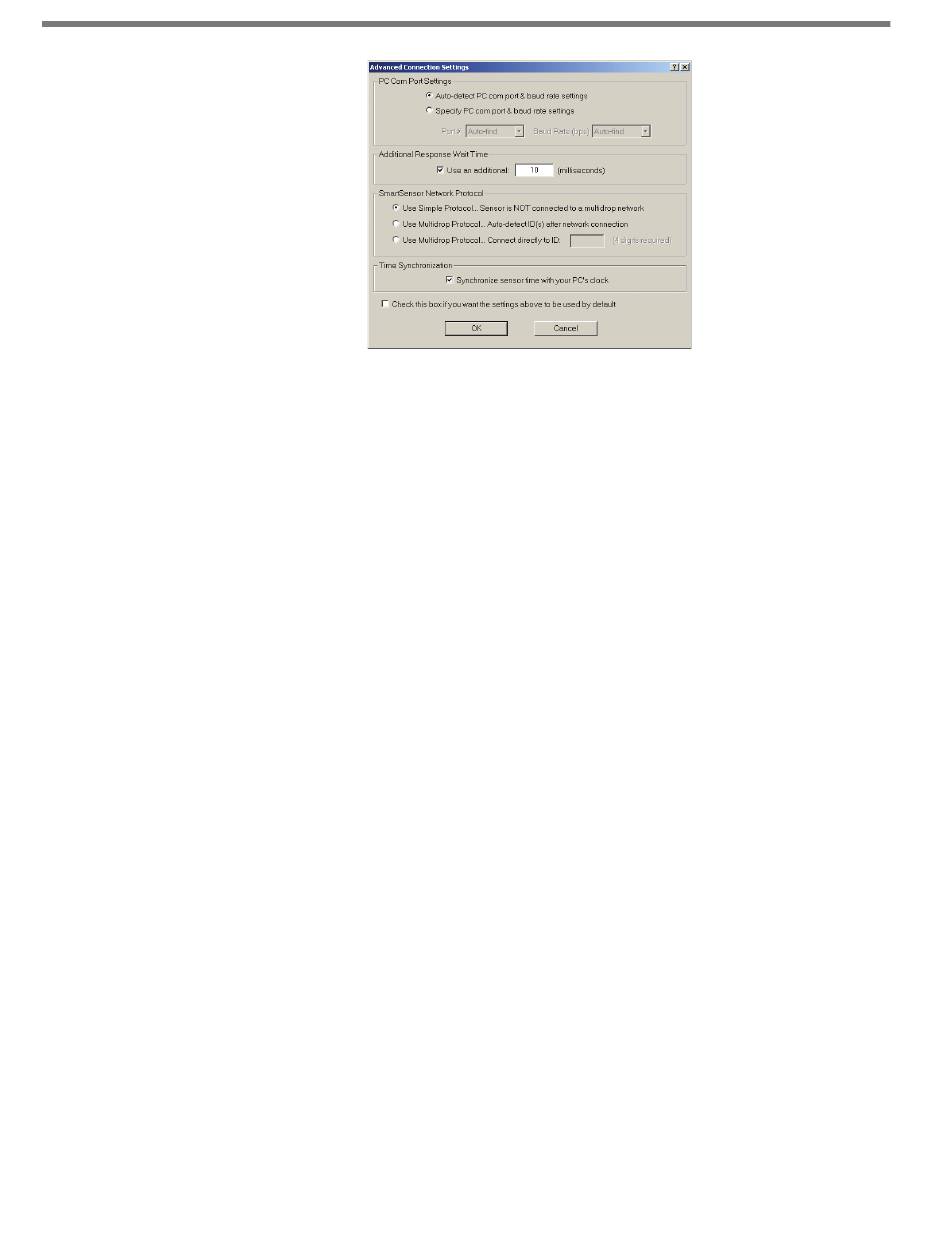

Figure 4.3 – Advanced Connection Settings
