CHAPTER 6 • LANE SETUP
60
Note
The default starting point of 5 is also the largest starting point allowed. If you enter a
value larger than 5 the default starting point of 5 will be used. If you are managing the
gain, you should generally change the starting point to a 3 or 4.
Lane Configuration – Manual
If the sensor is unable to automatically configure itself to your satisfaction, you can manu-
ally configure it by adding, removing or adjusting lanes, lane dividers and lane centers.
To make changes in Manual mode:
1
With the Lane Configuration page open, select the Manual button; the buttons in the
toolbar on the right of the screen will change from gray to black (see Figure 6.2).
2
Selecting a button in the toolbar will allow you to make changes using the roadview
window on the left.
3
Once you've made the necessary adjustments, hit Finished to save your changes.
Adjust Lanes
The Adjust Lanes button allows you to click your cursor on any visible shoulder (gray line),
lane divider (white line) or lane center (pink line) and drag it to the desired position (see
Figure 6.3). The cursor will change from an arrow to a hand when it is positioned over a
"draggable" line. Lane centers (pink lines) only appear when the cursor is placed directly
over them. To adjust the lane center, click and hold the mouse and move the line up or down
on the screen, but only within the area between the shoulders. Notice that shoulders, divid-
ers, or centers cannot be dragged past each other.

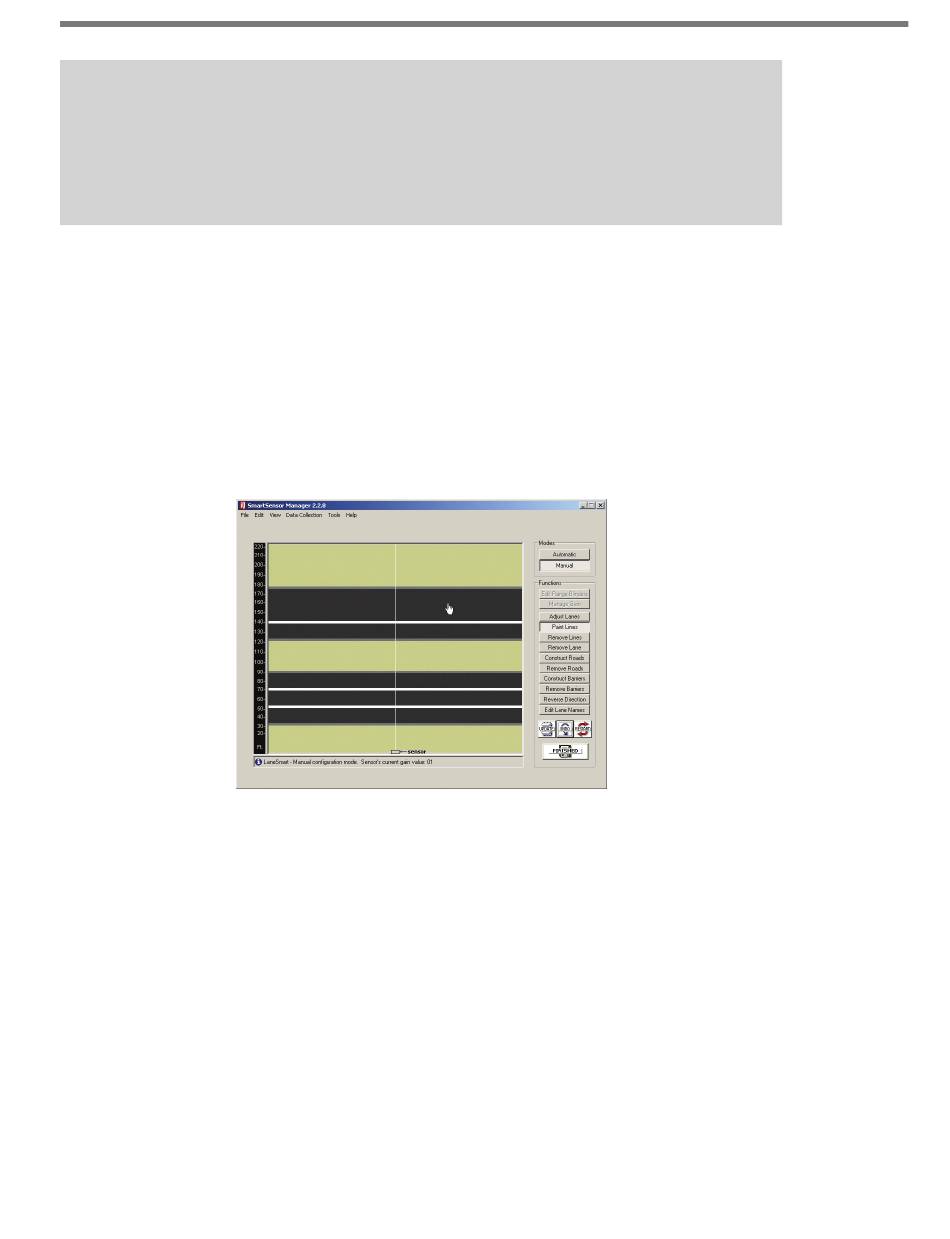

Figure 6.2 – Manual Lane Configuration
