Aligning the Sensor to the Roadway
Follow the steps below to correctly align the SmartSensor V (see Figure 1.4):
1
Aim the front of the sensor at the center of the detection area. Refer to Figure 1.1 as an
illustration of where to aim the sensor.
2
Adjust the side-to-side angle to within approximately ±2° of perpendicular to the flow
of traffic.
3
Tighten mounting bracket bolts.
Applying Silicon Dielectric Compound
Use the following steps to correctly apply the silicon dielectric compound:
1
Tear the tab off the tube of silicon dielectric compound.
2
Squeeze about 25% of the silicon into the connector at the base of the SmartSensor V.
Be sure to wipe off any excess compound.
Connecting the 8-conductor Cable
1
Attach the cable connector to the 10-pin connector at the base of the SmartSensor V
as shown in Figure 1.6. The sensor connector is keyed to ensure proper connection;
simply twist the connector clockwise until you hear it click into place.
2
Strap the cable to the pole or run it through a conduit to avoid undue movement from
wind and reduce cable strain.
CHAPTER 1 • INSTALLING THE SMARTSENSOR V

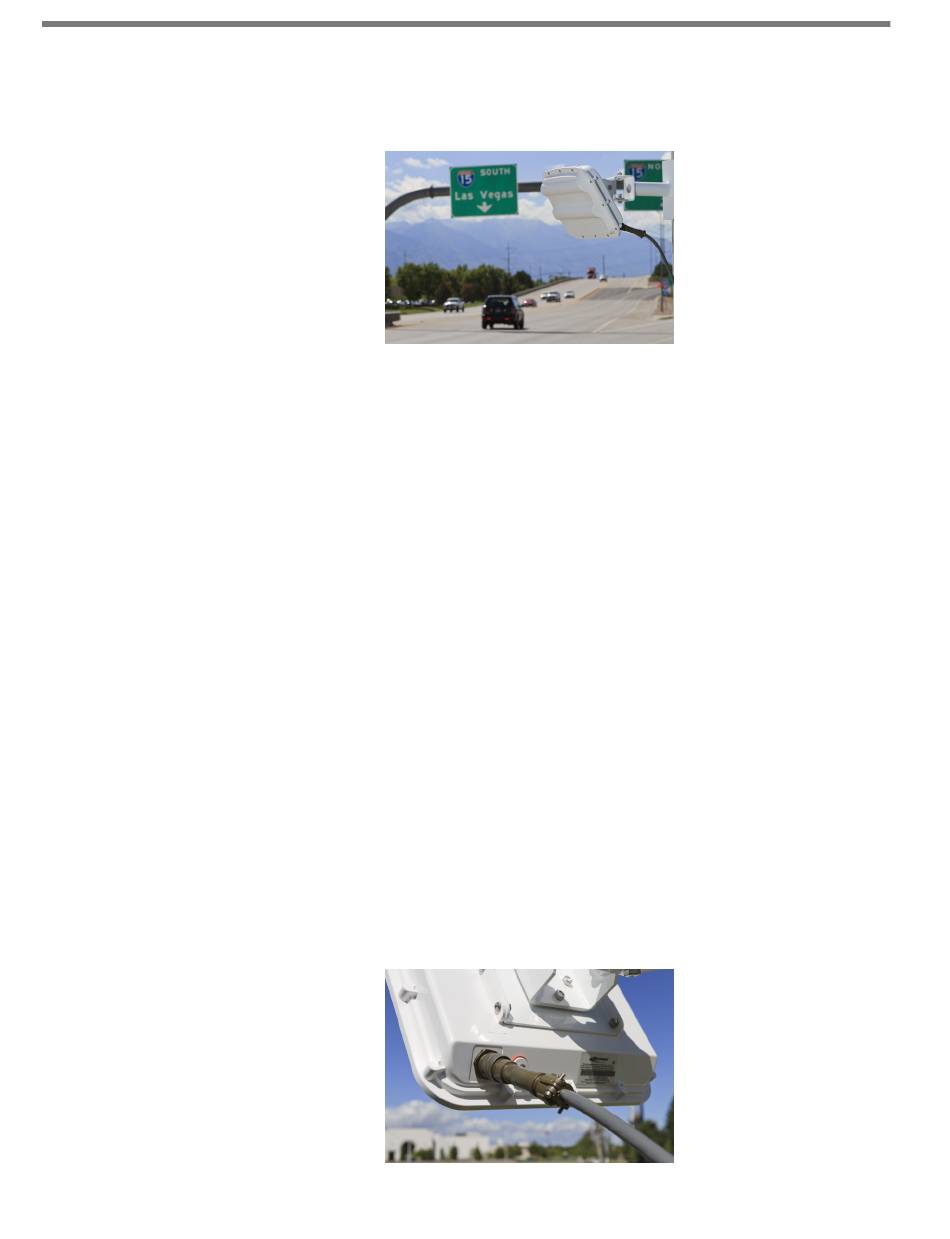

Figure 1.4 – Aiming the SmartSensor
Figure 1.5 – Attached Cable
