All of the modules discussed in the next few sections will go side by side on a DIN rail in
the main traffic cabinet, as shown in Figure 2.4.
Black (Line)
Green (Ground)
White (Neutral)
Note
An authorized electrical technician should perform installation and operation of
this unit. Persons other than authorized and approved electrical technicians should
NOT attempt to connect this unit to a power supply and/or traffic control cabinet,
as there is a serious risk of electrical shock through unsafe handling of the power
source. Extreme caution should be used when connecting this unit to an active
power supply.
Wiring a Circuit Breaker and Switch
The Click 210 is a compact circuit breaker DIN rail device designed to interrupt an electric
current under overload conditions. The breaker is trip-free and can be easily reset after a
current interruption by pushing the reset button.
To add a Click 210 circuit breaker and switch (see Figure 2.4):
1
Mount the Click 210 onto the DIN rail.
2
Connect power in to either side of the module.
3
Connect power out to the other side.
CHAPTER 2 • CONNECTING POWER AND SURGE PROTECTION
Earth
Ground

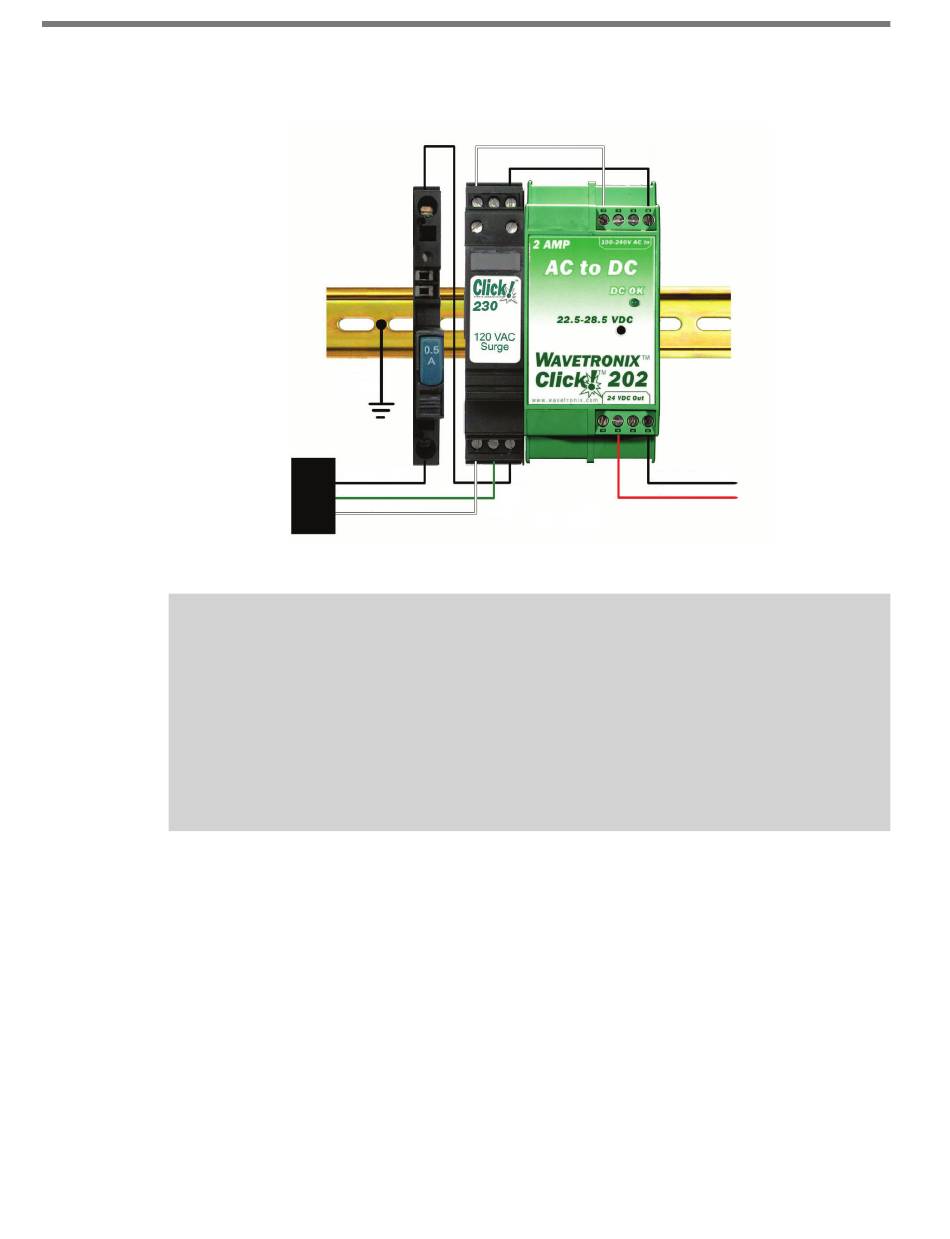

Figure 2.4 – Power Plant
Black (Ground)
Red (+24 VDC)
