CHAPTER 7 • DATA COLLECTION
78
can tell which lane you're working with, the lanes are numbered under the Sensor Log File
heading, with the lane closest to the sensor at the top of the list. While multiple lanes may
have the same direction, no two lanes may have both the same direction and number, unless
that number is 0. You can call multiple lanes 0 in order to group them together (see Figure
7.5).

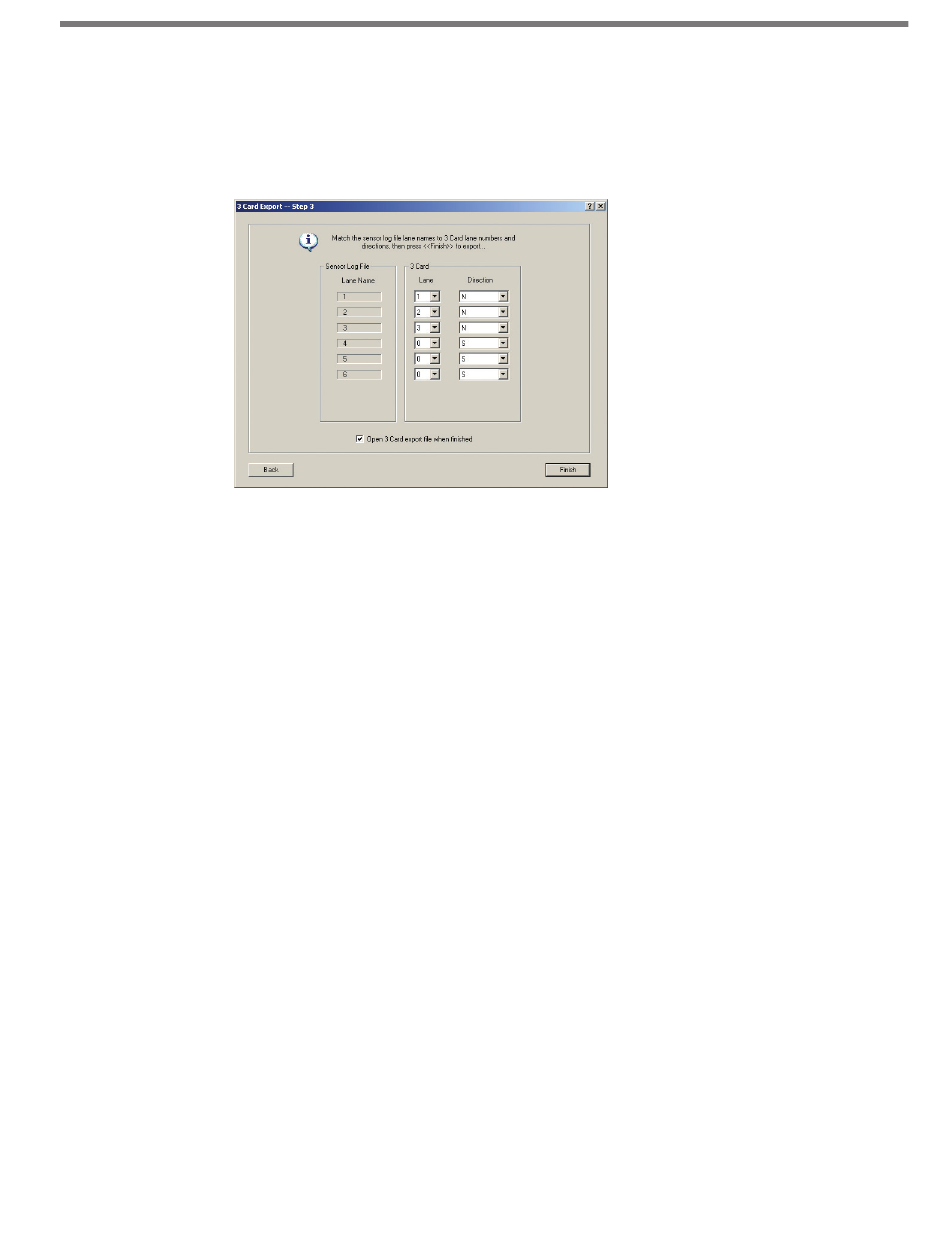

Figure 7.5 – Step 3 of Export Process
Click Finish to create the 3 Card file. (To see the file immediately, click the Open 3 Card
export file when finished box.) SmartSensor Manager will take the entered information
and format the file according to 3 Card standards.
