HERO XPULSE 200T PROGRAMMED FI Manual page 54

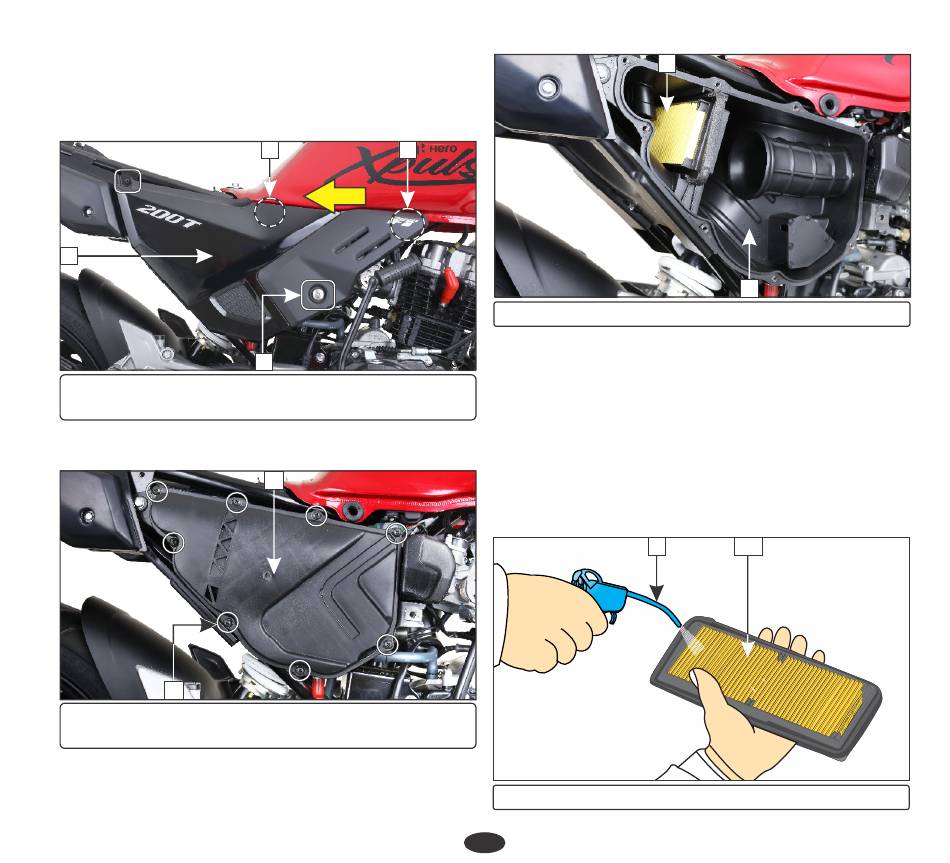

Remove the right side cover screws (1), side
•
cover (2) by releasing the lug from the
grommet (3) and slide as per the direction
to release tab from the slot (4).
2
(1) Right side cover screws (2) Side cover
(3) Lug/Grommet
Remove the air cleaner cover screws (5)
•
and the cover (6).
5
(5) Air cleaner cover screws
(6) Air cleaner cover
Remove the air cleaner element (7) from
•
air cleaner housing (8).
3 4
1
(4) Tab/Slot
6
(7) Air cleaner element (8) Air cleaner housing
Air cleaner element cleaning
•
Clean the element by tapping it gently to
•
loosen dust.
Blow away the remaining dust by forcing
•
compressed moisture-free air using an air
nozzle (9) from the housing side (10) of
the air cleaner.
Replace the air cleaner element if it is
•
excessively dirty, torn or damaged.
9
(9) Air nozzle
51
7
8
10
(10) Housing side
