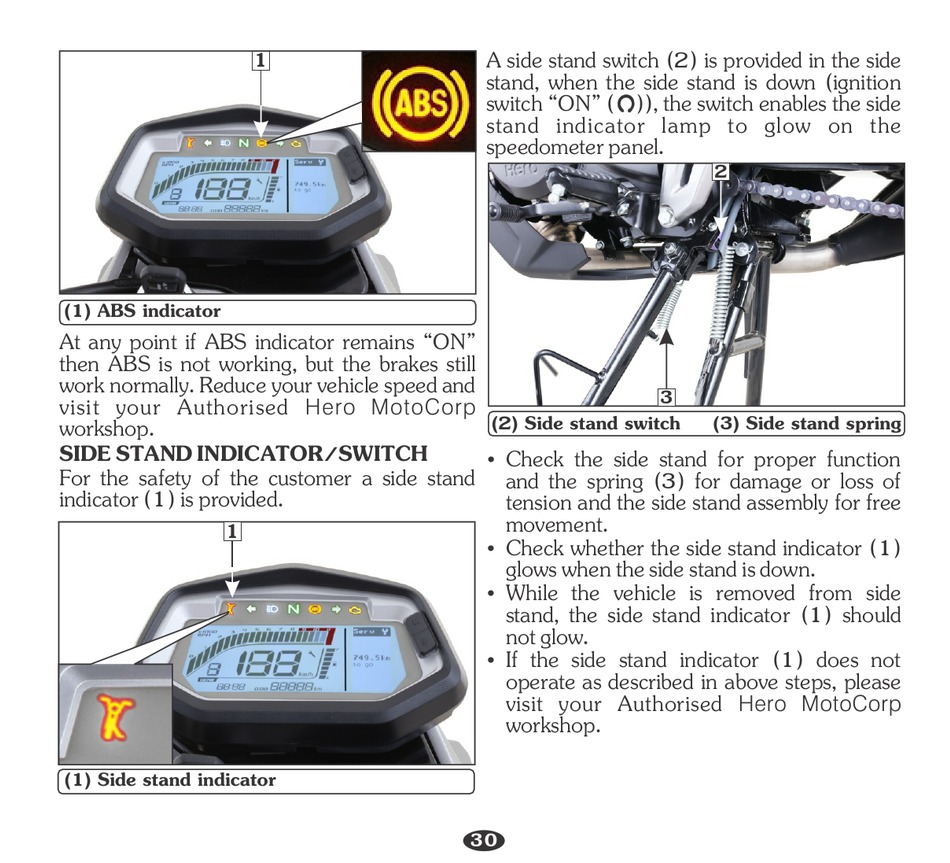

(1) ABS indicator
At any point if ABS indicator remains "ON"
then ABS is not working, but the brakes still
work normally. Reduce your vehicle speed and
visit your Authorised
workshop.

SIDE STAND INDICATOR/SWITCH

For the safety of the customer a side stand
indicator (1) is provided.
1
(1) Side stand indicator
1
Hero MotoCorp
A side stand switch (2) is provided in the side
stand, when the side stand is down (ignition
switch "ON" ( )), the switch enables the side
stand indicator lamp to glow on the
speedometer panel.
(2) Side stand switch
Check the side stand for proper function
Ÿ
and the spring (3) for damage or loss of
tension and the side stand assembly for free
movement.
Check whether the side stand indicator (1)
Ÿ
glows when the side stand is down.
While the vehicle is removed from side
Ÿ
stand, the side stand indicator (1) should
not glow.
If the side stand indicator (1) does not
Ÿ
operate as described in above steps, please
visit your Authorised
workshop.
30
2
3
(3) Side stand spring
