Commissioning

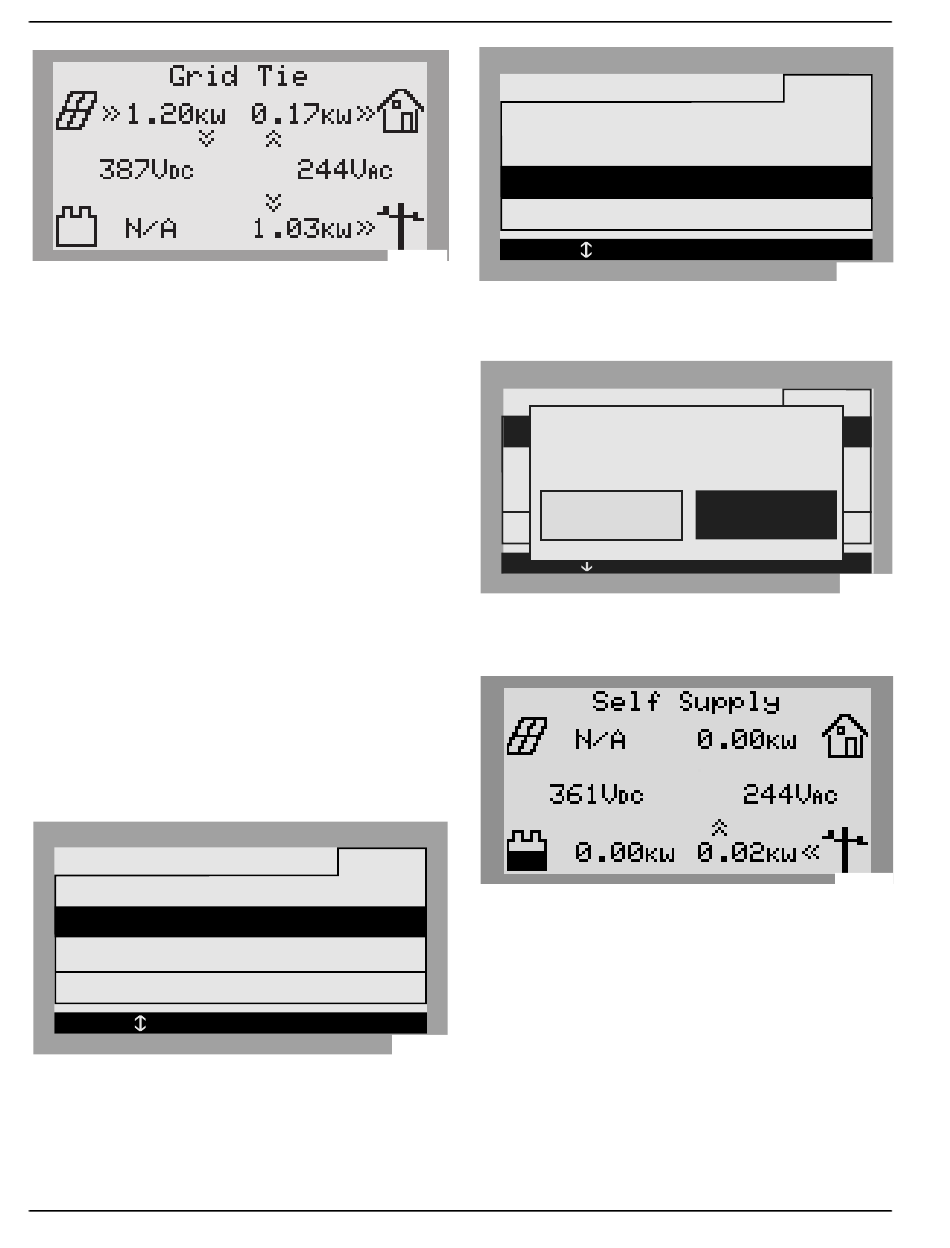

Figure 6-2. Inverter Power-Up
NOTE: If grid power is temporarily not available to com-
mission the PWRcell system and the system includes a
PWRcell Battery, performing what is called a "Blackstart"
can be used to start the system from the battery. See the
Generac PWRcell Battery Installation and Owner's Man-
ual for instructions.
NOTE:
Generac does not currently support autono-
mous, off grid installations with PWRcell equipment.

Select Inverter System Mode

NOTE: See
System Modes Overview
tion.
NOTE: For systems with a PWRcell Battery, select a
backup system mode. Do not select Grid Tie mode.
To select a system mode:
1. See 6-2. While viewing the home screen
Figure
press the center button.
2. See Figure 6-3. A list of system modes will be dis-
played with the current mode marked with an aster-
isk.
NOTE: The list of system modes may not include all
those shown in Figure 6-3.
System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT
Figure 6-3. Selecting System Modes (1 of 4)
3. See Figure 6-4. Use the up and down arrows to
highlight the desired mode and press the center
button to select.
26
010006
4. See
for more informa-
5. See
Menu

Configure Inverter Settings

Configuring Systems with PWRcell Batteries

Systems with the PWRcell Battery must have the "EnaIs-
landing" setpoint set to 'on' in order to enter Island Mode
for backup. This setpoint is accessible through the Mod.
009966
Settings menu via the inverter device page.
Verify the PWRcell Inverter protected loads disconnect is
in the ON position.
Verify Battery Disconnect Switch on the PWRcell Battery
is ON.
Installation and Owner's Manual for Generac PWRCell Inverter
System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT
Figure 6-4. Selecting System Modes (2 of 4)
Figure 6-5. Arrow right and press the center
button to select Confirm.
System Mode
SA
Enable
GRd. Settings
SElibrate CTs
Cancel
CLEPn: 00010003XXXX
< EXIT SCROLL > NEXT • SELECT
Figure 6-5. Selecting System Modes (3 of 4)
6-6. Verify the mode listed at the top of
Figure
the home screen is the desired mode.
Figure 6-6. Selecting System Modes (4 of 4)
