Section 7: System Operation

General Information

The PWRcell system is a flexible, highly customizable
system that can be configured in a number of ways to
meet customer needs. Correct system configuration
requires selecting the right equipment and the correct
system mode for the system.
All REbus devices are configured and controlled through
the Generac PWRcell Inverter. Connected devices will
appear on the LCD display.

Operation and User Interface

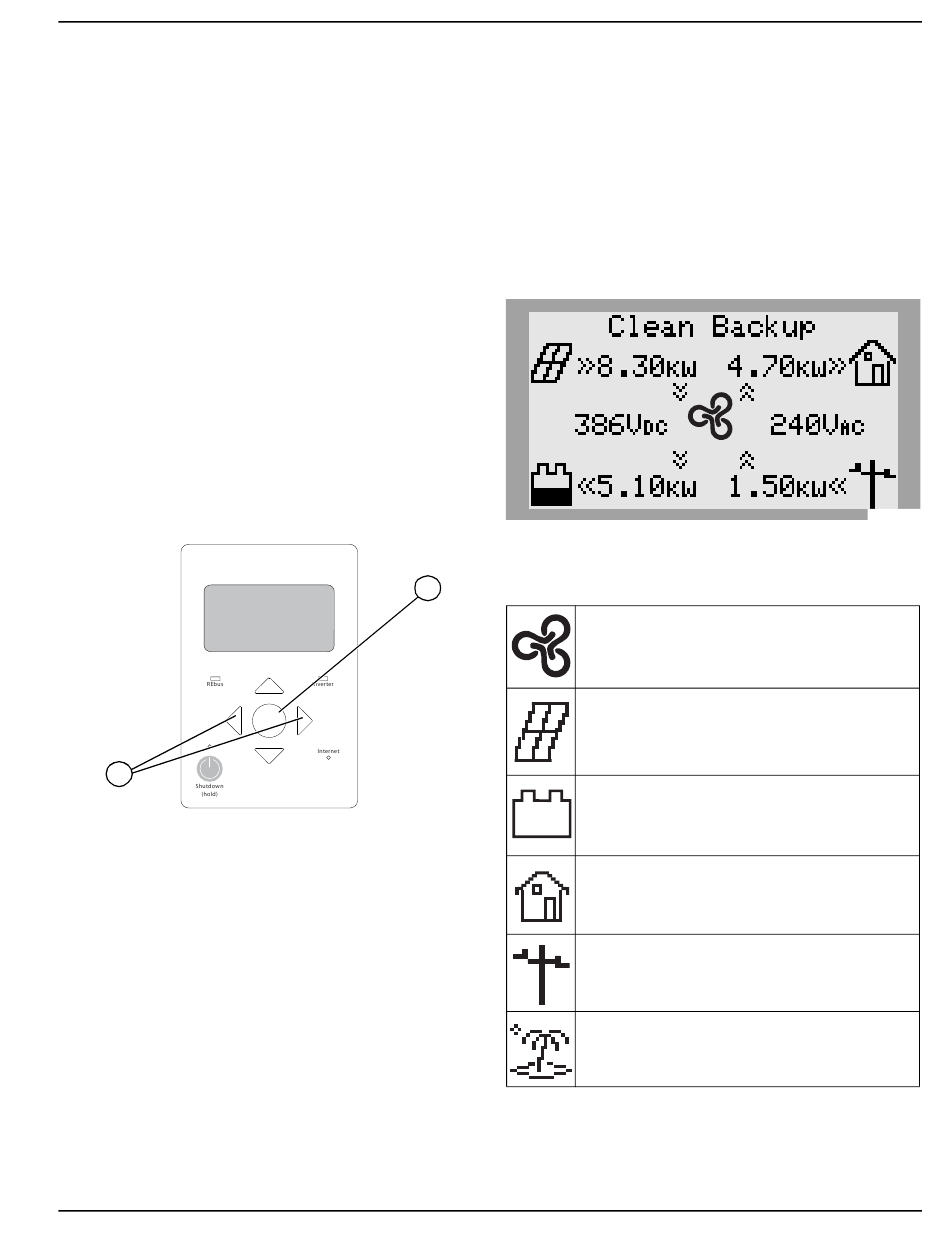

See Figure 7-1. Generac PWRcell is controlled through
the PWRcell Inverter control panel. The inverter control
panel is used for adjusting system settings and for
interacting with devices.
•
Use left and right arrows (A) to navigate between
pages.
Press center button (B) on a device page to select or
deselect device settings.
A
Figure 7-1. Inverter Control Panel
Installation and Owner's Manual for Generac PWRCell Inverter

Home Screen

See Figure
screen illustrates the flow of power in the system. As
power is generated, stored, and consumed, animated
arrows indicate the flow and direction of power. System
AC and DC voltage levels are displayed near the center
of the screen. The current system mode is displayed at
the top of the screen.

Home Screen Icons

B
Represents the PWRcell Inverter.
Represents the cumulative production of the solar
array connected to PV Links.
009894
Represents PWRcell Batteries, if installed.
Represents house loads including backup loads.
Represents the Utility Grid when CTs are suc-
cessfully calibrated. This icon will not appear on
the home screen if CTs are not calibrated.
Represents the system in Island Mode supporting
backup loads after a utility service interruption.
7-2. The power flow display on the home
Figure 7-2. Home Screen
