Commissioning
Connect PWRcell Inverter to AC
Power
IMPORTANT: If multiple PWRcell Inverters are installed,
refer to
Commissioning Multiple Inverter Systems
place of this commissioning step. Do not turn on AC
power to more than one inverter at a time.
Turn ON main AC backfeed to power-up the inverter.
See 6-2. On power-up, the home screen will
Figure
appear on the control panel LCD with the system mode
listed at the top of the home screen.
Grid Tie
N/A
0V
DC
N/A

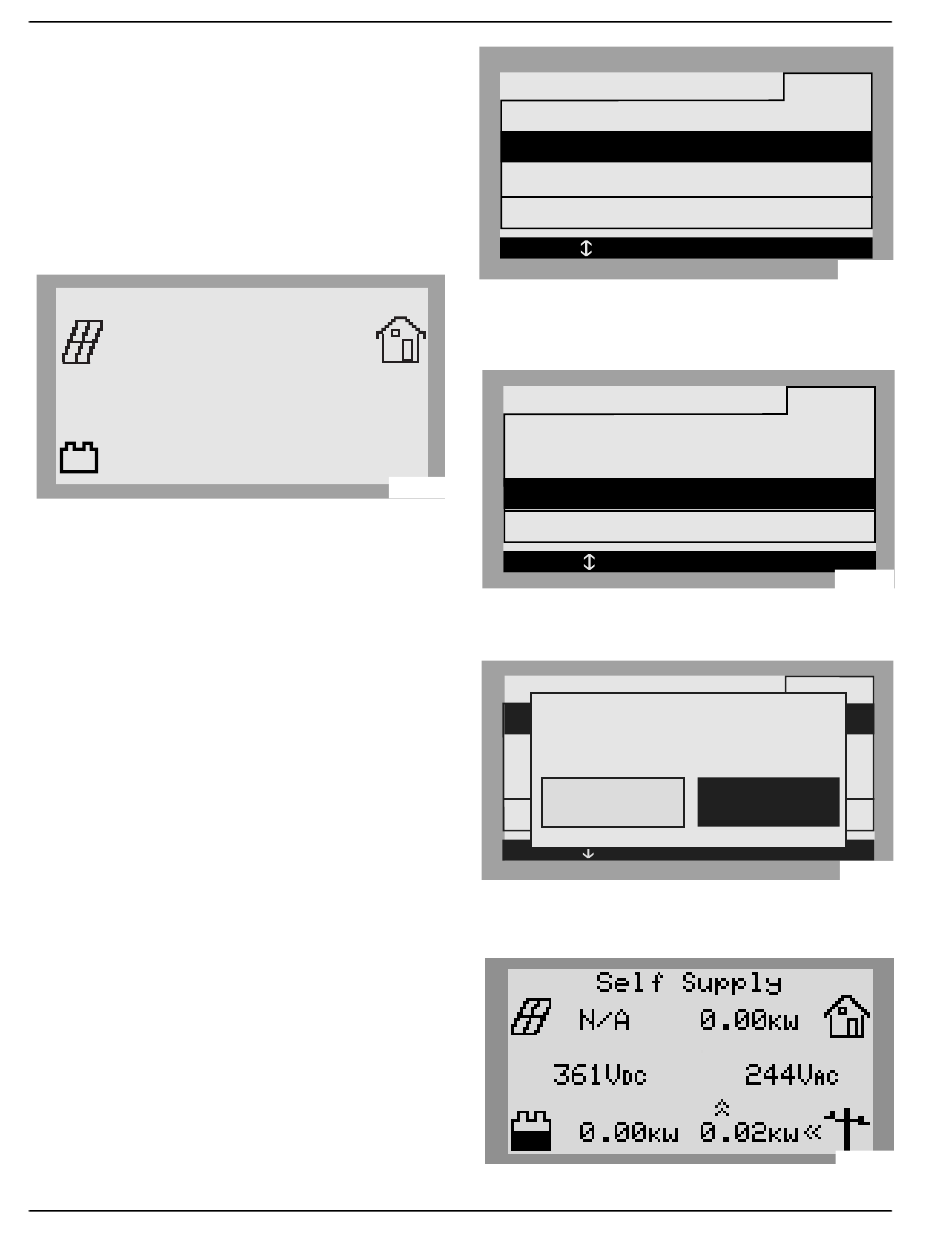

Figure 6-2. Inverter Power-Up
NOTE: If grid power is temporarily not available to com-
mission the PWRcell system and the system includes a
PWRcell Battery, performing what is called a "Blackstart"
can be used to start the system from the battery. See the
Generac PWRcell Battery Installation and Owner's
Manual for instructions.
NOTE:
Generac does not currently support autono-
mous, off grid installations with PWRcell equipment.

Select Inverter System Mode

NOTE: See
System Modes Overview
tion.
NOTE: For systems with a PWRcell Battery, select a
backup system mode. Do not select Grid Tie mode.
To select a system mode:
1. See Figure 6-2. While viewing the home screen
press the center button.
2. See
Figure 6-3. A list of system modes will be dis-
played with the current mode marked with an aster-
isk.
NOTE: The list of system modes may not include all
those shown in Figure 6-3.
30
in
0.17kW
244V
AC
013105
for more informa-
System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT
Figure 6-3. Selecting System Modes (1 of 3)
3. See Figure 6-4. Use the up and down arrows to
highlight the desired mode and press the center
button to select.
System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT
Figure 6-4. Selecting System Modes (2 of 3)
4. See Figure 6-5. Arrow right and press the center
button to select Confirm.
System Mode
SA
Self Supply
GRd. Settings
SElibrate CTs
Cancel
CLEPn: 00010003XXXX
< EXIT SCROLL > NEXT • SELECT
Figure 6-5. Selecting System Modes (3 of 3)
5. See 6-6. Verify the mode listed at the top of
Figure
the home screen is the desired mode.
Figure 6-6. Selecting System Modes (4 of 4)
