Electrical Connections

Verifying Connectivity

NOTE: Use a laptop or other device to verify the Internet
connection on the field installed Cat 5 cable.
For a successful connection the following must be valid:
•
The Internet LED on the control panel must be lit.
NOTE: Wait at least 5 minutes after the blue light illumi-
nates to be certain the connection is stable.
•
The field installed Cat 5 cable must have a "hot"
signal. Check male RJ45 ends for proper
installation and confirm correct Ethernet ports at
the inverter and router.
•
The REbus Beacon must have a device page on
the inverter control panel.
•
See 5-8. The REbus Beacon must have a
Figure
valid IP Address. Logon to the Beacon Installer
Configuration Tool to verify. See
Configuration Tool

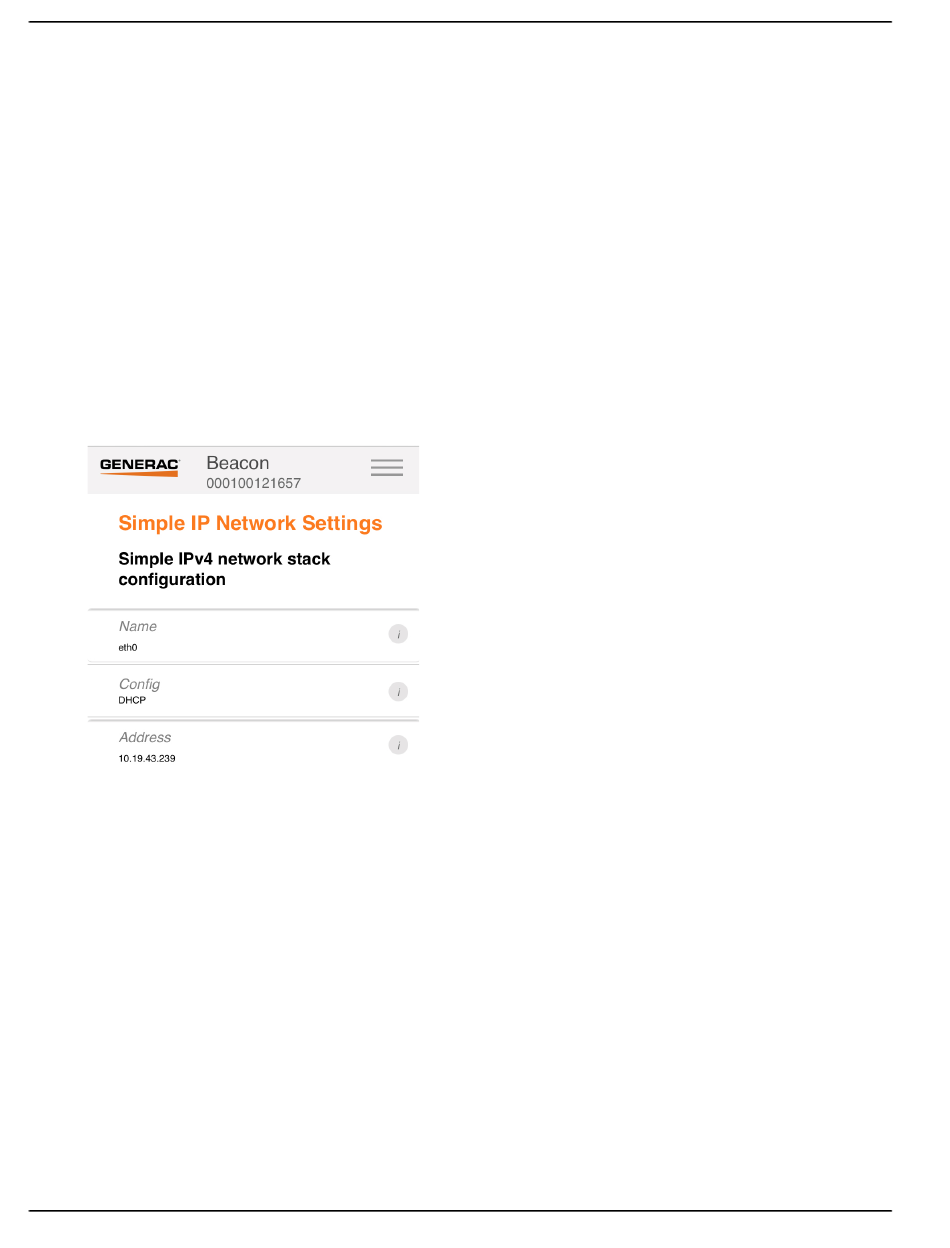

Figure 5-8. Verify IP Address
NOTE: After first installing, the REbus Beacon may need
to receive automated updates to its firmware. This may
cause the blue Internet LED to turn off while the Beacon
reboots, and this will interrupt the Installer Tool connec-
tion momentarily.
