Now that the clock is set, we will display the time on our LCP. Go to parameter
024 and change it to the value "Date and Time Readout". Verify that the time is
now displayed correctly.
The last step is to set up your time based actions. The golf course owner wants
to water one hole at a time for one hour each. For our lab, 1 minute will represent

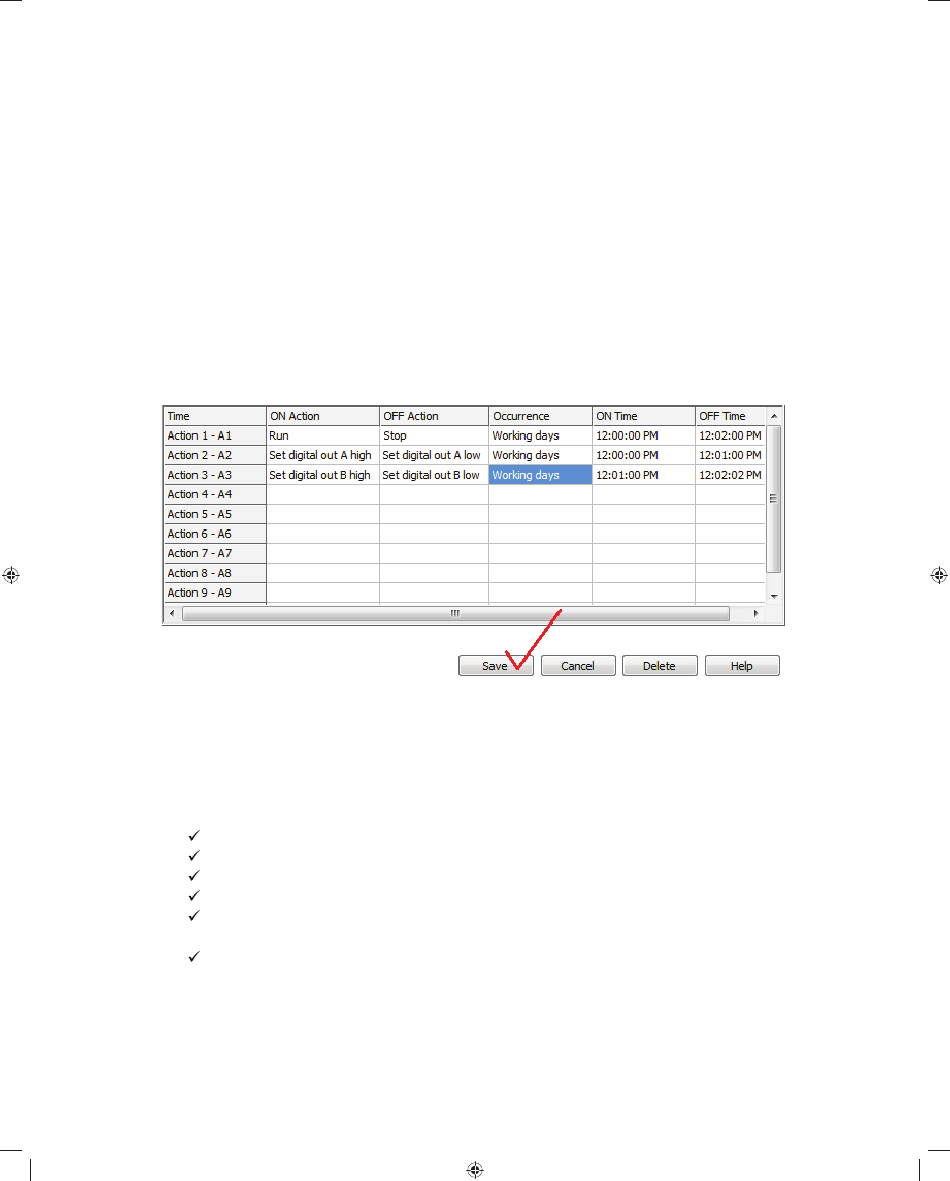

one hour. Click the "Timed Actions" wizard in MCT-10 and set up the schedule to
match what is shown below. Hit the "Save" button after you have made the
changes.
minutes from now so when the time passes, the events will occur.
View the display and watch the time
The drive should start running as the time passes your "On Time"
The green LED (light 1) lights up to indicate that the drive is "Running"
The red LED (light 3) light up indicating hole # 1 is watering
One minute later, light 3 shuts off and light 4 comes on indicating that hole
# 2 is watering
One minute later the drive shuts down and all LED's shut off indicating the
watering cycle has ended
