Danfoss VLT AQUA Drive Manual page 11

FC Series VFD Terminals
Power Terminals:
Line: 91, 92 & 93 (L1, L2 & L3)
Motor Connections: 96, 97 & 98 (U, V & W)
Chassis Ground: 95
88 & 89
DC BUS:
81 & 82
Braking Terminals:
Digital Inputs: 18, 19, 27, 29, 32 & 33 Digital Outputs: 27 & 29
Analog Inputs: 53 & 54 Analog Output: 42
Control Power Supplies:
24 volt supply on terminals 12 & 13
10 volt supply on terminal 50
Power supply commons (0V) are terminals 20, 39 & 55

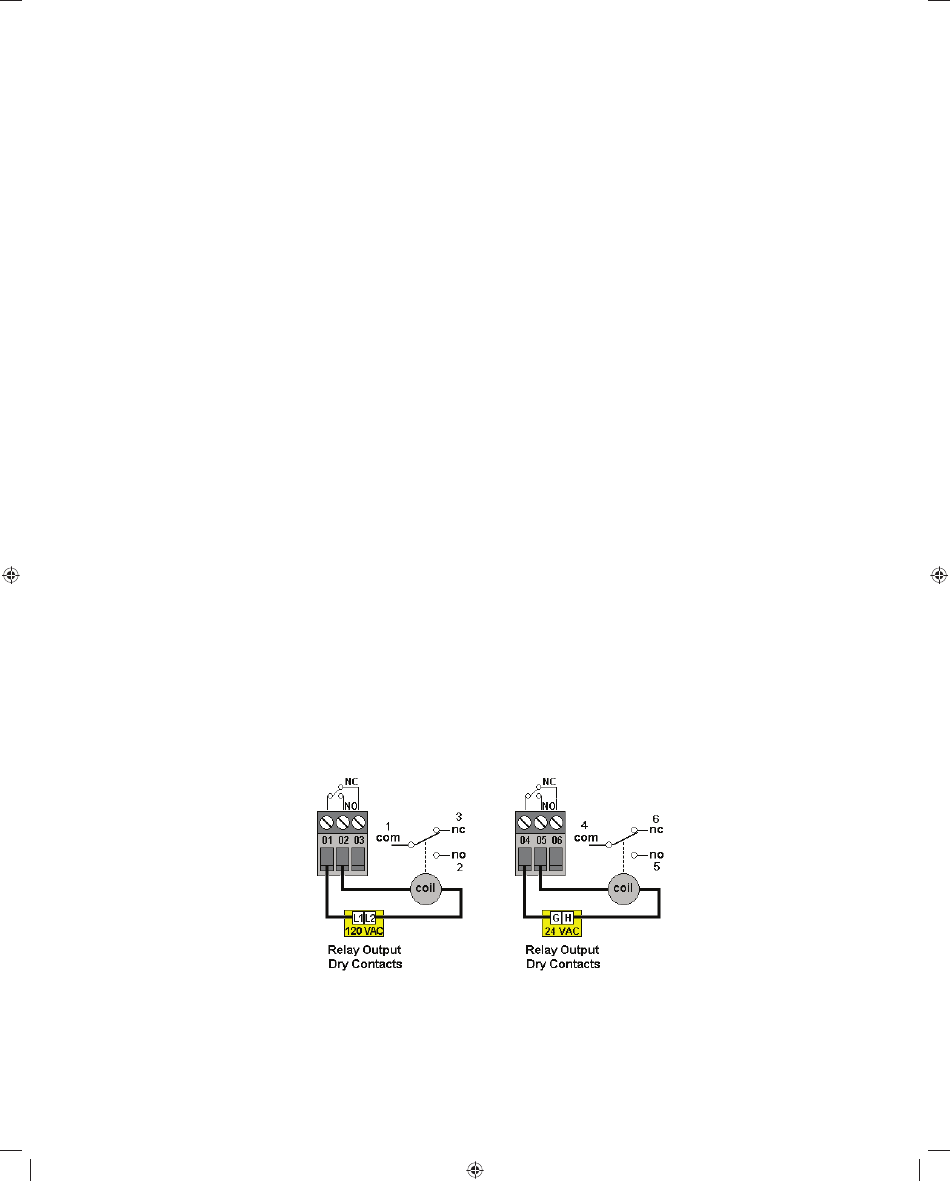

Relays:
Relay 1 = 1, 2 & 3
Relay 2 = 4, 5 & 6
