testo 6631 Bio research transmitter
P2A-Software for testo 6631
Instruction manual
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6631 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TESTO 6631

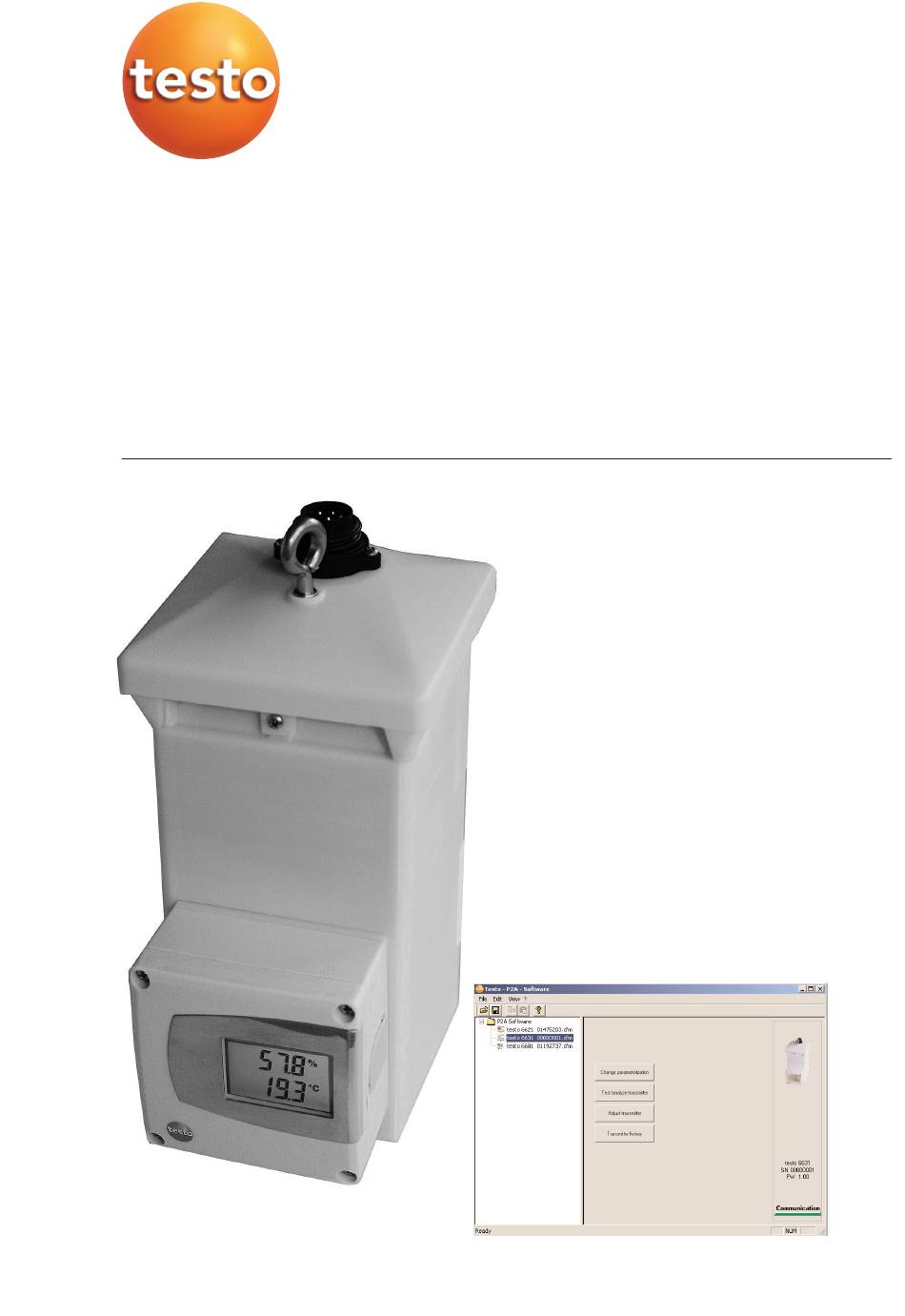

  • Page 1 6631 Bio research transmitter P2A-Software for testo 6631 Instruction manual...
  • Page 3: Table Of Contents

    Contents 3 Contents Contents......................3 Safety and the environment................4 Part 1: testo 6631 Specifications ....................5 Voltage supply ....................6 Product description..................9 Commissioning ..................10 Connecting instrument ....................10 Electrical connection ......................11 Parameterizing/adjusting/analyzing the instrument ............12 Maintaining the product ................13 Tips and assistance ..................14 Part 2: testo P2A Software Specifications ....................15...
  • Page 4: Safety And The Environment

    Follow the prescribed steps when doing so. Use only OEM spare parts from Testo. Protecting the environment Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly manner.
  • Page 5: Part 1: Testo 6631

    Specifications Functions and use The testo 6631 is a bio research humidity transmitter for relative humidity and temperature. The sensors are located in the housing. The transmitter is available with an integrated display for the reading as an option (cannot be retrofitted by the customer).
  • Page 6 Language versions of the instruction manual Japanese-English Language versions of the instruction manual Chinese-English Sample orders testo 6631 ·· 4 ... 20 mA (2-wire), with display, %rF/°C, Bedienungsanleitung Deutsch-Englisch: 0555 6631 / B01 / C01 / F01 / G02 / M05 / K01...
  • Page 7: Voltage Supply

    6631 - Specifications 7 Technical data Sensor Housing · Humidity: Testo humidity sensor, temperature: NTC · Material: ABS, UV-proof · Temperature NTC plug-in Colour: white · Dimensions 105 x 139 x 225 mm Measuring ranges · Weight: <800 g, ·...
  • Page 8 6631 - Specifications Dimensions...
  • Page 9: Product Description

    6631 - Product description 9 Product description At a glance Suspension ring Voltage supply / signal output Ventilator Ventilator drawer assembly (rear). Service opening for humidity sensor (rear) Mini-DIN-connection for P2A software and 1-point adjustment. Two line display Ventilation shaft...
  • Page 10: Commissioning

    6631 - Commissioning Commissioning Connecting instrument Replacing v v entilator: Connect plug-in cable. . Place ventilator drawer assembly into housing. . Tighten screw on ventilator drawer assembly. Install i i nstrument i i n a a s s uitable p p osition:...
  • Page 11: Electrical Connection

    6631 - Commissioning 11 Electrical connection 2-wire technology · Plug manufacturer: Euchner · Cable socket (not included in delivery): Type BS 7K · Pin socket (fitted in instrument ex-works): Type SD 7K 1 %RH (4...20mA) 2 °C/°F (4...20mA) 3 AC ventilator...
  • Page 12: Parameterizing/Adjusting/Analyzing The Instrument

    Switch on the testo 400/650. The values of the testo 6631 and reference humidity probe are displayed on the left and right-hand sides of the two- part display of the testo 400/650 respectively.
  • Page 13: Maintaining The Product

    6631 - Commissioning 13 Maintaining the product Caution! Never put your hands inside housing openings when the ventilator is running. This could lead to injury. Disconnect the instrument from the mains supply before cleaning or exchanging the ventilator, and wait until the ventilator has come to a standstill.
  • Page 14: Tips And Assistance

    Parameterizing, adjusting and analyzing software (P2A Software incl. adapter cable for USB to mini-DIN) 0554 6020 Adapter (for 1-point adjustment with testo 400/650) 0554 6022 Process display testo 54-2 AC, two relay outputs (to 250 VAC/300 VAC, 3 A), mains power supply 90...260 VAC 5400 7553 Process display testo 54-7 AC, two relay outputs (to 250 VAC/300 VAC, 3 A), mains power supply 90...260 VAC, with RS485-output for Online Monitoring and with toatlizer display 5400 7555...
  • Page 15: Specifications

    Specifications Functions and use The testo P2A Software (0554 6020) is parameterizing, adjusting and analyzing software for Testo transmitters. It is not supplied with the testo 6631. System requirements Operating system · Windows 2000 SP4, Windows XP or Windows Vista Computer ·...
  • Page 16: First Steps

    6631 - Tips and assistance First steps Installing the software / driver The CD supplied with the testo 6631 contains an update of the P2A Software including all the latest instrument drivers. Install this update once you have installed the P2A Software (0554 6020).
  • Page 17: Product Description

    P2A Software - Specifications 17 Product description User interface Menu bar. Toolbar. File list: List of all instrument/parameter files. File symbols · : Instrument file, connection to the unit has not been established. · : Instrument file, connection to instrument is established.„[Type] [Serial number].cfm“, File names cannot be altered.
  • Page 18: Using The Product

    P2A Software - First steps · Parameter files: “[Type] [serial number] [date] [time].cfp”; file identifications can be changed. Parameter files only contain parameter data. These can be copied to another instrument or parameter file for the same type of instrument so that several instruments have the same parameter settings.
  • Page 19 P2A Software - Product description 19 Changing a a n i i nstrument/parameter f f ile: The required instrument/parameter file is selected. Click on Change parameterization button. Select channel. Enter parameters in the corresponding fields. Unit / Analog output (Graph) ·...
  • Page 20 As standard, the original name (instrument type, serial number) with the current date / time is suggested, e. g.. "testo 6631 01234578 061120 1403.cfp". In a standard installation, the files are stored in the path "C:\Documents and Settings\All Users\Common Documents\P2A Software".
  • Page 21 Carrying o o ut a a 2 2 -p p oint a a djustment: Before the 2-point adjustment, it must be ensured that the ventilator of the testo 6631 is operating, and that the air input opening is not blocked. Click on Adjust transmitter button.
  • Page 22 P2A Software - Using the product for an adjustment with a humidity generator/air conditioning cabinet (see steps Carrying o o ut a a n a a nalog a a djustment: Voltage supply via terminals required. Click on Adjust transmitter button.
  • Page 23: Tips And Assistance

    · Carry out factory reset: Click on > Click Carry out factory reset If we could not answer your question, please contact your dealer or Testo Customer Service. For contact data, see back of this document or web page www.testo.com/service-contact...
  • Page 24 0970 6631 en 02 V01.00 V01.10-2 en...
