Summary of Contents for TESTO 6321

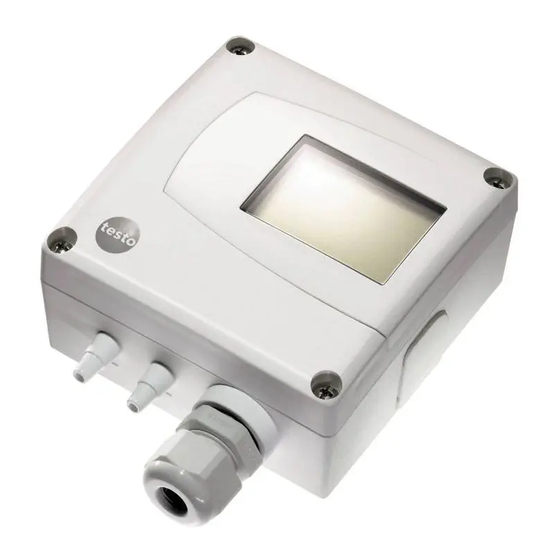

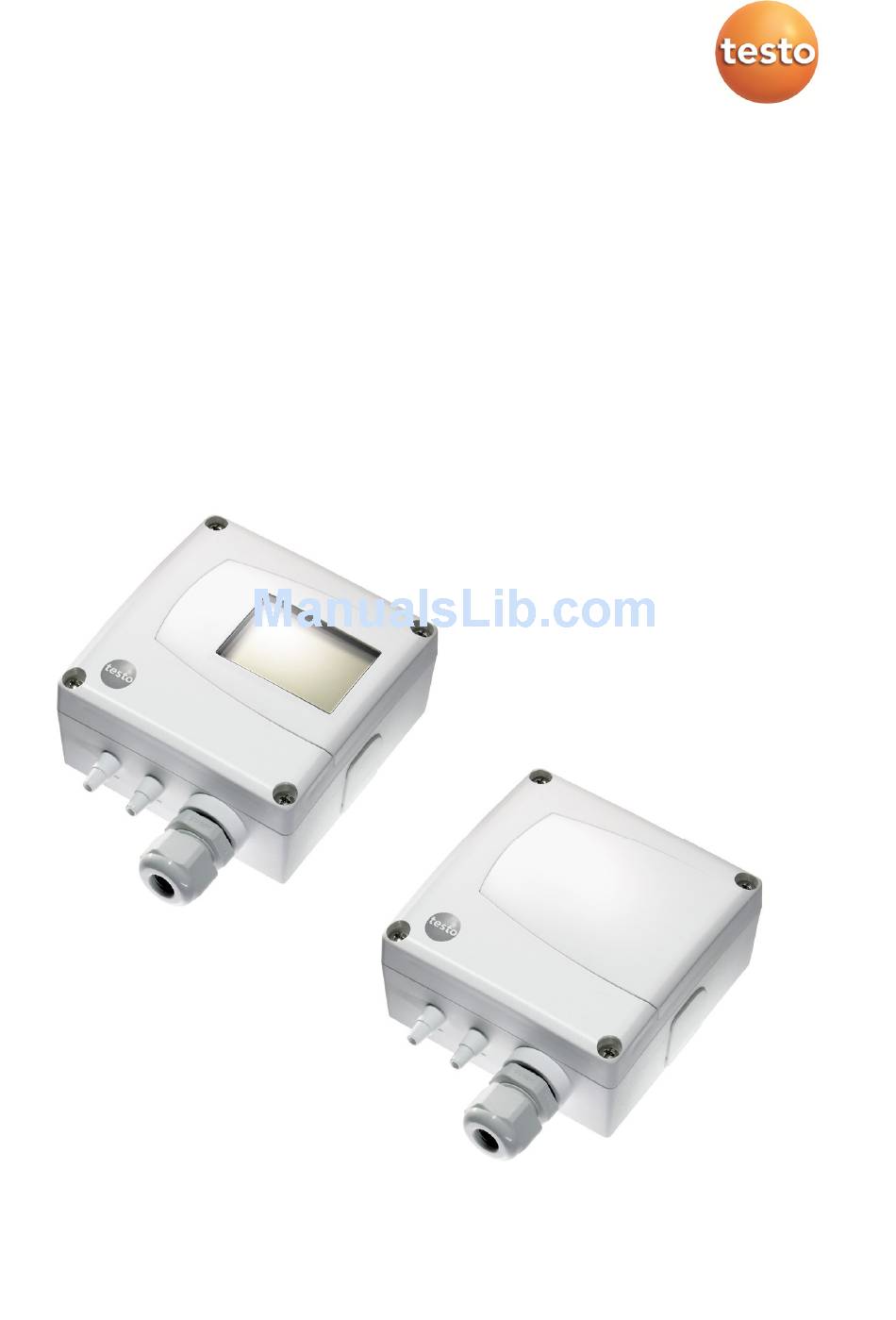

- Page 1 6321 · differential pressure transmitter P2A software · Parameterizing, adjusting and analyzing software Instruction manual...
-
Page 3: Safety And The Environment
Pos: 8 /TD/Sicherheit und Umwelt/Sicherheit gewährleisten/MUF 63xx/Fachpersonal @ 3\mod_1234794940409_79.doc @ 26337 @ Any additional work must only be carried out by authorized personnel. Otherwise testo will not accept any responsibility for the proper functioning of the instrument after repair and for the validity... -
Page 4: About This Document
> At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. Pos: 11 /TD/Überschriften/MUF/Zu diesem Dokument @ 3\mod_1234793991331_79.doc @ 26242 @ 1 About this document Pos: 12 /TD/Sicherheit und Umwelt/Zu diesem Dokument/Verwendung (Standard) @ 0\mod_1173775068554_79.doc @ 337 @ 5... -
Page 5: Table Of Contents
3 Contents Pos: 17 /TD/Überschriften/MUF/Inhalt @ 3\mod_1234794019831_79.doc @ 26261 @ 1 Contents Safety and the environment ..............3 About this document ................4 Contents ....................5 Transmitter ....................7 4.1. Specifications .................. 7 4.1.1. Functions and use ................... 7 4.1.2. Scope of delivery ..................... - Page 6 Transmitter history ..................34 Tips and assistance ................37 6.1. Questions and answers ..............37 6.2. Accessories and spare parts ............37 6.2.1. Ordering options for testo 6321 transmitter (0555 6321) ........ 38 Pos: 18 /TD/--- Seitenwechsel --- @ 0\mod_1173774430601_0.doc @ 283 @...
-
Page 7: Transmitter
• Operating instructions • Calibration report Pos: 23 /TD/Leistungsbeschreibung/Technische Daten/MUF 63xx/MUF 6781 Abmessungen @ 3\mod_1239806330094_79.doc @ 31183 @ 3 4.1.3. Dimensions Pos: 24 /TD/Leistungsbeschreibung/Technische Daten/MUF 63xx/MUF 6321 @ 3\mod_1241601145321_79.doc @ 32604 @ 35555555555555555555 4.1.4. Technical data Parameter • Differential pressure... - Page 8 4 Transmitter Accuracy The specifications are only valid if the positive pressure is applied at the positive pressure connection. • 1.2 % of measuring range, additional ±0.3 Pa intrinsic error • = 0.05 % of measuring range per degree Kelvin of K slope drift deviation from nominal temperature 22 °C •...
- Page 9 2500 hPa Upon delivery and following a factory reset the readings are shown in the display in the unit that was ordered via the KMAT option Fxx, see Ordering options for testo 6321 transmitter (0555 6321) page 38. Meas. cycle •...
-
Page 10: Analog Output
4 Transmitter Maximal load • 10 kΩ (voltage output) Analog output • 0 to 1 V ± 2.5 mV (4-wire) or • 0 to 5 V ± 12.5 mV (4-wire) or • 0 to 10 V ± 25 mV (4-wire) or •... -
Page 11: Product Description
Warranty conditions: see website www.testo.com/warranty Pos: 25 /TD/Überschriften/MUF/1.2/2.2 Produktbeschreibung @ 3\mod_1234258723551_79.doc @ 24008 @ 2 4.2. Product description Pos: 26 /TD/Produktbeschreibung/Übersicht/MUF 63xx/Auf einen Blick MUF 6321 @ 3\mod_1241599865646_79.doc @ 32583 @ 3 4.2.1. At a glance 1 Display for showing reading... -
Page 12: Scaling
PLC. With the alarm definition, however, the physical measuring range limits are decisive. Pos: 28 /TD/Produktbeschreibung/Übersicht/MUF 63xx/Tabelle Skalierung MUF 6321 @ 3\mod_1241617696391_79.doc @ 32646 @ Measuring range/ Maximum scaling standard scaling... -
Page 13: Commissioning
4 Transmitter Measuring range/ Maximum scaling standard scaling -20 to 20 hPa -30 to 30 -50 to 50 hPa -100 to 100 -100 to 100 hPa -200 to 200 -500 to 500 hPa -1000 to 1000 -1000 to 1000 hPa -2000 to 2000 -2000 to 2000 hPa -4000 to 4000... -
Page 14: Wiring The Instrument
1. Slide plastic bracket (2) on the back of instrument onto rear panel bracket until it engages (see arrows). 2. Insert screw (4) through hole (3) and screw into rear panel bracket. Pos: 31 /TD/Erste Schritte/MUF 63xx/Gerät verdrahten 6321 @ 3\mod_1241618087115_79.doc @ 32667 @ 344 4.3.2. Wiring the instrument WARNING Electrical voltage! >... - Page 15 4 Transmitter CAUTION Damage to electronic components! > The terminal strip can be removed from the circuit board in order to screw on the cable ends. After wiring, be sure to completely attach the terminal strip on the contact pins as pre- assembled.
-
Page 16: 4-Wire System
4 Transmitter 4.3.2.1. 4-wire system Voltage output (4-wire, 0 to 1 V/0 to 5 V/0 to 10 V)/voltage output (4-wire, 4 to 20 mA): U = 20 to 30 V DC/AC 4.3.2.2. 3-wire system All ground connections are connected to one another (= one collective ground connection). -
Page 17: Maintenance And Cleaning
4 Transmitter 4.4. Maintenance and cleaning Pos: 33 /TD/Produkt instand halten/MUF 63xx/Gehäuse reinigen 6321 @ 3\mod_1241092795617_79.doc @ 32303 @ 3 4.4.1. Cleaning housing • Only clean the housing carefully with a moist cloth. • Do not use aggressive cleaning agents. -
Page 18: Parameterizing, Adjusting And Analyzing Software (P2A Software)
The P2A software is used for the parameterization, adjustment and analysis of Testo transmitters. The following applies: • If a Testo transmitter is bought at a later stage (and is therefore more recent than the existing P2A software version), a software update is required. -
Page 19: System Requirements
5 Parameterizing, adjusting and analyzing software (P2A software) If you use various instruments of the same type, you can create parameter files once (e.g. by saving the appropriate instrument file as the parameter file) and transmit these onto the other instruments. -
Page 20: First Steps
Before installing the USB driver, please read the separate documentation that is enclosed with the USB driver CD. 5.2.1.3. P2A software upgrade 1. You can find the P2A software upgrade on the Testo website www.testo.com under the product-specific downloads. Download and save P2A software upgrade. 2. Start P2A upgrade.exe... -
Page 21: Establishing A Connection With The Instrument
Software. (double- click on left mouse button). Windows® 10 > Click on [Start] All Apps Testo Software. (double- click on left mouse button). 5.2.2.2. Establishing a connection with the instrument Multiple instruments can be attached, however only one connection is active at all times. -
Page 22: Using The Software
5 Parameterizing, adjusting and analyzing software (P2A software) Pos: 43 /TD/Überschriften/MUF/3.3 Software verwenden @ 3\mod_1234258679599_79.doc @ 23989 @ 2 5.3. Using the software Pos: 44 /TD/Produkt verwenden/MUF 63xx/P2A/Software verwenden @ 3\mod_1234262654547_79.doc @ 24162 @ 3 5.3.1. User interface 1. Menu bar: Menu Command Explanation... - Page 23 5 Parameterizing, adjusting and analyzing software (P2A software) Menu Command Explanation Check instrument Checks the connections to a connections connected instrument without the instrument having to be activated. Service A text file with the most important information on the computer and the software is opened via Display service data.
-
Page 24: Editing Instrument/Parameter File
5 Parameterizing, adjusting and analyzing software (P2A software) 4. Function buttons: Dialogues on editing and testing the instrument are opened by means of the buttons. [Change parameterization] see Changing instrument/parameter file page 24 [Test/analyze transmitter] see Chapter Analyzing/testing the transmitter page 28 [Adjusting the transmitter] see Chapter Adjusting the transmitter page 32... - Page 25 5 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Unit/ All analog outputs are parameterized in this mask. Analog output Unit/analog output Unit: 0 to 1 V/5 V/10 V or 4 to 20 mA. (graphic) Vertical: Current version of the analog output (cannot be changed).
- Page 26 5 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Signal delay Time interval in stages 1 – 15: 1 = no delay 15 = longest delay. The signal delay is added to the reaction time of the sensor. The signal delay shows averaging over the time interval of the selected stage in seconds: Example...
-
Page 27: Creating A New Instrument File
The original name (Instrument type, Serial number) is suggested with the current date/time as standard, e.g. "testo 6321 01234578 061120 1403.cfp". For a standard installation, the files are saved under "C:\Documents and Settings\All Users\Shared Documents\P2A Software". The path can differ depending on the version of the operating system. -
Page 28: Copying And Pasting Parameters
5 Parameterizing, adjusting and analyzing software (P2A software) Pos: 50 /TD/Produkt verwenden/MUF 63xx/P2A/Parameter kopieren/einfügen @ 3\mod_1234358826054_79.doc @ 24360 @ 4 5.3.2.5. Copying and pasting parameters The parameters of a parameter file can be transmitted to an instrument file or another parameter file from the same instrument type. -
Page 29: Analyzing/Testing The Instrument
The values are reset to the customer-specific factory settings. 4. Click on [OK] [Cancel] to close the dialogue. Pos: 55 /TD/Produkt verwenden/MUF 63xx/P2A/Analogausgang testen 6321 @ 4\mod_1244461179628_79.doc @ 44787 @ 4 5.3.3.3. Testing analog output ✓ The required instrument file is marked. 1. Click on [Test/analyze transmitter]. - Page 30 5 Parameterizing, adjusting and analyzing software (P2A software) Field/button Explanation Transmitter test Monitoring of analog outputs Current reading Readings are updated every second. Unit Unit according to the type of analog output. Default value Freely definable output value for the respective type of analog output (V or mA), 1 decimal place.
-
Page 31: Displaying Min./Max. Values
5 Parameterizing, adjusting and analyzing software (P2A software) Pos: 56 /TD/Produkt verwenden/MUF 63xx/P2A/Min-/Max-Werte anzeigen 635x @ 3\mod_1242135985269_79.doc @ 32803 @ 4 5.3.3.4. Displaying min./max. values The transmitter saves the minimum or maximum value for each channel (measured since the last voltage supply or since the last manual reset). -
Page 32: Adjusting The Transmitter
Pos: 57 /TD/Überschriften/MUF/x.x.x Messumformer abgleichen @ 4\mod_1244530152797_79.doc @ 44885 @ 3 5.3.4. Adjusting the transmitter Pos: 58 /TD/Produkt verwenden/MUF 63xx/P2A/Messumformer abgleichen 6321 @ 4\mod_1244460546736_79.doc @ 44755 @ This function is used to adjust an attached instrument. The following adjustments may be carried out using the software: •... -
Page 33: Adjusting The Analog Output
The n-point adjustment must always be carried out to its full extent and in good time at all selected adjustment points. 9. Disconnect connections between the pressure sensor and the pressure connections of the testo 6321. Pos: 60 /TD/Produkt verwenden/MUF 63xx/P2A/Analogausgang abgleichen _6321 @ 4\mod_1244461217550_79.doc @ 44819 @ 4 5.3.4.2. -
Page 34: Transmitter History
Pos: 61 /TD/Überschriften/MUF/2.3.5 Messumformer-Historie @ 3\mod_1237373806926_79.doc @ 29846 @ 3 5.3.5. Transmitter history Pos: 62 /TD/Produkt verwenden/MUF 63xx/P2A/Messumformer-Historie 6321 @ 4\mod_1244458681753_79.doc @ 44723 @ Parameterizations and adjustment processes are registered in the transmitter with an operating hours stamp. In the history overviews (explained later in more detail), past processes and events can be made visible. - Page 35 5 Parameterizing, adjusting and analyzing software (P2A software) 1. Mark the instrument file of the connected instrument. 2. Click on the [Transmitter history] button. Properties of <Instrument type> <Serial number> dialogue is opened with the Transmitter history register. 3. Click on the required entry in the list to change the display. Field Explanation Operating hours /...
- Page 36 5 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Selection of adjustment histories: n-point adjustments Analog adjustments. Operating hours / Operating hour/time stamp at which the date/time change at the instrument was performed. User Name with which the user is logged into the operating system.
-
Page 37: Tips And Assistance
Pos: 66 /TD/Überschriften/8.2 Zubehör und Ersatzteile @ 0\mod_1177402058734_79.doc @ 1102 @ 2 6.2. Accessories and spare parts Pos: 67 /TD/Tipps und Hilfe/Zubehör und Ersatzteile/MUF63xx/Zubehör Ersatzteile MUF 6321 @ 3\mod_1239975742627_79.doc @ 31715 @ Description Article no. Interface and software... -
Page 38: Ordering Options For Testo 6321 Transmitter (0555 6321)
6 Tips and assistance Pos: 68 /TD/Tipps und Hilfe/Zubehör und Ersatzteile/MUF63xx/Bestelloptionen MUF 6321 @ 3\mod_1239975748830_79.doc @ 31736 @ 3 6.2.1. Ordering options for testo 6321 transmitter (0555 6321) Order code Characteristic Axx Measuring range 0 to 100 Pa 0 to 10 hPa... - Page 39 6 Tips and assistance Order code Characteristic White housing, without testo logo White housing, black-and-white testo logo Fxx Differential pressure unit Pa/Min/Max hPa/Min/Max kPa/Min/Max mbar/Min/Max bar/Min/Max mm H O /Min/Max inch H O /Min/Max inch HG /Min/Max kg/cm /Min/Max PSI/Min/Max...
- Page 40 0970 6321 en 03...
