Troubleshooting

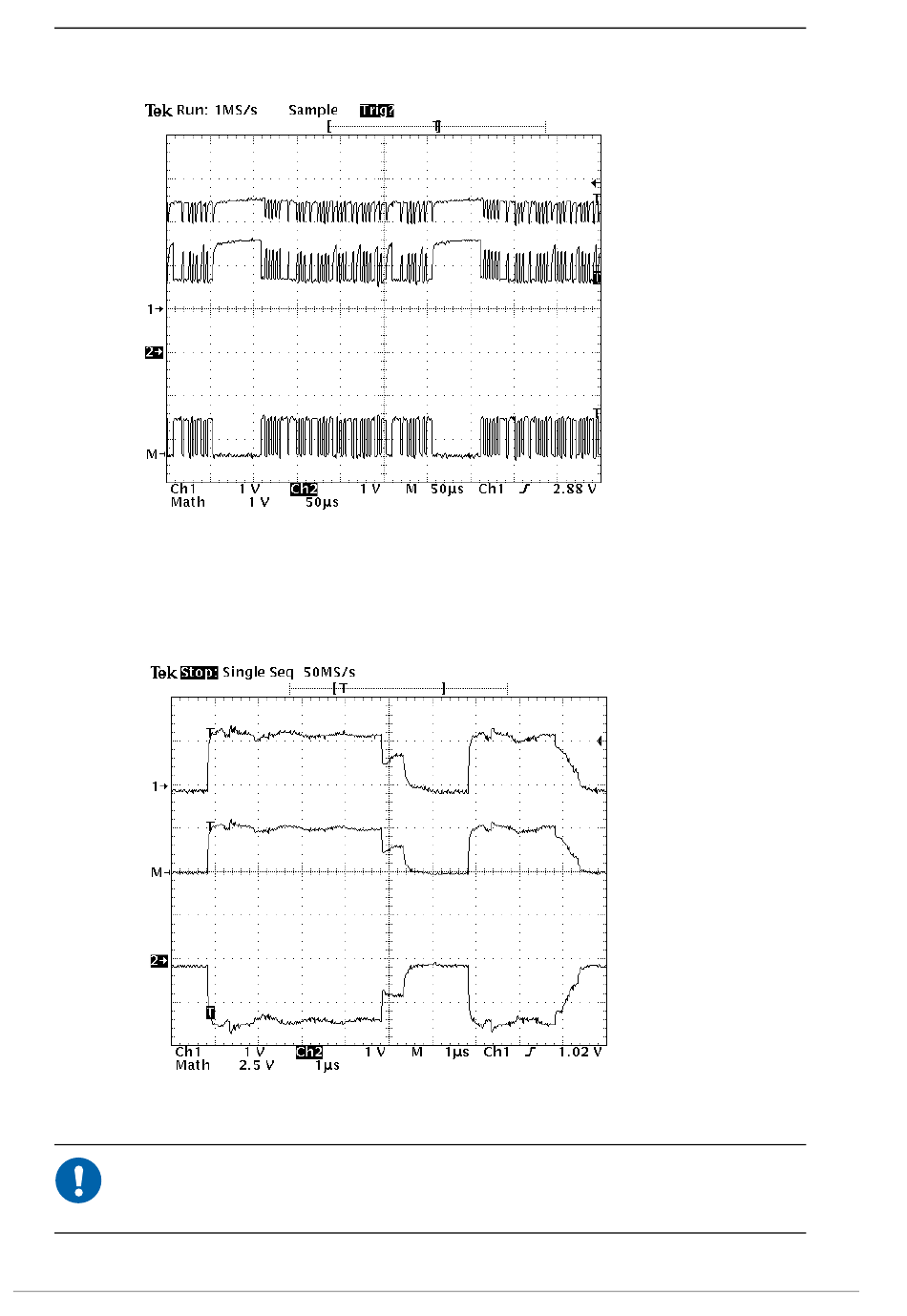

Figure 4.9: Missing or inappropriate termination
.
Figure 4.10:Inappropriate termination resulting in signal reflections
The signal reflection can also be caused by a serious misalignment of
impedance on the signal path. To rule out this error, check all cables and
connections.
26
CVB1621A and CVB2456A Technical Manual, ver. 3.00
