Troubleshooting

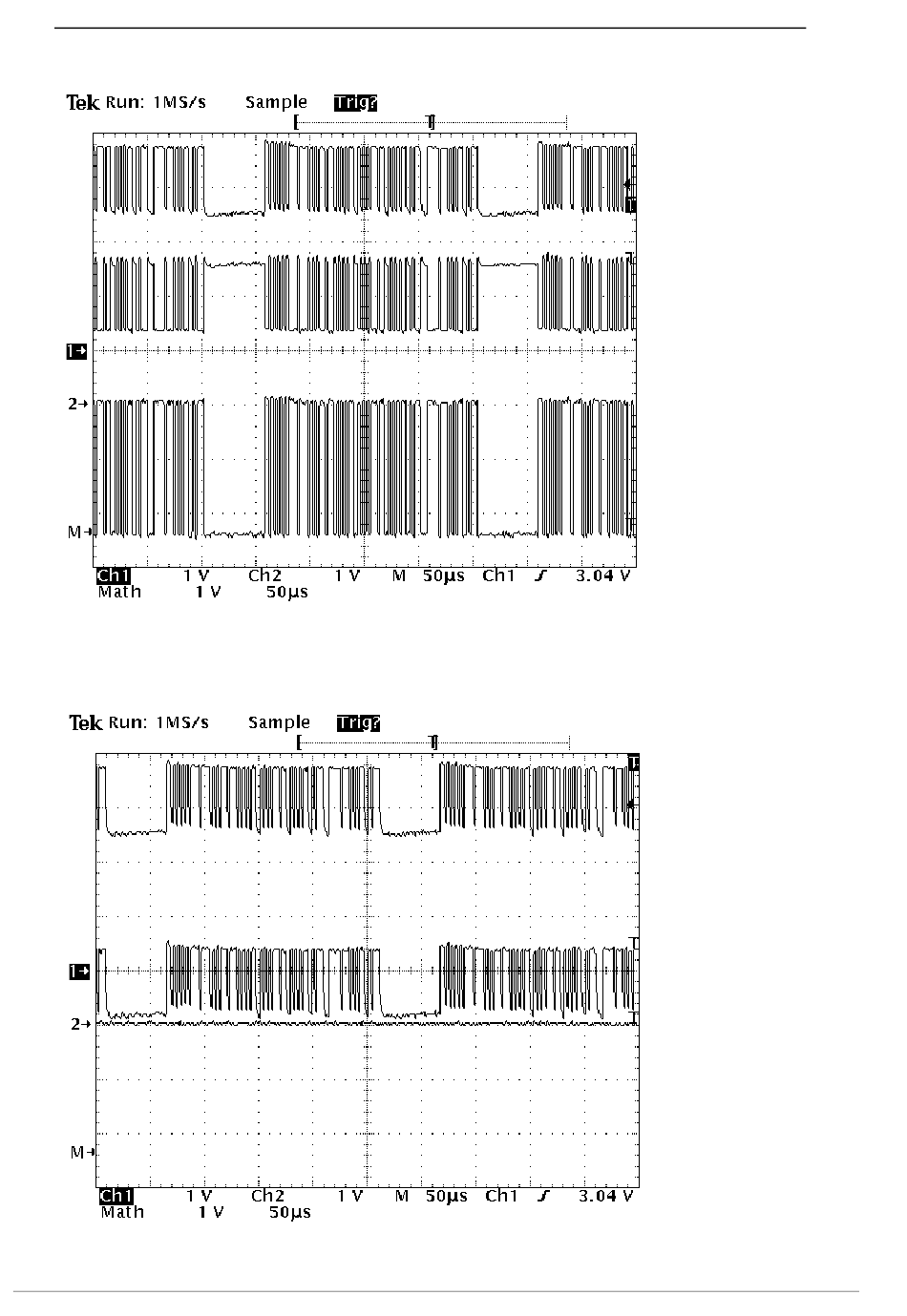

The following figure shows a normal waveform that indicates no transmission errors.
Figure 4.6: No transmission errors
The following figure indicates a missing half in a differential signal.
Figure 4.7: Missing half of the differential signal
CVB1621A and CVB2456A Technical Manual, ver. 3.00
24
