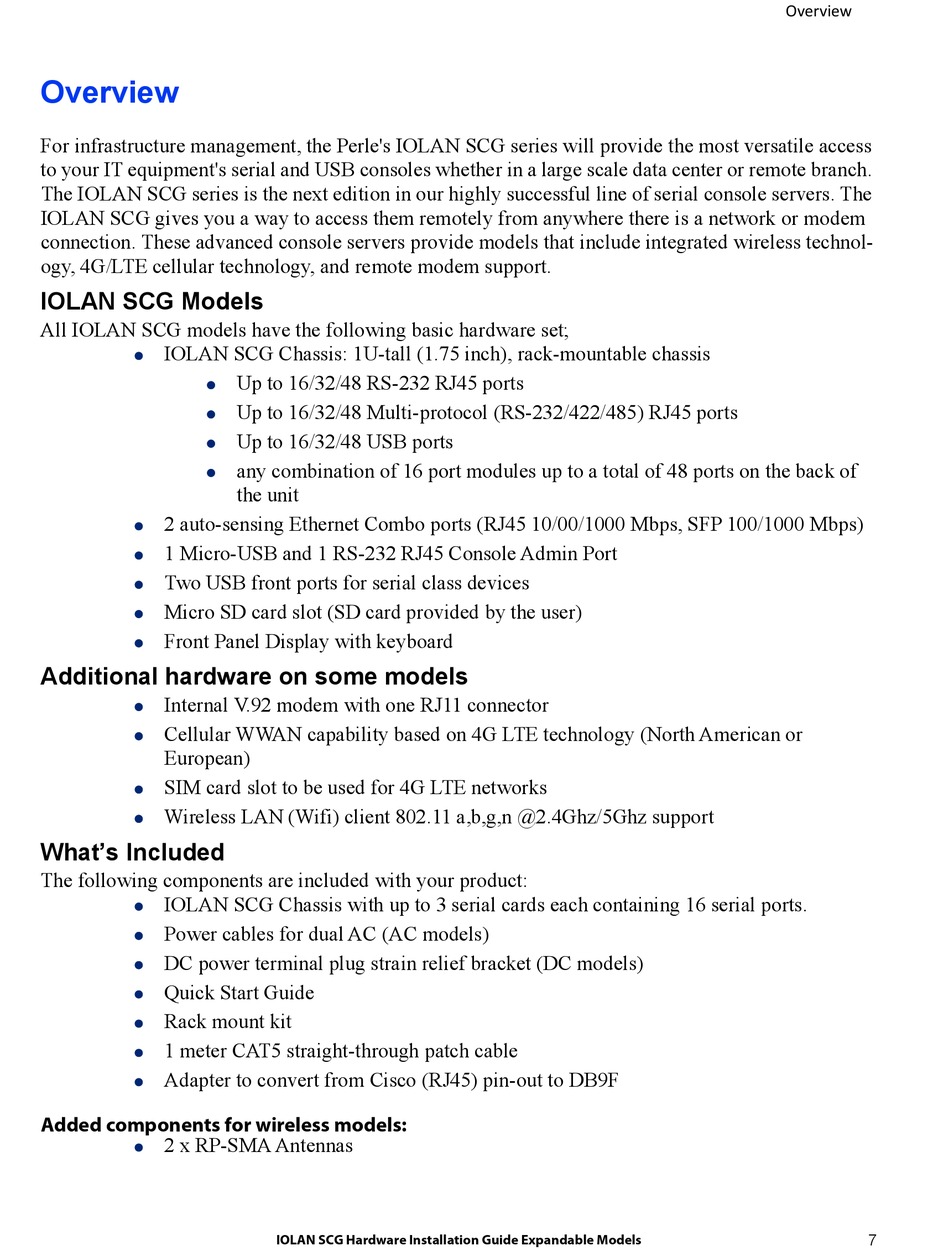

Overview

For infrastructure management, the Perle's IOLAN SCG series will provide the most versatile access
to your IT equipment's serial and USB consoles whether in a large scale data center or remote branch.
The IOLAN SCG series is the next edition in our highly successful line of serial console servers. The
IOLAN SCG gives you a way to access them remotely from anywhere there is a network or modem
connection. These advanced console servers provide models that include integrated wireless technol-
ogy, 4G/LTE cellular technology, and remote modem support.

IOLAN SCG Models

All IOLAN SCG models have the following basic hardware set;
IOLAN SCG Chassis: 1U-tall (1.75 inch), rack-mountable chassis





2 auto-sensing Ethernet Combo ports (RJ45 10/00/1000 Mbps, SFP 100/1000 Mbps)

1 Micro-USB and 1 RS-232 RJ45 Console Admin Port

Two USB front ports for serial class devices

Micro SD card slot (SD card provided by the user)

Front Panel Display with keyboard

Additional hardware on some models
Internal V.92 modem with one RJ11 connector

Cellular WWAN capability based on 4G LTE technology (North American or

European)
SIM card slot to be used for 4G LTE networks

Wireless LAN (Wifi) client 802.11 a,b,g,n @2.4Ghz/5Ghz support


What's Included

The following components are included with your product:
IOLAN SCG Chassis with up to 3 serial cards each containing 16 serial ports.

Power cables for dual AC (AC models)

DC power terminal plug strain relief bracket (DC models)

Quick Start Guide

Rack mount kit

1 meter CAT5 straight-through patch cable

Adapter to convert from Cisco (RJ45) pin-out to DB9F

Added components for wireless models:
2 x RP-SMA Antennas

Up to 16/32/48 RS-232 RJ45 ports
Up to 16/32/48 Multi-protocol (RS-232/422/485) RJ45 ports
Up to 16/32/48 USB ports
any combination of 16 port modules up to a total of 48 ports on the back of
the unit
