IOLAN SCG Hardware Installation Guide
Expandable Models
Updated: September 2021
Version A.09.01.2021
Document Part#:5500427-10
www.perle.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOLAN SCG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perle IOLAN SCG

Summary of Contents for Perle IOLAN SCG

  • Page 1 IOLAN SCG Hardware Installation Guide Expandable Models Updated: September 2021 Version A.09.01.2021 Document Part#:5500427-10 www.perle.com...

  • Page 2: Preface

    Preface Audience This guide is for the network or computer technician responsible for installing the Perle IOLAN SCG also referred to as the IOLAN within this document. Familiarity with the concepts and terminology of Ethernet and local area networks is required.
  • Page 3 Warning: This equipment must be used in the matter specified by the manufacturer. Warning: In case of malfunction or damage, no attempts at repair should be made by the user. Do not dismantle this product. IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 4 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
  • Page 5 Preface Publishing History Date Revision Update Details June 2018 A.06.21.2018 Initial release of the IOLAN SCG series. October 2018 A.10.28.2018 Updates to Front panel information. Added serial pin- out. September 2021 A.09.01.2021 Added router functionality. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 6: Table Of Contents

    What You Need to Supply ................8 IOLAN SCG Components ....... 9 IOLAN SCG Front View................

  • Page 7: Overview

    IT equipment's serial and USB consoles whether in a large scale data center or remote branch. The IOLAN SCG series is the next edition in our highly successful line of serial console servers. The IOLAN SCG gives you a way to access them remotely from anywhere there is a network or modem connection.

  • Page 8: What You Need To Supply

    An Ethernet CAT5e 10/100/1000BASE-T cable or an SFP module with the  appropriate fiber cable to connect the IOLAN unit to the network Data Plan subscription with a supported carrier and activated 3FF SIM Card for  SCG-LA and SCG-LE models only) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 9: Iolan Scg Components

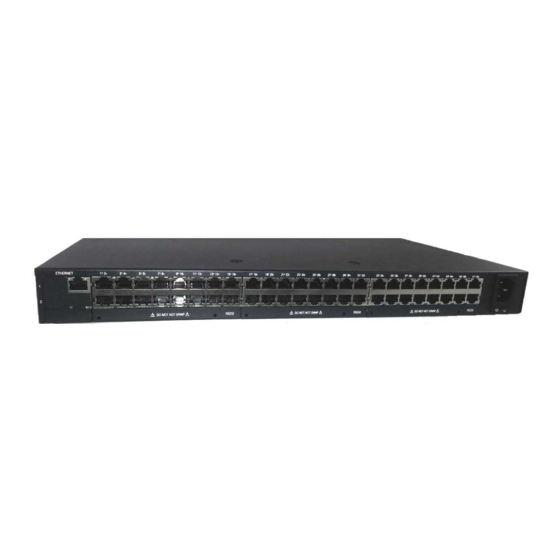

    16-port RS-232 RJ45 modules and 16-port Multi-protocol modules can be installed to provide up to forty-eight serial ports. The modules are field upgradeable. Each IOLAN has an additional two USB device ports on the front of the unit. IOLAN SCG50RRR-LAWM (Shown) IOLAN SCG50UUU-LAWM (Shown) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 10: Installing Iolan Scg Modules

    Note: When installing modules into the IOLAN, Bay 1, Bay2, and Bay 3 must be populated in consecutive order starting at Bay 1. Warning: Power must be off before attempting to insert or remove a module. Failure to do so will result in damage to the IOLAN. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 11: Ethernet Lan Ports

    2. Insert the module and push inwards with your thumb until you hear a click. Do not force the SFP module in. SFP modules are keyed so you can only insert them one way. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 12: Power

    IOLAN providing redundant power to the IOLAN. If one power supply should fail the IOLAN will use the other power supply to continue to power the unit without interruption. Warning: Before servicing this product ensure both power cords have been disconnected. DC Models IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 13 Pressing the power button for 6 seconds will cause the IOLAN to power off. Pressing the power button again will power up the system. Note: When the power is turned off using this method, the power supplies are still active. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 14: Front Lcd Display And Keypad

    In edit mode, to enter input mode or to save the selected option and exit edit mode. Up arrow To scroll up or down the list of parameters within a specific menu. Down arrow Back arrow To go back to previous option IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 15 Specify the default gateway if you need to be able to access the IOLAN from a different network. Software Shows the current version of software. Internal Temperature Temperature inside chassis in Celsius Chassis Serial # xxx-xxxxxxxxxxxxxx IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 16 Ports 1 - 16: card type Card type can be any one of; R232 Multi 1 - 8: xxxx xxxx “x” indicates the port had Rx activity in the last minute. 9 - 16 xxxx xxxx IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 17 USB 50 - 51: xx “x” indicates the port had Rx activity in the last minute. *Modem: x *WLAN, WWAN and Modem status information will only display if the IOLAN SCG has a WLAN, WWAN or Modem interface. Configuration Global Parameters...
  • Page 18 Enter the IPv4 subnet of this interface. (i.e. 255.255.0.0) Save Config? This options is presented whenever a configuration item has been modified. Specifying “No” to this prompt will ignore the value just entered. IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 19 Main Menu. SD Card The SD card may be used for storage of firmware and configuration files. Please refer to the IOLAN Secure User’s Guide for more details. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 20: Console Ports

    If the IOLAN has previ- Fast Setup mode ously been configured, you will be presented with a login prompt. See the IOLAN Secure Command Line Interface Reference Guide for more information on using the CLI commands. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 21: Micro-Usb Console Port

    Fast setup mode allow the user to configure basic operating parameters on the IOLAN SCG. Your IOLAN SCG has been shipped to you in “Factory Default” mode. When the IOLAN is in this mode, it will automatically power up in “Fast setup” mode. When in “Fast setup” mode, the system LED will be flashing green.

  • Page 22: Installing The Micro Sim Card

    From the CLI command prompt run the show command. SCG16 #show wwan status ICCID 89302720396916966778 IMSI 302720391780097 PIN retry counter Front USB A and B Serial Ports These ports are used to connect additional USB serial devices. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 23: Modem Port (Only Applies To Certain Models)

    Some IOLAN models come with a built-in modem with an RJ11 connector. WLAN/WWAN Antennas (only applies to certain models) Screw each of the antennas to the IOLAN. (hand tighten only - do not use tools to tighten). IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 24: Resetting The Iolan Scg

    Typically, you are connecting a serial device such as a workstations, server or router console port. When doing so, the IOLAN SCG acts as a “DCE” device which is the default setting for the serial ports. If you are connecting a DCE type of device to the IOLAN (i.e. an external modem), you would need to change the mode of the IOLAN port from a DCE to a DTE mode.
  • Page 25 Resetting the IOLAN SCG Connecting to the Front and Rear USB Device Ports Connect devices, workstations, servers or routers using USB cables. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 26: Configuring The Iolan Scg

    WebManager The Perle WebManager is an embedded Web based application that provides an easy to use a browser interface for managing the IOLAN. This interface provides the ability to configure and manage the IOLAN. This is accessible through any standard desktop web browser. You must have pre-configured a valid IP address on the IOLAN before connecting with the WebManager.

  • Page 27: Appendix A - Technical Specifications

    Auto-negotiation Auto-MDI/MDIX Ethernet isolation 1500 V SFP Transceiver Ports 2 SFP slots supporting SERDES 100/1000Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFP’s SFP’s supporting SGMII protocol are also supported (example 1000Base-T). Console Ports RJ45 DTE - serial port...
  • Page 28 EN61000-3-3 Limits of Voltage Fluctuations and Flicker EN61000-4-2 (ESD): Contact: EN 61000-4-3 (RS): EN 61000-4-4 (EFT): EN61000-4-5 (Surge): EN 61000-4-6 (CS): EN 61000-4-8 (PFMF): EN 61000-4-11 Wireless - LA PTCRB Verizon Wireless - LE RED (Radio Equipment Directive -2014/53/EU) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 29: Appendix B - Labels (Sample)

    Appendix B - Labels (sample) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 30: Appendix C - Pin-Outs And Cabling Diagrams

    The following table shows the RJ45 serial port pin-out when port is configured as “Straight” (DCE) mode. Pin # Signal Direction NOT USED The following table shows the RJ45 serial port pin-out when port is configured as “Rolled” (DTE) mode. Pin # Signal Direction IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 31 The following table shows the RJ45 serial port pin-out for the different configuration modes for the port. RS-485 RS-485 Pin # RS-232 RS-422 Full-duplex Half-duplex TxD+ TxD+ DATA+ TxD- TxD- DATA- RxD+ RxD+ RxD- RxD- IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 32 RJ45 Console Port The following table shows the RJ45 console port. Pin # Signal Direction IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 33 The following diagram shows the IOLAN RJ45DB9M DTE adapter pin-outs. RJ45F DB9M (RTS) 1 7(RTS) (DTR)2 4(DTR) (TX)3 3(TX) (GND)4 5(GND) (DCD)5 1(DCD) (RX) 6 2 (RX) (DSR) 7 6(DSR) (CTS) 8 8(CTS) IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 34 The following diagram shows the IOLAN RJ45FDB25M (DTE) adapter pin-outs. RJ45F DB25M (RTS) 1 4(RTS) (DTR)2 20(DTR) (TX)3 2(TX) (GND)4 7(GND) (DCD)5 8(DCD) (RX) 6 3 (RX) (DSR) 7 6(DSR) (CTS) 8 5(CTS) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 35: Appendix D - Mechanical

    Appendix D - Mechanical IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 36: Appendix E - Maintaining Your Iolan

    Do not use solvents or cleaning agents on this unit  Keep vent holes clear of debris  If case gets dirty wipe with a dry cloth  Ensure all cables are in working condition  IOLAN SCG Hardware Installation Guide Expandable Models...
