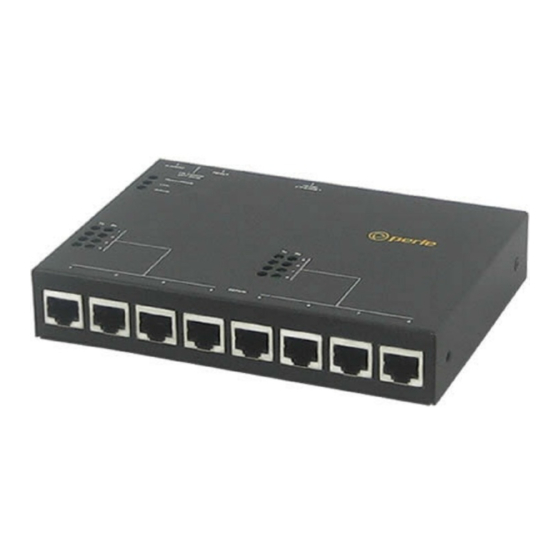

The STS8D GR and the SDS8P GR models provide Serial port to Ethernet connectivity.
Leading edge features include, next generation IP support (IPV6) and 10/100/1000
Ethernet speeds. The SDS8P GR also includes universal software selectable EIA
232/422/485 interfaces and is 802.3af Power over Ether (PoE) compliant.
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation.
Complete details can be found in the following guides at;
www.perle.com/downloads.
• IOLAN User's Guide
• IOLAN Command Line Interface Reference Guide
• IOLAN STS8D GR/SDS8P GR Installation Guide
What's in the box?
The IOLAN
• STS8D GR – 8 ports with 8 RJ45 serial ports (EIA 232) or
• SDS8P GR – 8 ports with 8 RJ45 serial ports with selectable (EIA-232/422/485
mode) and 802.3af Power over Ether (PoE) compliant
• External power supply
• A Quick Start Guide (this document)
• Power adapter, strain relief strap and rubber feet
• Wall mount brackets

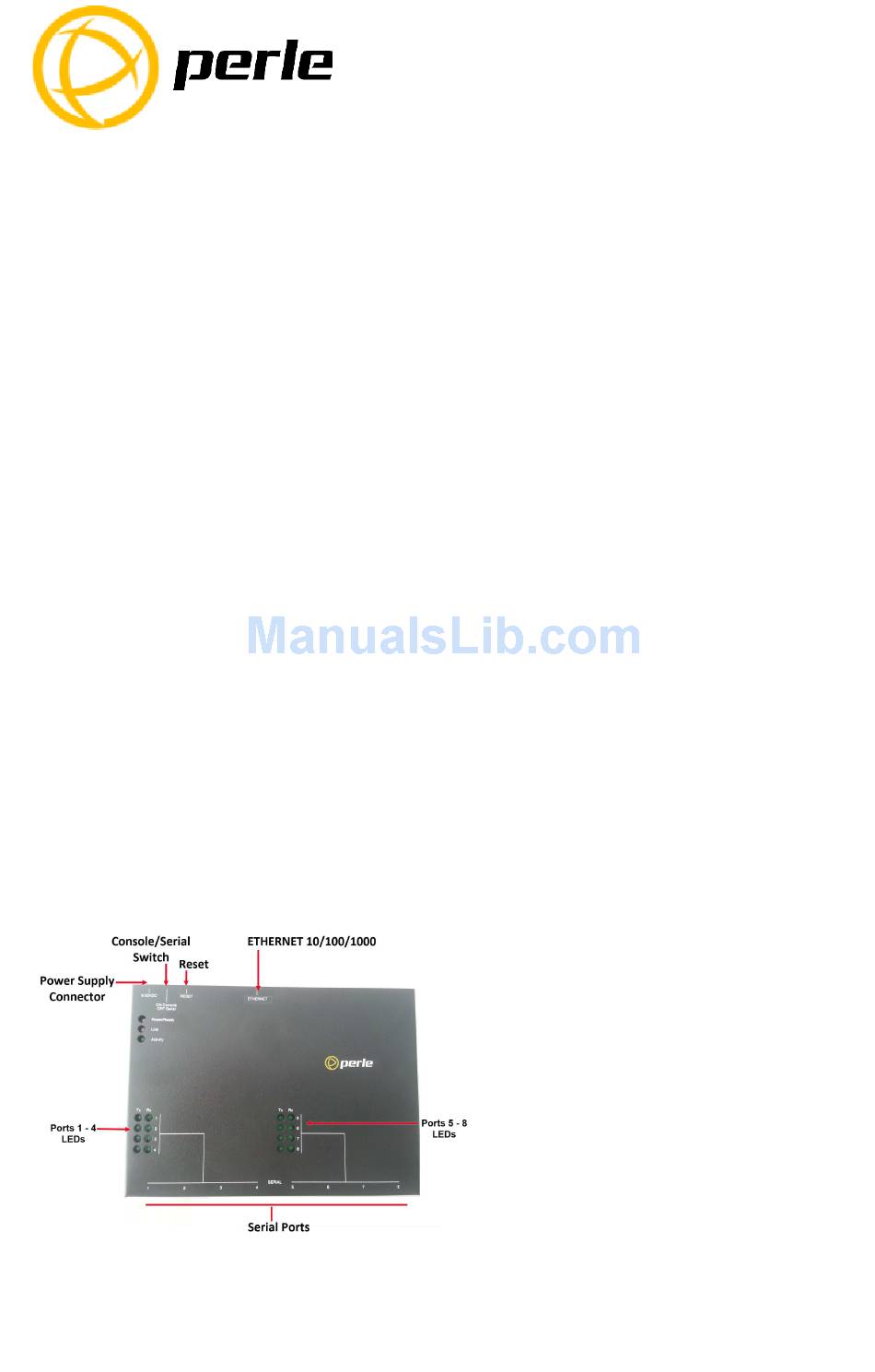

Hardware Overview
•
STS8D GR/SDS8P GR
Quick Start Guide
P/N 5500425-10 (Rev C)
IOLAN
Advertisement
Related Manuals for Perle IOLAN STS8D GR
Summary of Contents for Perle IOLAN STS8D GR
-
Page 1: Hardware Overview
Complete details can be found in the following guides at; www.perle.com/downloads. • IOLAN User’s Guide • IOLAN Command Line Interface Reference Guide • IOLAN STS8D GR/SDS8P GR Installation Guide What’s in the box? The IOLAN • STS8D GR – 8 ports with 8 RJ45 serial ports (EIA 232) or •... -
Page 2: Back View
(if applicable to your application). 2. The console dip switch on the IOLAN should be set to the up position for serial mode. 3. Connect the power cord strain relief, if desired. See IOLAN STS8D GR/SDS8P GR Hardware Installation. Power over Ethernet The IOLAN SDS8P GR can operate as a Powered Device (PD) under IEEE 802.3af... -
Page 3: Connecting Ethernet
Connecting the Serial Device Connect the serial device to the IOLAN serial port. See the IOLAN STS8D GR/SDS8P GR Hardware Installation Guide for pinout details and how to terminate the serial port for 485/Full/Half and 422 mode if your application requires it. Software selectable EIA 232/422/485 interfaces are only supported on the SDS8P GR model. - Page 4 8. You should change the admin password to restrict unauthorized access to the IOLAN. Registering the IOLAN You should register IOLAN online at: www.perle.com/support_services/warranty_reg.aspContacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtm IOLAN STS8D GR/SDS8P GR Quick Start Guide...
