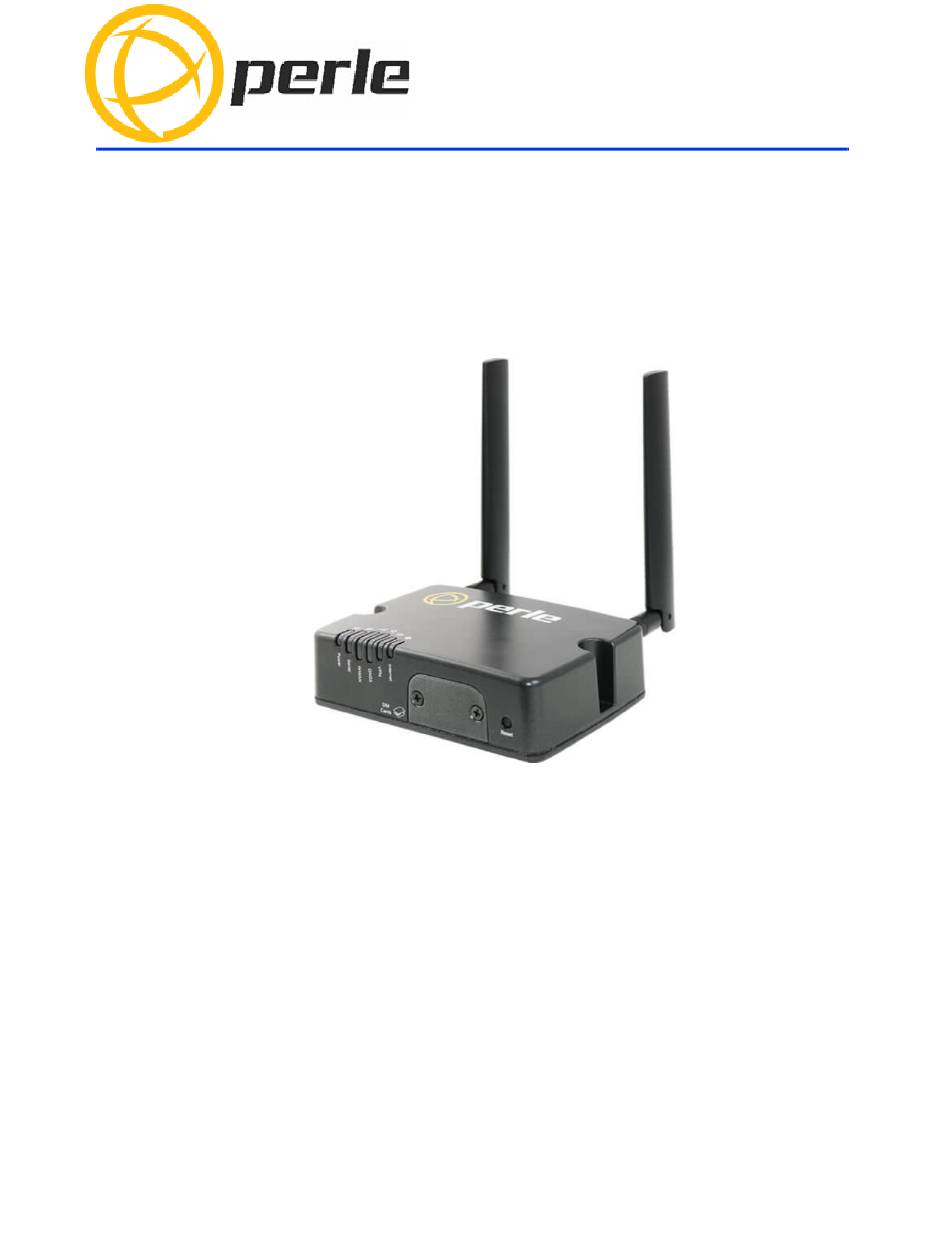

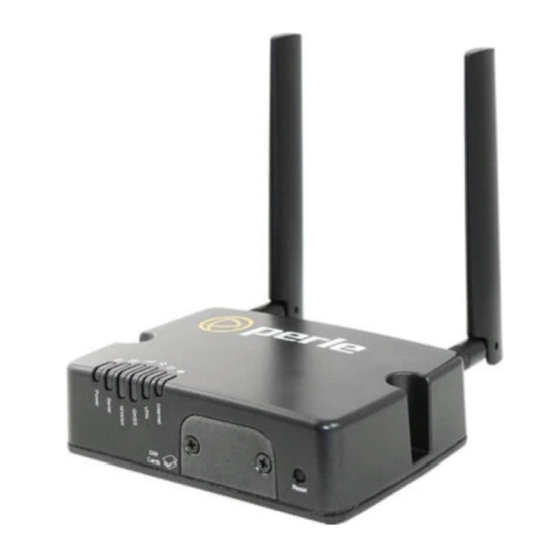

- Page 1 Perle IRG5410/5410+ Series Router Hardware Installation Guide Updated: Jan 2020 Version A.01.24, 2020 Document Part#:5500447-10 www.perle.com...
-
Page 2: Preface
Routers. It covers hardware features as well as installation and operation. This document does not cover how to configure your Perle IRG5410 router. Information to configure your Perle router can be found in the Perle IRG5000 Series Router User’s Guide and the Perle IRG5000 Series Router CLI Refernce Guide on the Perle website. - Page 3 Perle for any and all direct, indirect, special, general, incidental, consequential, punitive or exemplary damages including, but not limited to loss of profits or revenue or anticipated profits or revenue arising out of the use or inability to use any Perle IRG5410 series router even if 5410/5410+...
- Page 4 Notwithstanding the foregoing, in no event shall Perle aggregate liability arising under or in connec- tion with the Perle product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Perle product.
- Page 5 En cas de dysfonctionnement ou de détérioration, aucune tentative de réparation ne doit être effectuée par l'utilisateur. Ne démontez pas ce produit. En cas de dysfonctionnement ou de dommage, contactez le support technique de Perle à l'adresse https://www.perle.com/support_services/support_request.aspx ou par courrier électronique à...
- Page 6 être altérée. Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified Perle representative. Contact Perle Systems Technical support at https://www.perle.com/support_services/support_request.aspx or email at https://www.perle.com/support_services/support_request.aspx#form...
- Page 7 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
- Page 8 Preface Publishing History Date Revision Update Details Jan 2020 A.01.24.2020 Initial release of the Perle IRG5410 Series Router Hardware Installation Guide. 5410/5410+ Perle IRG Series Router Hardware Installation Guide...
-
Page 9: Table Of Contents
Table Of Contents Preface ............. . . I Overview . - Page 10 Appendix E - Maintaining and Troubleshooting ......34...
-
Page 11: Overview
• 12VDC/2A power supply (depending on model) • Enclosure mounting screws • Quick Start Guide • Optional – GPS passive or active antenna (order-able from Perle) • Optional – DIN Rail mounting kit (order-able from Perle) What You Need to Supply Before you can begin, you need to have the following: •... -
Page 12: Hardware
Booted - No configuration N/A Amber - Blip Standby mode Standby mode Blips every 5 seconds Amber - Flashing Router booting Router booting Red - Blip Overheat standby Overheat standby Red - Solid Hardware error Hardware error IRG5410/5410+ Perle Series Router Hardware Installation Guide... - Page 13 Location Fix - Turns off after 5 seconds Green - Blip Initializing Amber - Flashing No Fix Amber - Blip No Fix Normal Mode Power Saving Mode Special Notes No VPN No VPN IRG5410/5410+ Perle Series Router Hardware Installation Guide...
-
Page 14: Sim Card/S
Amber - Solid Backup mode Red - Solid Connection failed Red - Blip Connection failed SIM Card/s The IRG5410 supports two SIM cards. See Inserting the SIM card for the installation procedure. SIM/s Interface 1.8V/3V IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 15: Antenna/S
Once the port has connected and the link is established, the speed LED will turn on. The LED will indicate whether you have a 10, 100 or 1000 Mbps link on the Ethernet port. IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 16: Ethernet Link Status
Link + Flashing with activity 100 Mbps Right LED Green Link + Flashing with activity 10 Mbps No LAN connected GNSS Connector GPS+GLONAS+GAILILEO+BD Passive Antenna – SMA(M) straight connector GNSS Technical Specifications for electrical details. IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 17: Connecting The Power
Alternatively it can be used simply as an analog input. GPIO Green User configurable digital input/output or analog voltage sensing input. Connect to switch, relay or external device. Note: Use copper conductors only. IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 18: Installation
SIM card if your network setup requires it. 3. Align the SIM cover plate and secure the plate with the screws. IRG5410 router Note: Do not force the SIM(s) card in or you may damage the card or your IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 19: Connecting The Antenna/S
• Connecting as a console port • As a GNSS output device Note: When connecting to a DCE device, a crossover cable is needed. Female Serial Pin out Name Description Type Data Carrier Detect IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 20: Connecting To The Usb-C Port In Console Mode
• None (flow control) 7. Press the Enter key on the keyboard and the prompt will display. See the Perle IRG5000 Series Router CLI Refernce Guide for more information on using CLI com- mands. Warning: If you connect or disconnect the console cable with the power applied to the router or any device on the network, an electrical arc can occur. -
Page 21: Connecting The Power
Cable and connector must be rated for minimum 76°C (168.8°F) Before servicing this product ensure the power source has been disconnected. Electrical Note: installations should be performed by personnel thoroughly trained in safe electrical wiring procedures. IRG5410/5410+ Perle Series Router Hardware Installation Guide... -
Page 22: Operation
Fast setup mode allow the user to configure basic operating parameters on the router. Your Perle router has been shipped to you in Factory Default mode. When the router is in “Factory Default” mode, it will automatically power up in “Fast setup” mode. When the router is in “Fast Setup”... -
Page 23: Managing The Irg5410
Perle IRG5000 Series Router User’s Guide for more details on these methods. WebManager The Perle WebManager is an embedded Web based application that provides an easy to use a browser interface for configuring and managing the IRG5410. WebManager is accessible through any stan- dard desktop web browser. -
Page 24: Power Management
You can configure a combination of one or two user defined conditions to determine when the router is powered up and when it goes into Standby mode. Note: To configure Power Modes, more information can be found in the Perle IRG5000 Series Router User’s Guide found on the Perle website. -
Page 25: Power Saving Options
• Cellular connected • Ethernet connected • WIFI active • Serial disable • USB enabled • GPS enabled - active antenna • CPU power savings mode disabled • LED power savings mode disabled Standby mode setup Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 26: Low Voltage Standby
This is a battery protection feature and therefore will override Ignition Mode and Smart Standby Mode. The feature can measure voltage either with the IGN pin or the GPIO (analog) pin. See the Perle IRG5000 Series Router User’s Guide how to configure this feature. Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 27: Overheat Standby
Alarm Manager /Primary/High Threshold menu. Note: that any value below 60°C/140°F set for this threshold will be ignored and the value of 60°C/140°F will be used for the monitoring for overheat standby. Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 28: Irg5410 Deployment Modes
• Pin 2 (Ground)—Use the Black wire in the DC cable to connect Pin 2 to Ground. • Pin 3 (IGN - Ignition)—It is recommended to use the IGN wire (Pin 3) to initiate standby mode on the IRG5410. Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 29: Fixed Installation With Analog Input
• Pin (GPIO)— In this example, the GPIO (green) can by used as an analog input and used to enter and exit standby. For more information on configuring Standby Mode, Timed Standby Mode and Event Handing see the Perle IRG5000 Series Router User’s Guide. Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 30: I/O Configurations
0 - 1V 2.7 - 36V High High Side Pull-up / Dry Contact Switch Input The voltage on Pin 4 when the high side pull-up is enabled (depends on the Vin and power consumption. Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 31: Digital Output / Low Side Current Sink
Digital Output / Low Side Current Sink Use Pin 4 - GPIO as a low side current sink. State Minimum Typical Maximum Comments 200mA 850mA I_Typical = 25°C I_Min = 70°C I_Max = -40°C ––– ––– Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 32: Digital Output/Open Drain
Digital Output/Open Drain You can use Pin 4 - GPIO as an open drain to drive an external digital device. Pull-up State Minimum Typical Maximum Units Open Circuit ––– ––– ––– Active Low ––– ––– Perle IRG5410/5410+Series Router Hardware Installation Guide... -
Page 33: Appendix A - Technical Specifications
-40°C to 85°C (40°F to 185°F) Operating Humidity Ranges 0% to 95% non-condensing Storage Humidity Ranges 0% to 95% non-condensing Operating Altitude Up to 3,048 meters (10,000 feet) MTBF 287,215 hours Standards and Certifications Perle IRG5410/5410+Series Router Hardware Installation Guide... - Page 34 IEC 62236-1:2018. 62236-3-2:2008, 62236-4:2018 GSM/UMTS certifications PTCRB, GCF-CC, R&TTE Environment Testing Shock and Vibration SAE J1455 (Shock and Vibration) MIL-STD-810G EN 61373 IP rating Complaint to IP64 Drop ISTA 2A 2001, test categorizes 1, 4,5, and 6 Perle IRG5410/5410+Series Router Hardware Installation Guide...
- Page 35 Bandwidth 45 MHz Impedance 50 Ohm VSWR 2.0 Typical Gain RHCP Polarization 4 dBic (typical) Axial Ratio at elevation 5 dB (typical) Cellular Cellular/Telecom Regulatory FCC/ICES, RED, PTCRB/CTIA, CE Approvals Carrier Certifications Verizon AT&T Perle IRG5410/5410+Series Router Hardware Installation Guide...
- Page 36 1900 (Block C) Band 26 Band 29 Band 30 2300 Band 41 2500 HSPA+,UMTS Band 1 2100 Band 2 1900 Band 3 1800 Band 4 1700 Band 5 Band 8 Public Saftey Band Band 26 Perle IRG5410/5410+Series Router Hardware Installation Guide...
- Page 37 Band 66 1700 HSPA+,UMTS Band 1 2100 Band 2 1900 Band 3 1800 Band 4 1700 Band 5 Band 6 Band 8 Band 9 1700 Band 19 Public Saftey Band Band 26 Band 28 Perle IRG5410/5410+Series Router Hardware Installation Guide...
- Page 38 Operating Bands - 704-902-928-960 MHz Frequency range 1427.9-1575.42 MHz 1710-2170 MHz 2400-2480-2690 MHz Impedance 50 OHM Gain 2-3 dBi VSWR of Ant 1 and Ant 2 < 3.0 On all bands including Band edges. Perle IRG5410/5410+Series Router Hardware Installation Guide...
-
Page 39: Appendix B - Label (Sample)
Appendix B - Label (sample) Perle IRG5410/5410+Series Router Installation Guide... -
Page 40: Appendix C - Mounting The Irg5410
See diagram below. 2. Slide the two screws into the holding plate, then attached that holding plate to the IRG5410. See below. Perle IRG5410/5410+Series Router Hardware Installation Guide... - Page 41 4. Position the IRG5410 router such that the top hooks of the DIN rail clip attach onto the top of the DIN rail. 5. Rotate the bottom of the IRG5410 towards the rail. This will snap the bottom hooks of the DIN rail clip onto the bottom of the DIN rail. Perle IRG5410/5410+Series Router Hardware Installation Guide...
- Page 42 3. Position the IRG5410 router such that the top hooks of the DIN rail clip attach onto the top of the DIN rail. 4. Rotate the bottom of the IRG5410 towards the rail. This will snap the bottom hooks of the DIN rail clip onto the bottom of the DIN rail. Perle IRG5410/5410+Series Router Hardware Installation Guide...
-
Page 43: Appendix D - Mechanical
Appendix D - Mechanical Perle IRG5140+ Series Router Hardware Installation Guide... - Page 44 • Cables are not bent, constricted, close to high amperages or exposed to extreme temperatures • Front panel LEDs are easily visible • Do not use solvents or cleaning agents on this router, if case gets dirty wipe with a dry cloth Perle IRG5410/5410+Router Hardware Installation Guide...
