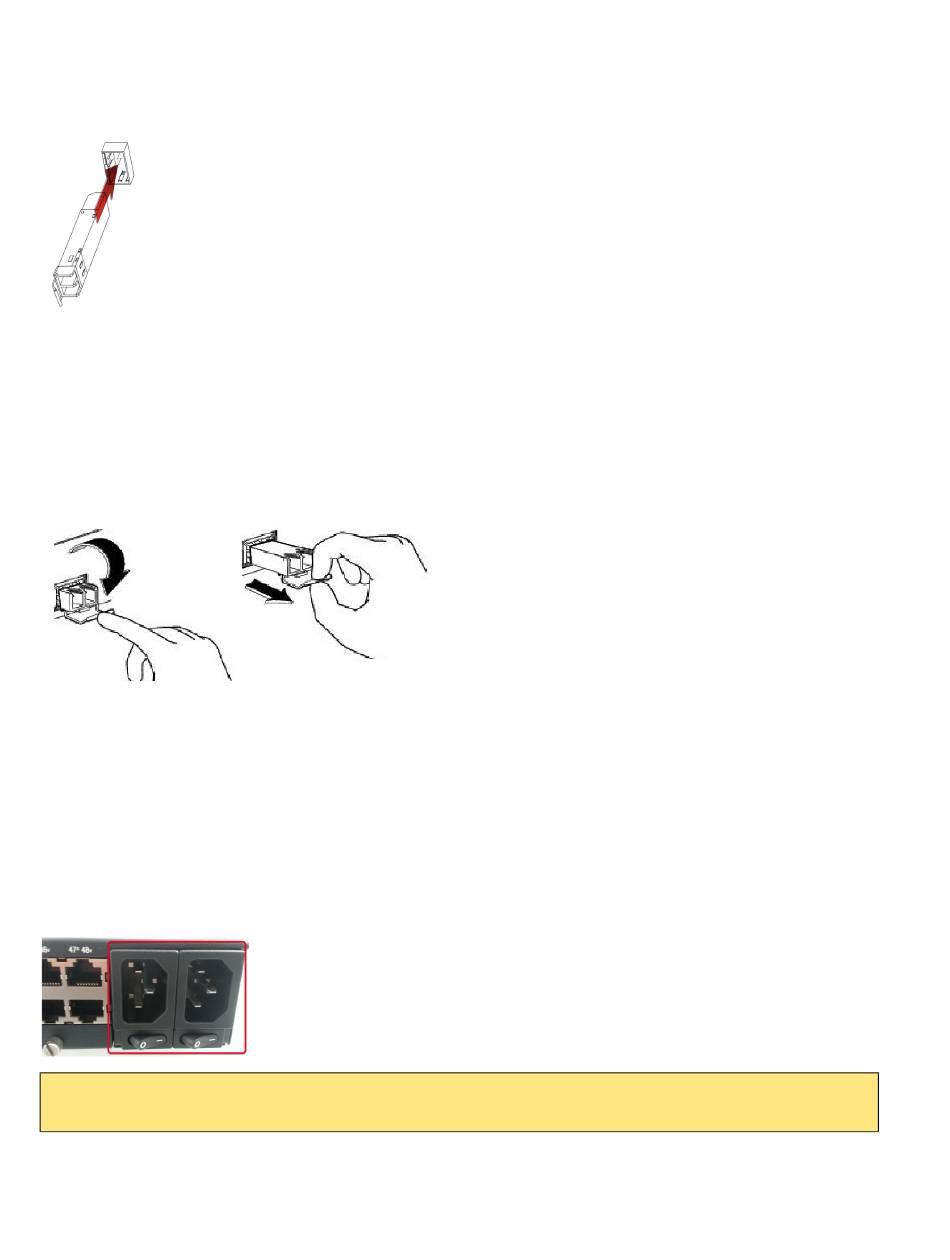

3. If the SFP module is equipped with a clasp, ensure the clasp is in the locked position.The
appropriate fiber cable can now be connected to the SFP module.
Once the device is connected and the link is established the speed LED will turn on. This LED will
indicate whether you have a 100 or 1000 Mbps link. See
Removing SFPs
1. Disconnect the fiber cable from the SFP module.
2. If the SFP module is equipped with a clasp, move it to the unlocked position and use the clasp to
pull the SFP towards you.
3. If the SFP module is not equipped with a clasp, then with your fore finger and thumb, firmly grip
the SFP and pull towards you.

Power

AC Models
The two power connectors are located on the back panel of the IOLAN. Both power switches should
be in the off position when connecting the power cords. Both the power cords can be connected to the
IOLAN providing redundant power to the IOLAN. If one power supply should fail the IOLAN will
use the other power supply to continue to power the unit without interruption.
Warning: Before servicing this product ensure both power cords have been
disconnected.
DC Models
IOLAN SCG Hardware Installation Guide Expandable Models
IOLAN SCG Components
Ethernet/SFP Link
Status.
