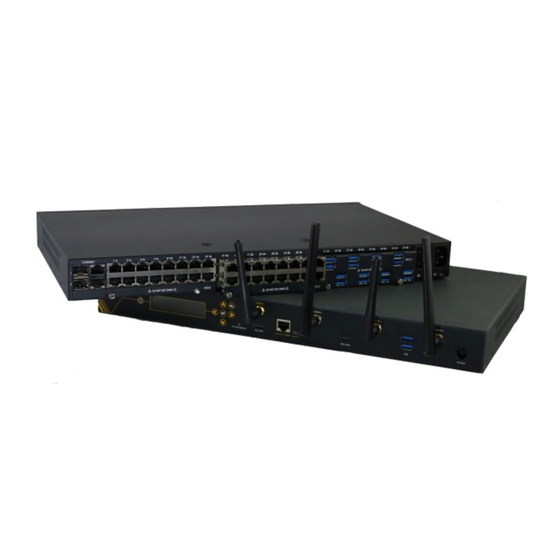

Perle IOLAN SCG Series Hardware Installation Manual
  1. Manuals
  2. Brands
  3. Perle Manuals
  4. Network Hardware
  5. IOLAN SCG Series
  6. Hardware installation manual

Perle IOLAN SCG Series Hardware Installation Manual

Expandable models
Hide thumbs Also See for IOLAN SCG Series:
Table of Contents

Advertisement

Quick Links

Download this manual
IOLAN SCG Hardware Installation Guide
Expandable Models
Updated: Dec 20, 2018
Version A.12.20.2018
Document Part#:5500427-10 (Rev B)
www.perle.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOLAN SCG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perle IOLAN SCG Series

Summary of Contents for Perle IOLAN SCG Series

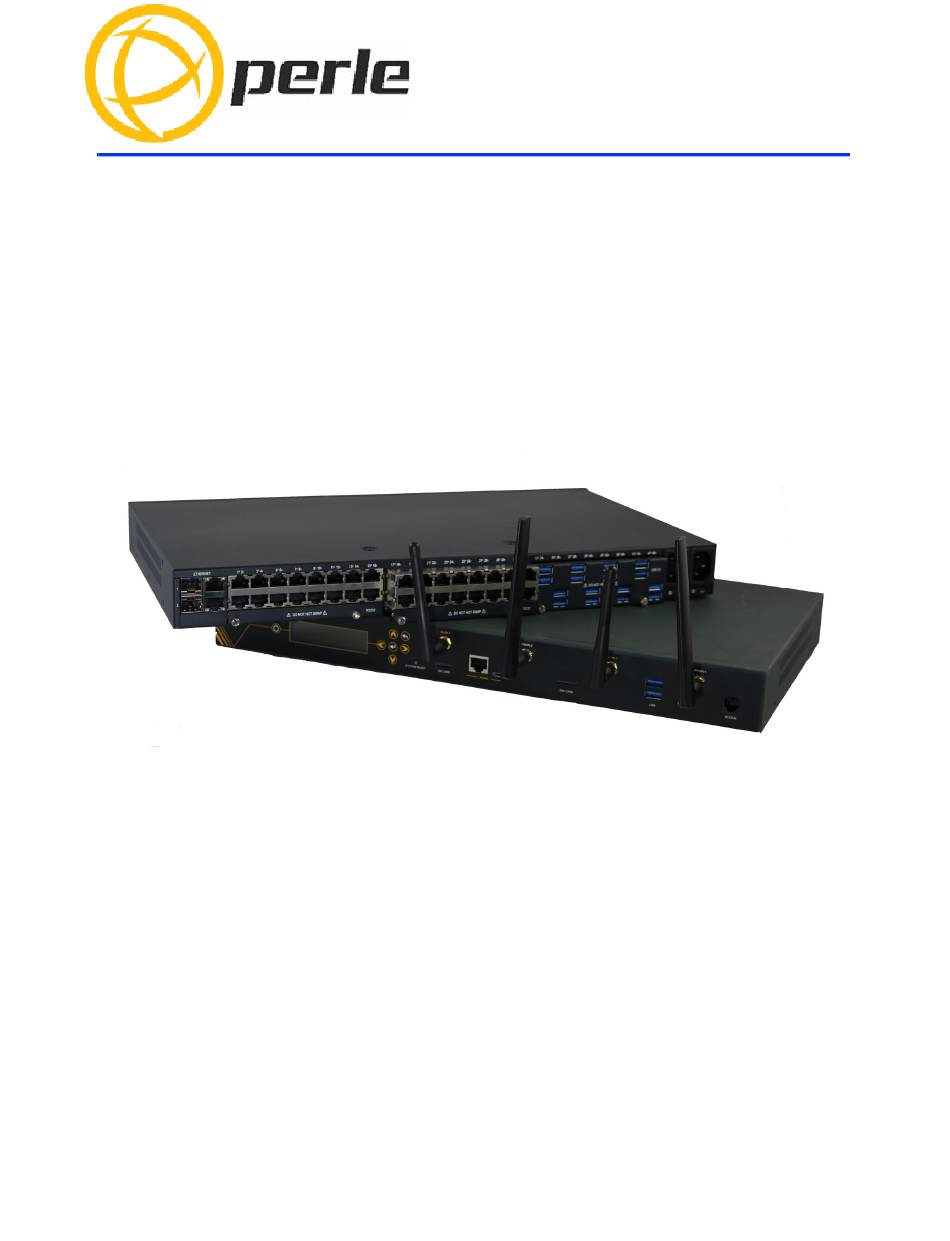

  • Page 1 IOLAN SCG Hardware Installation Guide Expandable Models Updated: Dec 20, 2018 Version A.12.20.2018 Document Part#:5500427-10 (Rev B) www.perle.com...

  • Page 2: Preface

    Preface Audience This guide is for the network or computer technician responsible for installing the Perle IOLAN SCG also referred to as the IOLAN within this document. Familiarity with the concepts and terminology of Ethernet and local area networks is required.
  • Page 3 Preface Additional Documentation Document Description IOLAN Secure User’s Guide User guide explaining how to configure the IOLAN features using the WebManager or DeviceManager V5.0 and greater applications. New users should use these methods to configure the IOLAN. IOLAN Secure CLI (Command Command reference guide using CLI commands to configure the IOLAN (this is an advanced way to configure Reference Guide) Guide V5.0 and...
  • Page 4 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.

  • Page 5: Publishing History

    Publishing History Publishing History Date Revision Update Details June 2018 A.06.21.2018 Initial release of the IOLAN SCG series. October 2018 A.10.28.2018 Updates to Front panel information. Added serial pinout. December 2018 A.12.20.2018 Updates to Technical specifications for Wireless models. IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 6: Table Of Contents

    Table of Contents Preface ..........2 Publishing History .

  • Page 7: Overview

    IT equipment's serial and USB consoles whether in a large scale data center or remote branch. The IOLAN SCG Series is the next edition in our highly successful line of serial console servers. The IOLAN SCG gives you a way to access them remotely from anywhere there is a network or modem connection.

  • Page 8: What You Need To Supply

    IOLAN SCG Components Added components for cellular models: Two multi-band swivel-mount dipole antennas  What You Need to Supply Before you can begin, you need to have the following: A serial cable(s) to connect serial devices to your IOLAN unit ...

  • Page 9: Installing Iolan Scg Modules

    IOLAN SCG Components Each IOLAN has an additional two USB device ports on the front of the unit. IOLAN SCG50RRR-LAWM (Shown) IOLAN SCG50UUU-LAWM (Shown) IOLAN SCG 50RRU-LAWM (Shown) Installing IOLAN SCG Modules 1. Disconnect power from the IOLAN. Failure to do so will result in damage to the IOLAN. 2.

  • Page 10: Ethernet Lan Ports

    IOLAN SCG Components 6. Tighten the retainer screws on each side. Warning: When installing modules into the IOLAN, the power to the unit must be turned off to avoid damage. The modules are NOT hot swappable. Warning: Power must be off before attempting to insert or remove a module. Failure to do so will result in damage to the IOLAN.
  • Page 11 IOLAN SCG Components Ethernet LAN RJ45 10/100/1000 Connect LAN cables to the Ethernet 1 and/or Ethernet 2 ports on the back of the IOLAN. Cat5e cables are recommended for 1000 Mbps connections. Ethernet/SFP Link Status Speed Indicator Activity Indicator Description Flashes with activity 1000 Mbps Green...
  • Page 12 IOLAN SCG Components 2. If the SFP module is equipped with a clasp, move it to the unlocked position and use the clasp to pull the SFP towards you. 3. If the SFP module is not equipped with a clasp, then with your fore finger and thumb, firmly grip the SFP and pull towards you.

  • Page 13: Front Lcd Display And Keypad

    IOLAN SCG Components Front LCD Display and Keypad The IOLAN provides a front LCD Display and Keypad. The LCD display provides the ability to monitor the IOLAN while in operational mode, as well as providing configuration and administration options. Upon boot-up or a period of no user activity, the front panel will have scrolling enabled by default.
  • Page 14 IOLAN SCG Components Front Panel options with associated parameters Main Menu IOLAN Name Shows the name of the IOLAN. The default IOLAN Name is: IOLAN-xxxxxx (xxxxxx being the last 6 digits of the MAC address as specified on the Product Label). Appendix B - Labels.
  • Page 15 IOLAN SCG Components EIA-232: X Ports 1-16: EIA232/USB/NONE USB: X 1 - 8 : X_ X _ XXXX  Port Connections 9 -16 : _XXX ______  (X in position shows device Port 17-32: EIA 232/USB/NONE connected at that port number) 17-24: XXXX _XX_ ...
  • Page 16 IOLAN SCG Components Configuration IPv4 network Eth1 DHCP: OFF/ON The default IPv4 address for the Eth1 IPv4 IOLAN is 000.000.000.000 IPv4 address  IPv4 network mask  Eth2 DHCP: OFF/ON Eth2 IPv4 IPv4 address  IPv4 network mask  WLAN DHCP : OFF/ON WLAN IPv4 IPv4 address ...
  • Page 17 Confirm Yes or No Factory Default Sets the IOLAN configuration to the custom factory default if you have downloaded one, else the configuration is set to the Perle factory default. Lose All Data? Yes or No Using the Front Panel To enter setup information (for example IPv4 address): 1.
  • Page 18 IOLAN SCG Components SD Card The SD card may be used for storage of firmware and configuration files. Please refer to the IOLAN Secure User’s Guide V5.0 and greater for more details. Console Ports The IOLAN has one RJ45 console port (8 pin connector with DTE pinouts) on the front of the IOLAN for use with PC’s equipped with a serial com port.

  • Page 19: Micro-Usb Console Port

    IOLAN SCG Components Appendix C - Pinouts and Cabling Diagrams for cabling information. See the IOLAN Secure 5.0 Command Line Reference Guide and greater for more information on using the CLI commands. Micro-USB Console Port The Micro-USB console port uses a standard Micro-B USB connector. To connect to the Micro-USB Console port: 1.

  • Page 20: Modem Port (Only Applies To Certain Models)

    IOLAN SCG Components Note: To verify that your MicroSIM card is correctly installed: From the CLI command prompt run the show command. SCG16 #show wwan status ICCID 89302720396916966778 IMSI 302720391780097 PIN retry counter Front USB A and B Serial Ports These ports are used to connect additional USB serial devices.

  • Page 21: Resetting The Iolan Scg

    Reset Function Resetting the IOLAN SCG This inset reset button allows you to reset the IOLAN, reset the IOLAN to its Perle or custom factory default configuration or reset the IOLAN to the Perle factory default settings. The Power/Ready LED color and the resetting of the IOLAN default configuration vary depending on how long you press and hold the RESET button, as shown in the table below.
  • Page 22 LED color IOLAN System Status Over 10 seconds Blinking amber, then Reboots and resets the turns solid amber configuration to the Perle factory when you release the default configuration. All RESET button configuration, user IDs, passwords and security certificates are deleted, even if a custom default configuration has been defined.

  • Page 23: Configuring The Iolan Scg

    WebManager The Perle WebManager is an embedded Web based application that provides an easy to use a browser interface for managing the IOLAN. This interface provides the ability to configure and manage the IOLAN. This is accessible through any standard desktop web browser. You must have preconfigured a valid IP address on the IOLAN before connecting with the WebManager.

  • Page 24: Appendix A - Technical Specifications

    Auto-negotiation Auto-MDI/MDIX Ethernet isolation 1500 V SFP Transceiver Ports 2 SFP slots supporting SERDES 100/1000Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFP’s SFP’s supporting SGMII protocol are also supported (example 1000Base-T). Console Ports RJ45 DTE - serial port...
  • Page 25 Technical Specifications EN61000-3-2 Limits for Harmonic Current Emissions EN61000-3-3 Limits of Voltage Fluctuations and Flicker EN61000-4-2 (ESD): Contact: EN 61000-4-3 (RS): EN 61000-4-4 (EFT): EN61000-4-5 (Surge): EN 61000-4-6 (CS): EN 61000-4-8 (PFMF): EN 61000-4-11 Wireless - LA PTCRB Verizon Wireless - LE RED (Radio Equipment Directive -2014/53/EU) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 26: Appendix B - Labels

    Appendix B - Labels IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 27: Appendix C - Pinouts And Cabling Diagrams

    Appendix C - Pinouts and Cabling Diagrams RJ45F to DB9M DTE (Straight-through) The following diagram shows the IOLAN RJ45DB9M DTE adapter pinouts. RJ45F DB9M (RTS) 1 7(RTS) (DTR)2 4(DTR) (TX)3 3(TX) (GND)4 5(GND) (DCD)5 1(DCD) (RX) 6 2 (RX) (DSR) 7 6(DSR) (CTS) 8 8(CTS)
  • Page 28 RJ45F to DB25M (Straight-through Adapter) The following diagram shows the IOLAN RJ45FDB25M (DTE) adapter pinouts. RJ45F DB25M (RTS) 1 4(RTS) (DTR)2 20(DTR) (TX)3 2(TX) (GND)4 7(GND) (DCD)5 8(DCD) (RX) 6 3 (RX) (DSR) 7 6(DSR) (CTS) 8 5(CTS) IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 29 RJ45 Serial Ports (DCE) - Straight-through The following diagram shows the RJ45 serial port pinout (DCE) mode. RJ45 (CTS) (IN) (DSR) (IN) (RX) (IN) (GND) (NOT USED) (TX) (OUT) (DTR) (OUT) (RTS) (OUT) IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 30 RJ45 Serial Ports DTE - Rolled The following diagram shows the RJ45 serial pinout (DTE) mode. RJ45 (RTS)) (OUT) (DTR) (OUT) (TX) (OUT) (GND) (DCD) (IN) (RX) (IN) (DSR) (IN) (CTS) (IN) IOLAN SCG Hardware Installation Guide Expandable Models...
  • Page 31 RJ45 Console Port (DTE) The following diagram shows the RJ45 console port (DTE) mode. RJ45 (RTS)) (OUT) (DTR) (OUT) (TX) (OUT) (GND) (GND) (RX) (IN) (DSR) (IN) (CTS) (IN) IOLAN SCG Hardware Installation Guide Expandable Models...

  • Page 32: Appendix D - Maintaining Your Iolan

    Appendix D - Maintaining your IOLAN Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN to provide proper airflow through the unit Do not use solvents or cleaning agents on this unit  Keep vent holes clear of debris ...

  • Page 33: Appendix E - Mechanical

    Appendix E - Mechanical IOLAN SCG Hardware Installation Guide Expandable Models...
