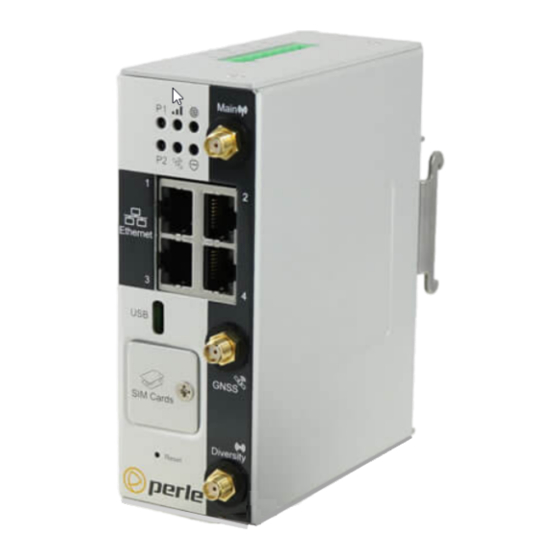

IRG5140+Hardware Installation Guide
Updated: June 2023
Version A.06.13.2023
Document Part#:5500456-10
www.perle.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRG5140+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perle IRG5140+

Summary of Contents for Perle IRG5140+

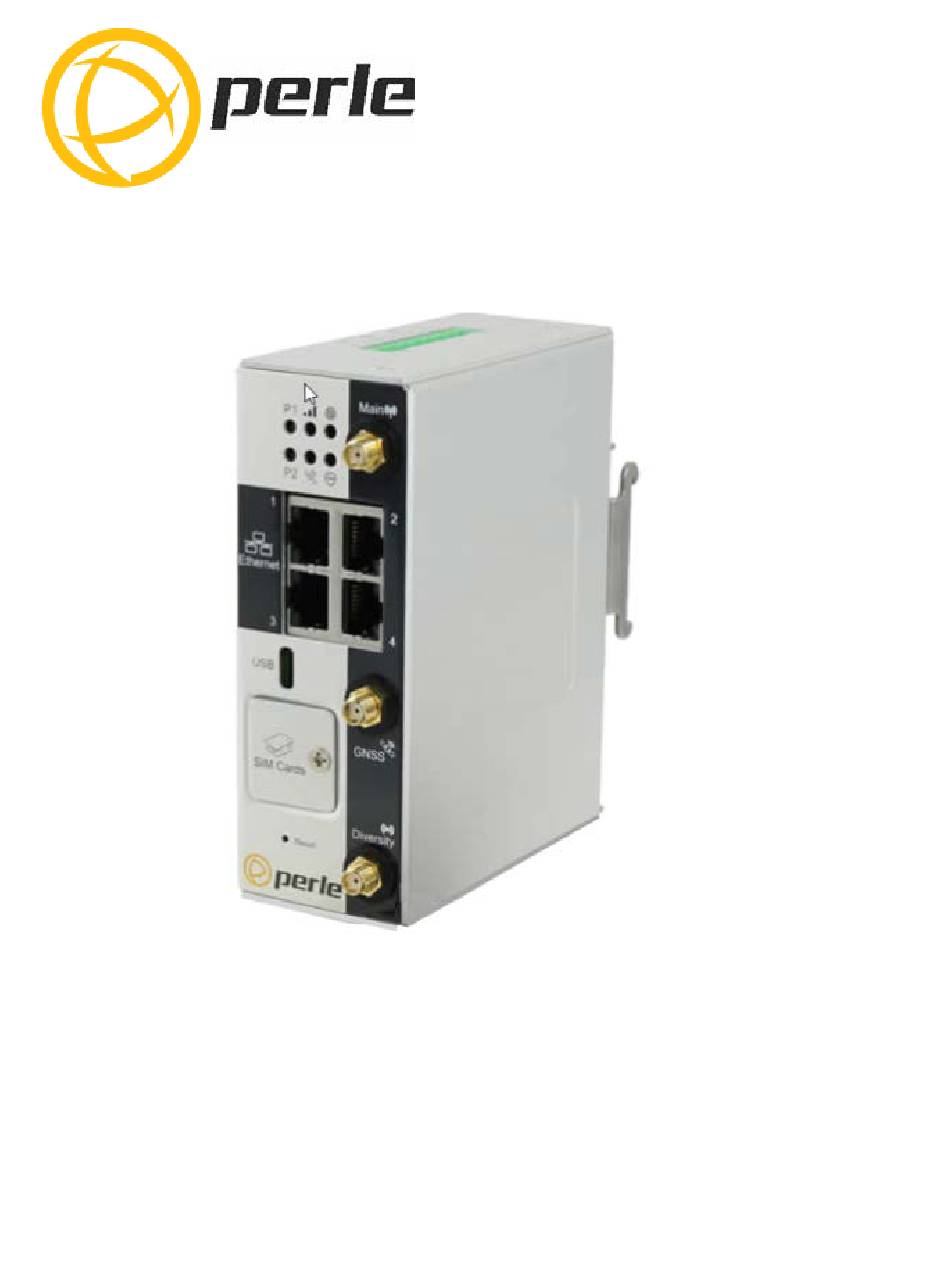

  • Page 1 IRG5140+Hardware Installation Guide Updated: June 2023 Version A.06.13.2023 Document Part#:5500456-10 www.perle.com...

  • Page 2: Preface

    This document does not cover how to configure your Perle IRG5140+ router. Information to configure your Perle router can be found in the Perle IRG7000/5000 5G/LTE Router User’s Guide and the Perle IRG7000/5000 5G/LTE Router Command Line Reference Guide on the Perle website.
  • Page 3 Perle IRG7000/5000 5G/LTE Router Command Line Interface Reference Guide using CLI Command Line Reference Guide commands to configure the IRG 5140+(this is an advanced way to configure the router). Perle IRG5140+ Router Hardware Installation Guide...
  • Page 4 Perle IRG5140 series router even if Perle has been advised or the possibility of such damages or they are foreseeable or for claims by any third party.
  • Page 5 Cet équipement doit être utilisé dans les matières spécifiées par le fabricant. Warning: In case of malfunction or damage, no attempts at repair should be made by the user. Do not dismantle this product. In case of malfunction or damage, contact Perle Technical support at https://www.perle.com/support_services/support_request.aspx or email at https://www.perle.com/support_services/support_request.aspx#form...
  • Page 6 Cet équipement est adapté à une utilisation dans les zones non dangereuses de classe I, division 2, groupes A, B, C, D Warning: WARNING-EXPLOSION HAZARD - Do not connect or disconnect equipment unless power has been removed or the area is known to be non-hazardous. Perle IRG5140+ Router Hardware Installation Guide...
  • Page 7 être altérée. Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified Perle representative. Contact Perle Systems Technical support at https://www.perle.com/support_services/support_request.aspx or email at https://www.perle.com/support_services/support_request.aspx#form...
  • Page 8 Series of Routers are trademarks of Perle. Copyright ©2023 Perle. 60 Renfrew Drive, Markham, Ontario, L3R 0E1, Canada All rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle. Perle IRG5140+ Router Hardware Installation Guide...
  • Page 9 Added IRG7440 model (5G) and updates to other models March 2022 A.03.17.2022 Updated Hot warning April 2022 A.04.08.2022 Updated Restricted Access Area warning June 2023 A.06.13.2023 Added DHCP/BOOTP (ZTP mode) support for factory default mode Perle IRG5140+ Router Hardware Installation Guide VIII...

  • Page 10: Table Of Contents

    Table Of Contents Preface ............. . . I Overview .

  • Page 11: Overview

    • The router • Quick Start Guide that came with your product • LTE SMA antenna pack (#08000120) • GNSS PASV RP-Antenna SMA/CA (#08000130) order-able from Perle What You Need to Supply Before you can begin, you need to have the following: •...

  • Page 12: Hardware

    Normal Low Power Meaning Mode (P1 and P2) Power must be applied to the Power inputs P1 and P2 in order for the LEDs to light. No Power Boot Red—solid Green— Blip Powering up Amber—flashing Perle IRG5140+Router Hardware Installation Guide...
  • Page 13 No Config Green-flashing Unit is powered up normally—unit has no config. Unit is in safe mode or factory default mode. Function Normal Low Power Meaning WWAN Mode Disabled Perle IRG5140+Router Hardware Installation Guide...
  • Page 14 Mode No VPN No VPN configured or enabled Green—solid VPN established—at established least 1 VPN connection is up. VPN failed Red—solid Red—blip Internet is up, but VPN failed Function Normal Low Power Meaning Internet Mode Perle IRG5140+Router Hardware Installation Guide...
  • Page 15 SIM card missing  insufficient signal  no service  modem failure  data connection  failed—waiting to retry Pin incorrect SIM  blocked, bad unlock code SIM locked  SIM blocked,  unblock code incorrect Perle IRG5140+Router Hardware Installation Guide...

  • Page 16: Sim Card/S

    (CLI) as well as provides statuses, logging, and troubleshooting information. Alternative, this port can be set as an Ethernet over USB port. Connecting to the USB-C port in Console Mode Connecting to the USB-C port as an Ether- net over USB Port. Perle IRG5140+Router Hardware Installation Guide...

  • Page 17: Ethernet Lan Ports

    Both LEDs Link + Flashing with activity 100 Mbps Right LED Green Link + Flashing with activity 10 Mbps No LAN connected GNSS Connector GPS+GLONAS+GAILEO Passive Antenna—SMA(M) straight connector for electrical details. Appendix A—Technical Specifications Perle IRG5140+Router Hardware Installation Guide...

  • Page 18: Terminal Block-Power Connector

    Hardware Terminal Block-Power Connector The power plug has two power connections, one relay connection and one digital input connection. For details on wiring up these connection see Connecting the Power Perle IRG5140+Router Hardware Installation Guide...

  • Page 19: Installation

    2. Connect your GPS antenna to the SMA GPS antenna connector labeled GNSS. 3. Mount the GPS antenna where is has a good sky view (at least 90°). 4. Connect the diversity antenna to the SMA diversity antenna labeled Diversity. Perle IRG5140+Router Hardware Installation Guide...

  • Page 20: Connecting To The Ethernet Ports

    PC. 6. Press the Enter key on the keyboard and the prompt will display. See the Perle IRG7000/5000 5G/LTE Router CLI Reference Guide for more information on using CLI commands. Warning: If you connect or disconnect the console cable with the power applied to the router or any device on the network, an electrical arc can occur.

  • Page 21: Connecting The Power

    Ensure that there is one individual conductor for each clamping point. Before servicing this product ensure the power source has been disconnected. Electrical Note: installations should be performed by personnel thoroughly trained in safe electrical wiring procedures. Perle IRG5140+Router Hardware Installation Guide...

  • Page 22: Operation

    DHCP offer Safe Mode Press the Reset button All LEDs, except Saves the startup config  while powering up Power blink Boots with no config file  Amber Allows you to do setup  mode Perle IRG5140+Router Hardware Installation Guide...

  • Page 23: Fast Setup

    Fast Setup mode allows you to quickly configure basic operating parameters on your router. Your Perle router has been shipped to you in Factory Default mode. On power up, your router is in “Fast Setup” mode with the Power LED flashing green. Make a connection to your router via the con- sole port or a Web browser, then answer basic setup operating parameters such as your initial user ID and password.

  • Page 24: Managing The Irg5140

    Perle Managed Media Converters, Ethernet Copper Extenders, Industrial Switches, IOLAN SCR/SCG and the IRG Series of Perle Routers. Your internet browser can securely access PerleVIEW and manage 10’s, 100’s or 1000’s of Perle devices from a centralized server.

  • Page 25: I/O Configurations

    Pins 5 and 6 of the power connector can be connected to an external circuit which will be controlled by the internal relay. When the relay is engaged, the external circuit will be completed. The relay is a Normally Open (NO) relay. The relay is rated at a maximum of 1A@24VDC Perle IRG5410+ Router Hardware Installation Guide...

  • Page 26: Appendix A-Technical Specifications

    Polarization: RHCP SMA (M) (straight) Dimensions: 41.9 x 47.3 x 16.3 mm / 1.65 x 1.86 x 0.64 in RG-174 Cable length: 5m / 16ft LAN standards IEEE 802.11ac complaint & backward compatible with 802.11a/b/g/n Perle IRG5140+ Router Hardware Installation Guide...
  • Page 27 Operating Humidity Ranges 0% to 95% non-condensing Storage Humidity Ranges 0% to 95% non-condensing Operating Altitude Up to 3,048 meters (10,000 feet) Cooling EN 60068-2-1 Dry heat EN 60068-2-2 Damp EN 60068-2-30 Regulatory Approvals Cellular/Telecom FCC/ICES, RED, PTCRB/CTIA,CE Perle IRG5140+ Router Hardware Installation Guide...
  • Page 28 9 kHz to 40 GHz) EN61000-3-2: 2014 (Limits for Harmonic Current Emissions) EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker) EN 61000-6-4:2007 + A1:2011 CISPR 32:2015/EN 55032:2015 Class A (Electromagnetic compatibility of multimedia equipment - Emission requirements) Perle IRG5140+ Router Hardware Installation Guide...
  • Page 29 EN 62311:2019, IEC 62311 Ed. 1.0 b:2007 (Human exposure restrictions for radio frequency electromagnetic fields) Environment Testing IP rating Complaint to IP54 Drop ISTA 2A 2001 test categorizes 1, 4,5, and 6 Bandwidth 45 MHz Impedance 50 Ohm Perle IRG5140+ Router Hardware Installation Guide...
  • Page 30 2.0 Typical Gain RHCP Polarization 4 dBic (typical) Axial Ratio at elevation 5 dB (typical) Vehicle Usage E-Mark (UN ECE Regulation 10.04, ISO 7637-2:2011 and ISOk 16750-2:2012) Vehicle Velocity 224 mph for cellular connectivity Perle IRG5140+ Router Hardware Installation Guide...

  • Page 31: Appendix B-Sample Labels

    Appendix B—Sample Labels Perle IRG5140+ Router Hardware Installation Guide...

  • Page 32: Appendix C-Mounting The Irg5140

    4. Attached the two DIN Rail screws to the holding plate. The DIN rail can be positioned either with the snap on connector in the down or on the holding plate in the up position. Perle IRG5140+Router Hardware Installation Guide...
  • Page 33 5. Slide the two screws into the holding plate, then attach the holding plate to the router. Perle IRG5140+Router Hardware Installation Guide...

  • Page 34: Appendix D-Mechanical

    Appendix D—Mechanical Perle IRG5140+ Router Hardware Installation Guide...

  • Page 35: Appendix E-Maintaining And Troubleshooting

    • Ensure cables are not bent, constricted, close to high amperages, or exposed to extreme temperatures • Check that the Front panel LEDs are easily visible • Wipe case clean with a dry cloth—do not use solvents or cleaning agents Perle IRG5140+Router Hardware Installation Guide...
