Installing IOLAN SCG Modules

1. Disconnect power from the IOLAN. Failure to do so will result in damage to the IOLAN.
2. Using your fingers, loosen the retainer screws holding the face plate to the unit.
3. Gently remove the face plate and set aside.
4. Align the expansion module up with the opening where you want to insert the module.
5. Gently push the module into place until you hear a audible click.
6. Tighten the retainer screws on each side.
Note: When installing modules into the IOLAN, Bay 1, Bay2, and Bay 3 must be
populated in consecutive order starting at Bay 1.
Warning: Power must be off before attempting to insert or remove a module. Failure
to do so will result in damage to the IOLAN.

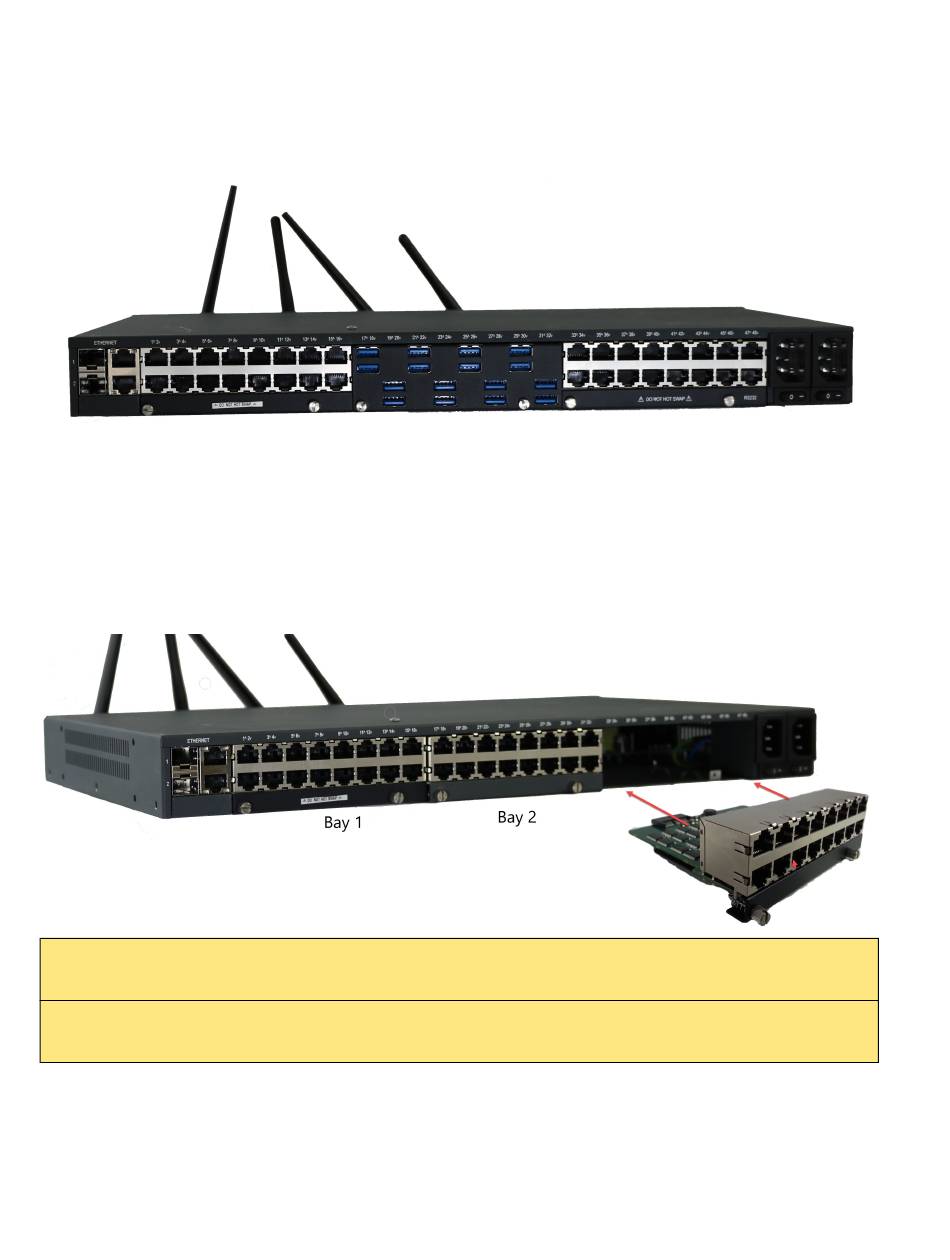

IOLAN SCG Hardware Installation Guide Expandable Models
IOLAN SCG 50RRU-LAWM
(Shown)
IOLAN SCG Components
10
