Note: Do not apply power to the module if it has been damaged.
.
You are now ready to install the PXI-7921

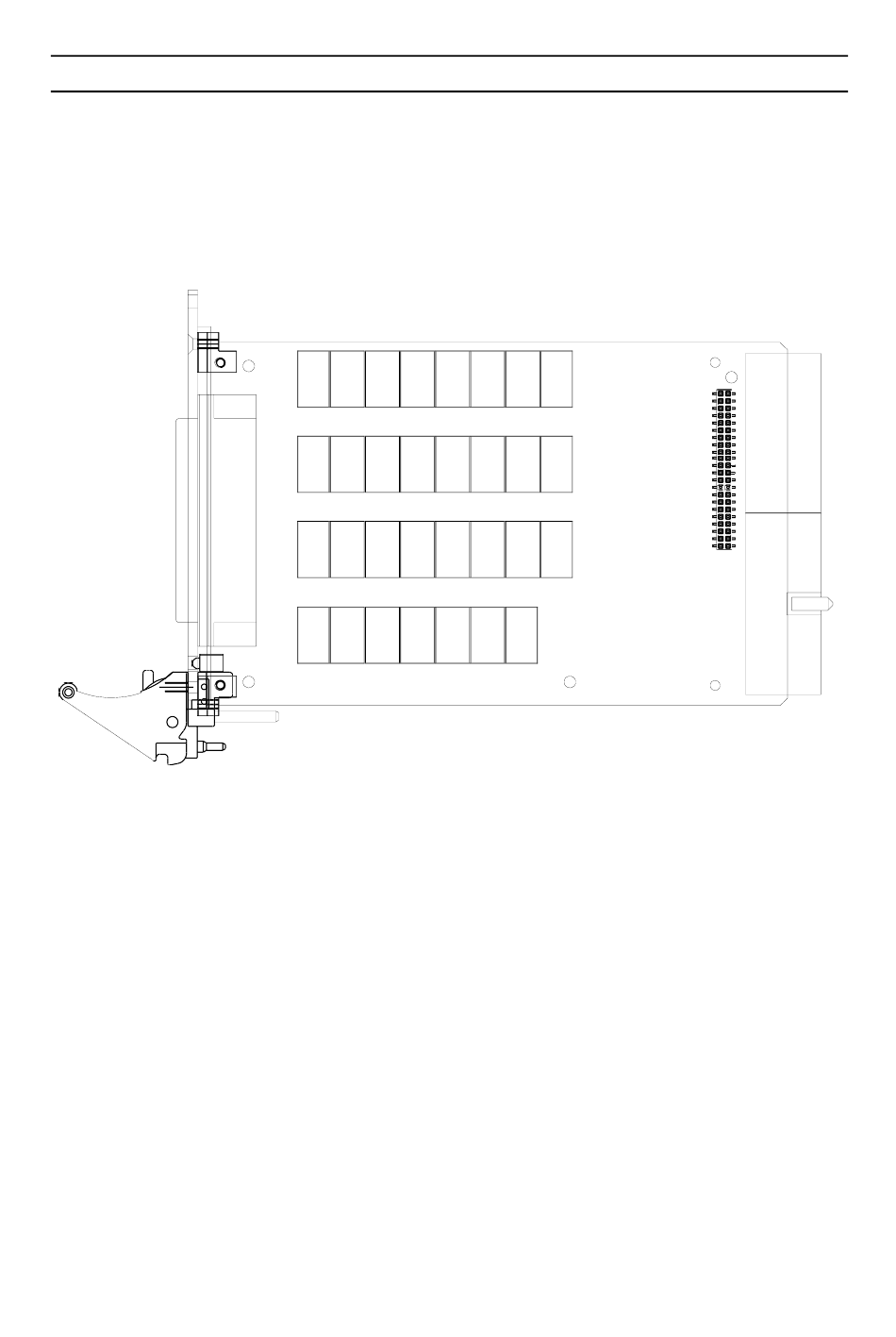

2.3 Mechanical Drawing

Figure 1: ADLINK Switch Module
ADLINK switch module is packaged in a Eurocard form factor compliant with
PXI Specifications measuring 160 mm in length and 100 mm in height (not
including connectors). A 62-pin connector is located at the front panel for wiring
purposes and the J1/J2 IEC connectors in the rear are used to link the chassis
backplane. With its modular, rugged, and high shock resistant mechanical
features, the switch module functions exceptionally well in any harsh
environment application.

2.4 Installing the switch module into a PXI Platform

To insert the ADLINK PXI switch module, align the module's edge with the card
guide in the PXI chassis. Slide the switch module into the chassis, until
resistance is felt from the PXI connector. Push the ejector upwards and fully
6
Installation
