Mecmesin MultiTest-d Operating Manual page 5

A Guide to Safe Use of Mains Powered Test Frames

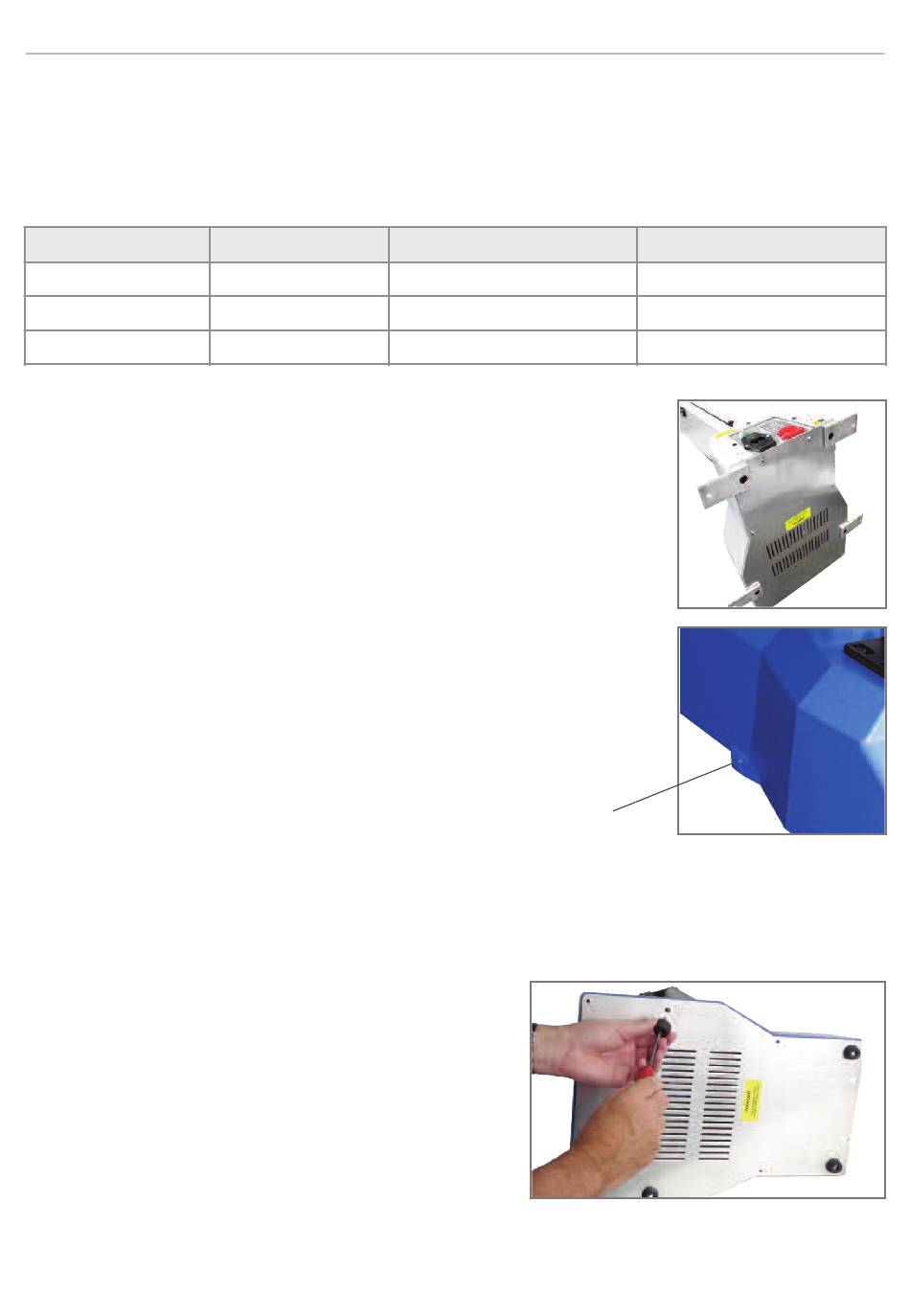

2.1 Bolting MultiTest Test Frames to the Work Surface
In order to comply with European regulation and safe use of the equipment, single column
stands should be secured to the bench as follows:
Test stand
0.5
1
2.5
* N.B. For MultiTest-xt Console controlled frames we recommend that
the console is located below the information label on the mounting
rail for stability. If the console is to be mounted above this point,
please contact your authorised Mecmesin agent to purchase a set of
Anchor Brackets.
The extended length test stands MultiTest 0.5 and MultiTest 1 are
supplied with base anchoring brackets to allow the test stands to be
bolted to a bench.
Note: when securing the Console to the test frame do not exceed the recommended height of
700mm (26.6") as this can cause stability problems with the test frame.
Fitting the feet to the stand
The MultiTest 2.5 is supplied with rubber feet.
Support the stand and fit the four rubber feet to the
base of the stand.
Height (mm)
1710
1510
941
Feet/fixing supplied
Anchor brackets
Anchor brackets
Rubber feet
'Locating eye' on
MultiTest 5
Fitting rubber feet to the base of
Bolting recommended?
Yes
Yes
No*
the test stand
page 4
