Hitachi NEXT Series Service Manual page 84

Oil-free screw compressor
Hide thumbs Also See for NEXT Series:
Table of Contents

Advertisement

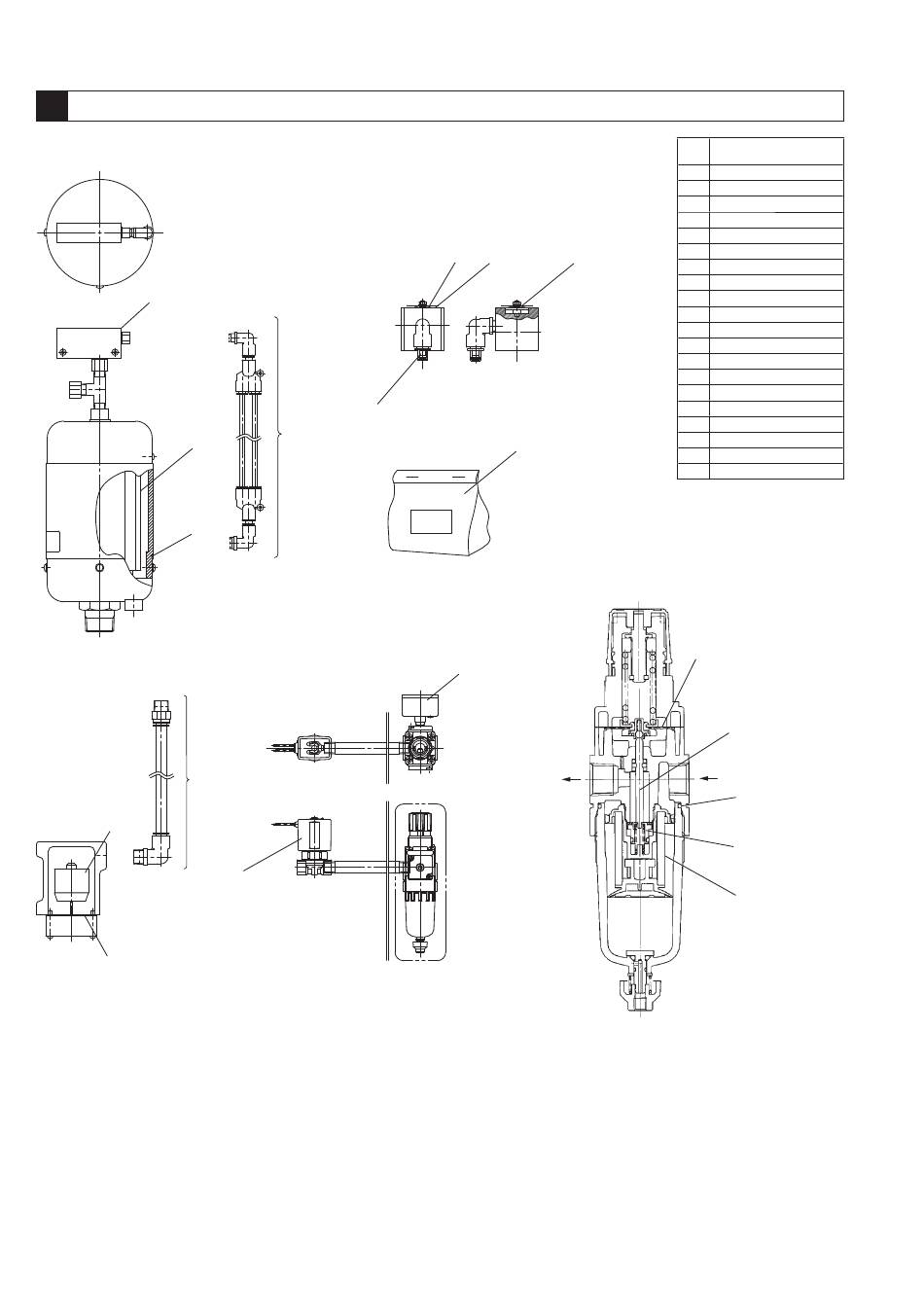

Oil Mist Remover
16
D41
D37
D38
H77
D49
D78
D42
H76
D39
D44
D43
E96
※E63
D40
OUT
A
82
Ref.
Description
No.
D37 Element
D38 O-Ring
D39 Solenoid Valve
D40 Pressure Gauge
D41 Ejector
D42 Vacuum Indicator
D43 Valve Sheet
D44 Valve Spring
D45 Air Filter/Air Pressure Regulator
D46 Diaphragm, air pressure regulator
D48 Element, air filter
D49 Float Trap
D78 Packing
E62 O-Ring, air pressure regulator
E63 OMR Consumable Parts Kit
E96 OMR Relief Valve
H17 Valve
H18 Stem
H76 Tube Fitting Assy (1)
H77 Tube Fitting Assy (2)
※ Does not come with the product.
Details of A
D45
D46
H18
IN
E62
H17
D48
