Hitachi NEXT Series Service Manual page 75

Oil-free screw compressor
Hide thumbs Also See for NEXT Series:
Table of Contents

Advertisement

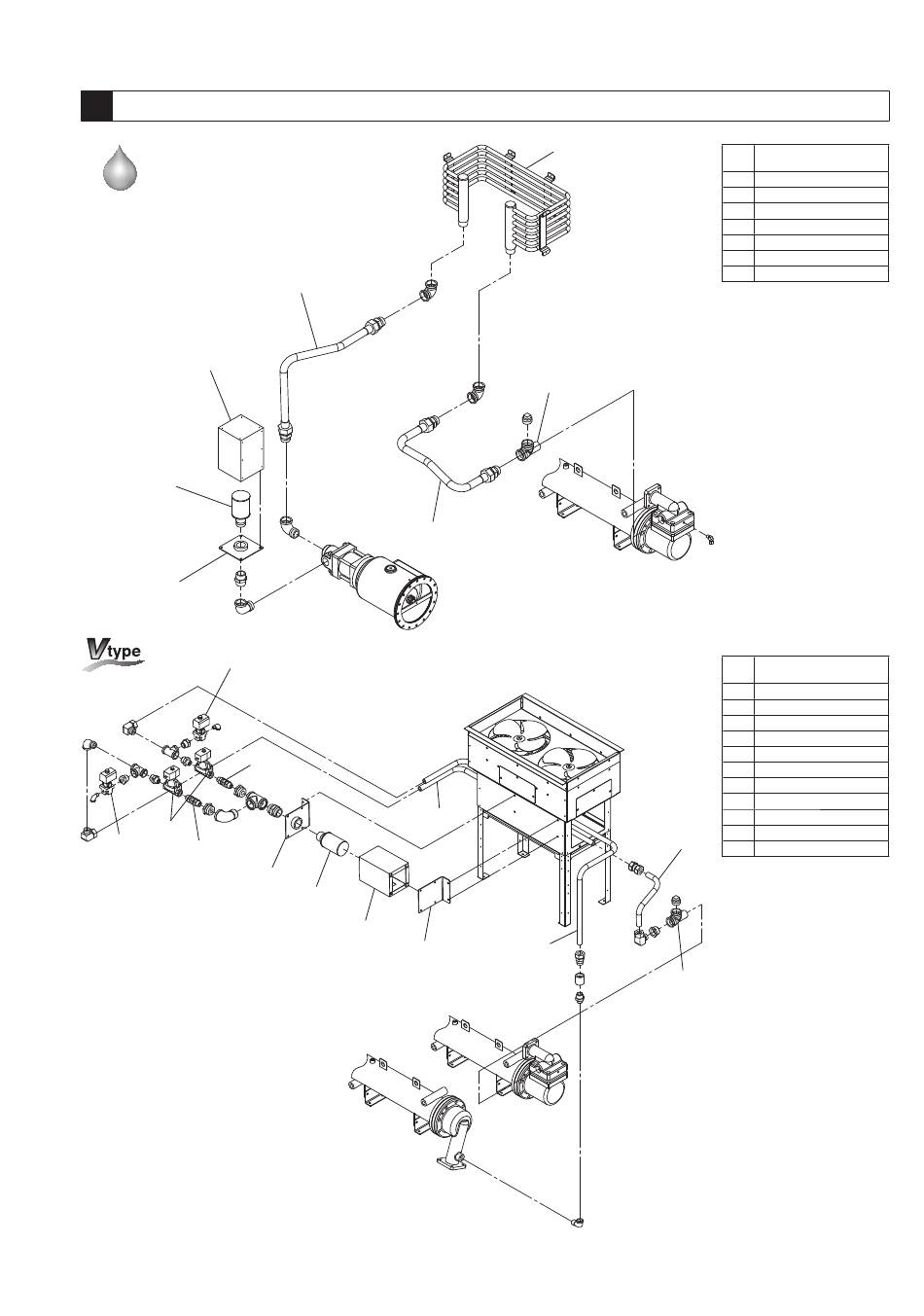

Blowoff Piping
13
Water-Cooled
[Fixed speed type]
902
900
901
E22
E23
E21
E22
E23
E94
E95
E95
901
900
902
E80
E93
A90
E96
73
Ref.
Description
No.
900
Blowoff Silencer
901
Seat, blowoff silencer
902
Cover, blowoff silencer
A90
Tee Fitting
E93
Blowoff Cooler
E94
Blowoff Air Piping (1)
E95
Blowoff Air Piping (2)
Ref.
Description
No.
900
Blowoff Silencer
901
Seat, blowoff silencer
902
Cover, blowoff silencer
A90
Tee Fitting
E21
Blowoff Solenoid Valve (1)
E22
Blowoff Solenoid Valve (2)
E23
Adapter
E80
Support, silencer cover
E94
Blowoff Air Piping (1)
E95
Blowoff Air Piping (2)
E94
E96
Blowoff Air Piping (3)
A90
