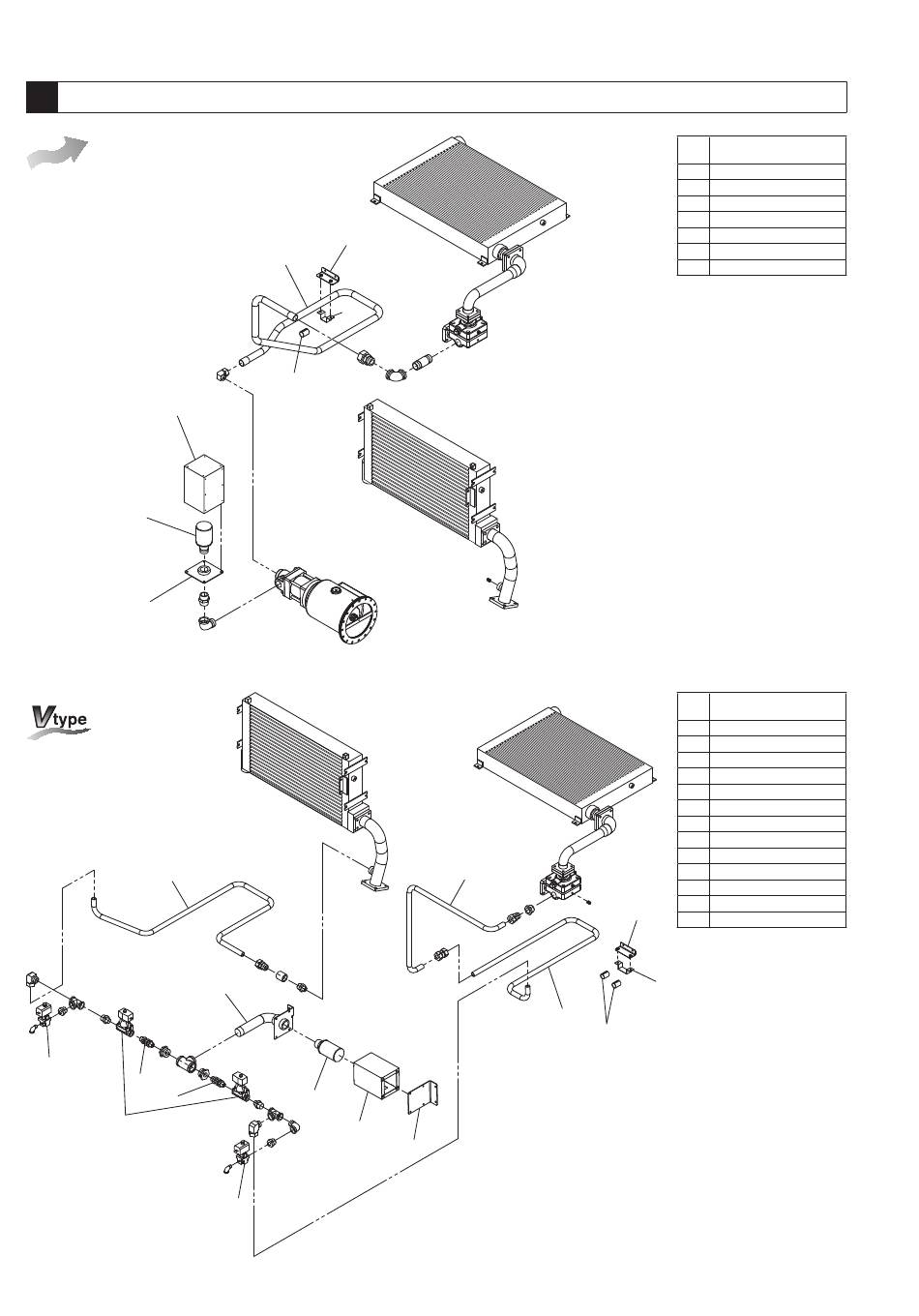

Blowoff Piping
13
Air-Cooled
[Fixed speed type]
902
900
901
E96
E22
E23
E23
E21
E33
E94
E34
B38
901
900
902
E22
E94
E95
E80
72
Ref.
Description
No.
900 Blowoff Silencer
901 Seat, blowoff silencer
902 Cover, blowoff silencer
B38 Plate, blowoff piping
E33 Support, blowoff piping (1)
E34 Support, blowoff piping (2)
E94 Blowoff Air Piping
Ref.
Description
No.
900 Blowoff Silencer
901 Seat, blowoff silencer
902 Cover, blowoff silencer
B38 Plate, blowoff piping
E21 Blowoff Solenoid Valve (1)
E22 Blowoff Solenoid Valve (2)
E23 Adapter
E33 Support, blowoff piping (1)
E34 Support, blowoff piping (2)
E80 Support, silencer cover
E94 Blowoff Air Piping (1)
E95 Blowoff Air Piping (2)
E33
E96 Blowoff Air Piping (3)
E34
B38
