Hitachi NEXT Series Service Manual page 73

Oil-free screw compressor
Hide thumbs Also See for NEXT Series:
Table of Contents

Advertisement

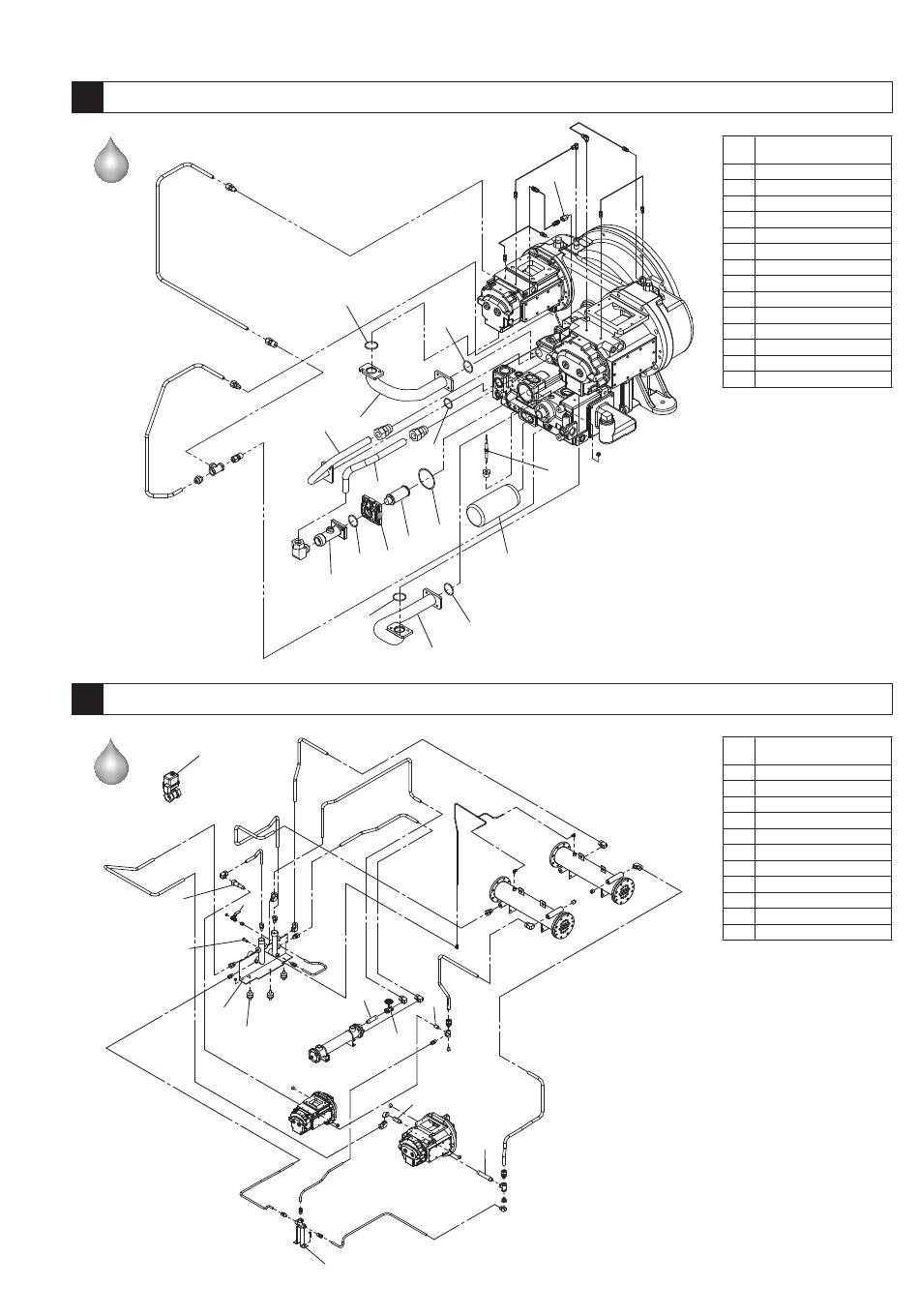

Oil Piping (2)
11
Water-Cooled
Water Piping
12
C06
Water-Cooled
096
009
011
018
H58
D35
D35
774
771
H73
770
369
880
396
H73
D80
D35
D35
773
012
016
017
008
009
D33
71
828
888
 882
※996
Ref.
Description
No.
369 O-Ring, strainer cover
396 Strainer Cover
770 Oil Piping (OP suction)
771 Oil Piping (OP discharge)
773 Oil Drain Piping (1)
774 Oil Drain Piping (2)
828 Orifice
880 Oil Strainer
882 Oil Filter Element
888 Oil Temperature Sensor
996 Filter Wrench A
D35 O-Ring
D80 Seat, oil piping
H73 O-Ring
※ Does not come with the product.
Ref.
Description
No.
008 Piping (1)
009 Piping (2)
011 Pet Cock
012 Piping (3)
016 Piping (4)
017 Stop Valve, for a water flow control
018 Seat, cooling water piping
096 Stop Valve, drainage
C06 Motorized Water Isolation Valve
D33 Support, water piping
H58 Vibration Isolation Rubber
