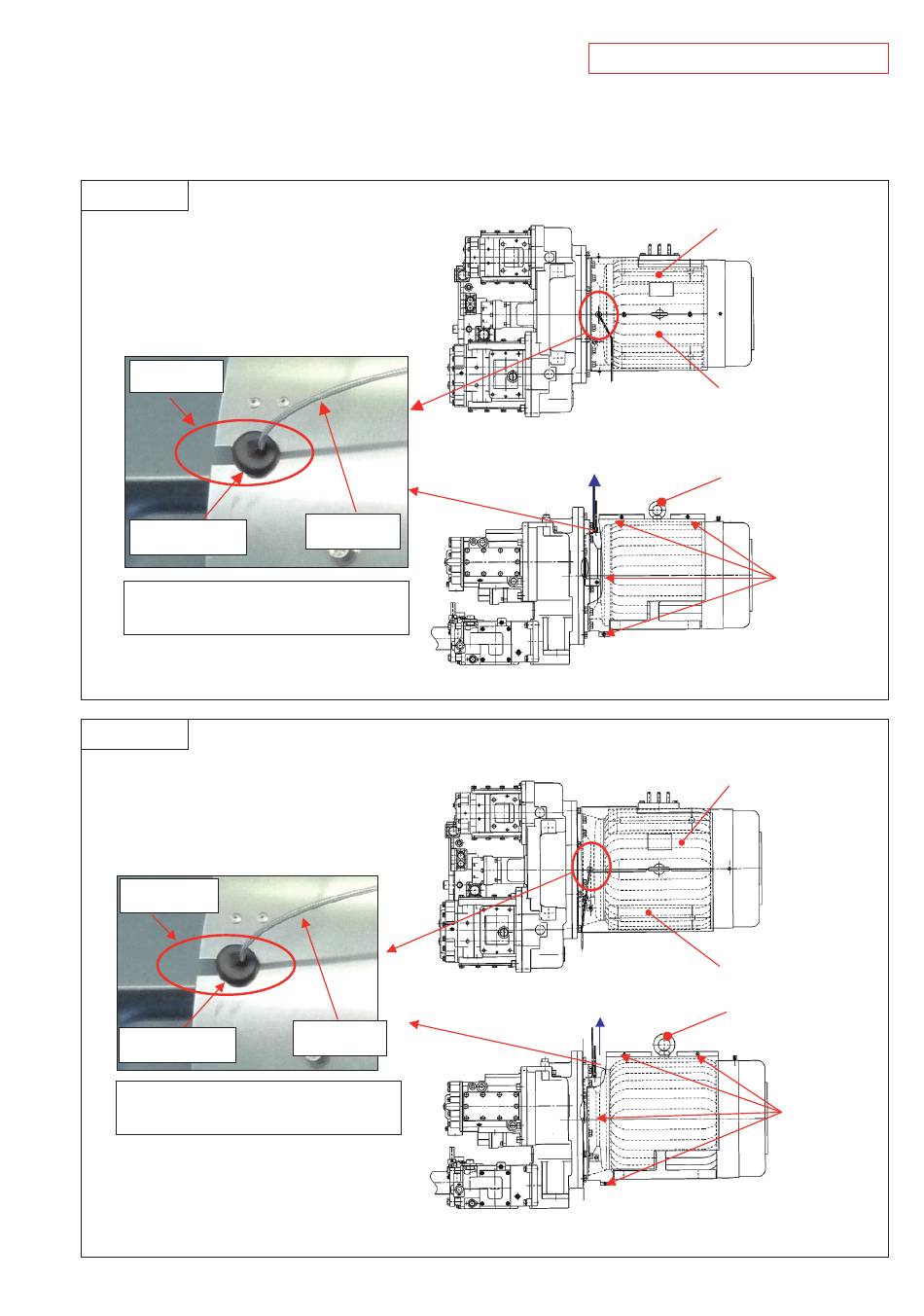

(3) Fix the motor cover 1 and 2 to the motor cover fixing bracket by M6 bolt and motor eyebolt.
55kW
Notch
Rubber Bush
Be sufficiently careful not to
damage the temperature sensor.
75kW
Notch
Rubber Bush
Be sufficiently careful not to
damage the temperature sensor.
Temperature
Sensor
Temperature
Sensor
Confidential to Customer
Pull out the
temperature sensor
Pull out the
temperature sensor
33
Motor Cover 2
Motor Cover 1
Motor eyebolt
5×M6-25
Motor Cover 2
Motor Cover 1
Motor eyebolt
5×M6-25
