4.14 The procedure to attach the motor cover

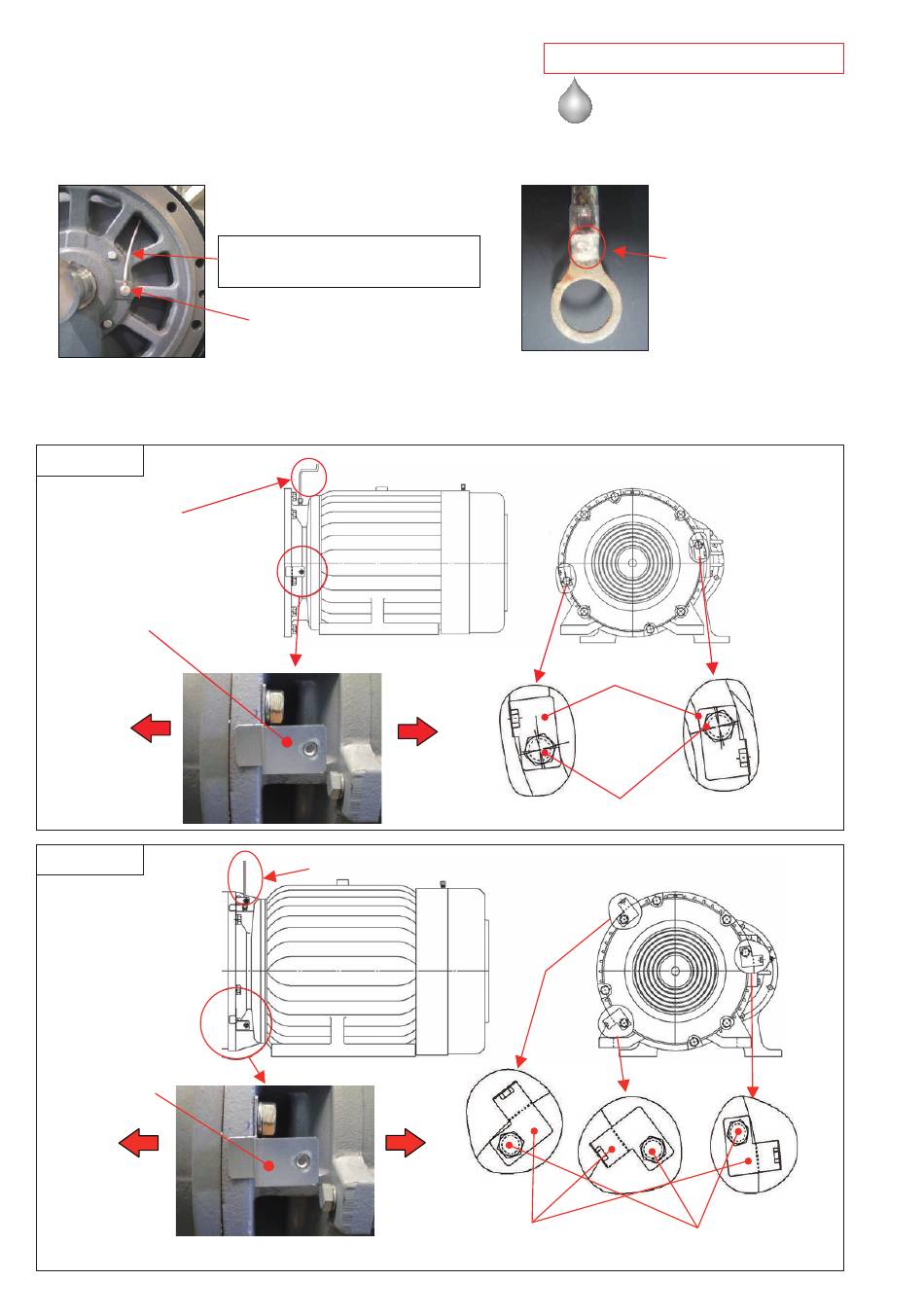

(1) Fixed the thermostat on the DE side of end bracket.
Treat the cable with particular caution.
(2) Assemble the motor with gear casing by spigot joint and tighten the M16 bolt with motor cover fixing bracket.
Attach the grease supply pipe on the motor DE side.
55kW
Grease
Supply Pipe
Motor Cover
Fixing bracket
Air End side
75kW
Motor Cover
Fixing bracket
Air End side
Be sufficiently careful not to
damage the temperature sensor.
Temperature Sensor
Fixing Bolt (M8×16)
Motor side
Grease Supply Pipe
Motor side
Confidential to Customer
Water-Cooled
(Figure viewed from motor anti-load side)
Motor Cover
Fixing bracket
Motor Connection Bolts (M16)
(Figure viewed from motor anti-load side)
Motor Cover
Fixing bracket
32
The temperature sensing
portion is brazed into the
portion circled in red. Be
careful not to damage this
b r a z e d p o r t i o n w h e n
fixing.
Motor Connection Bolts (M16)
