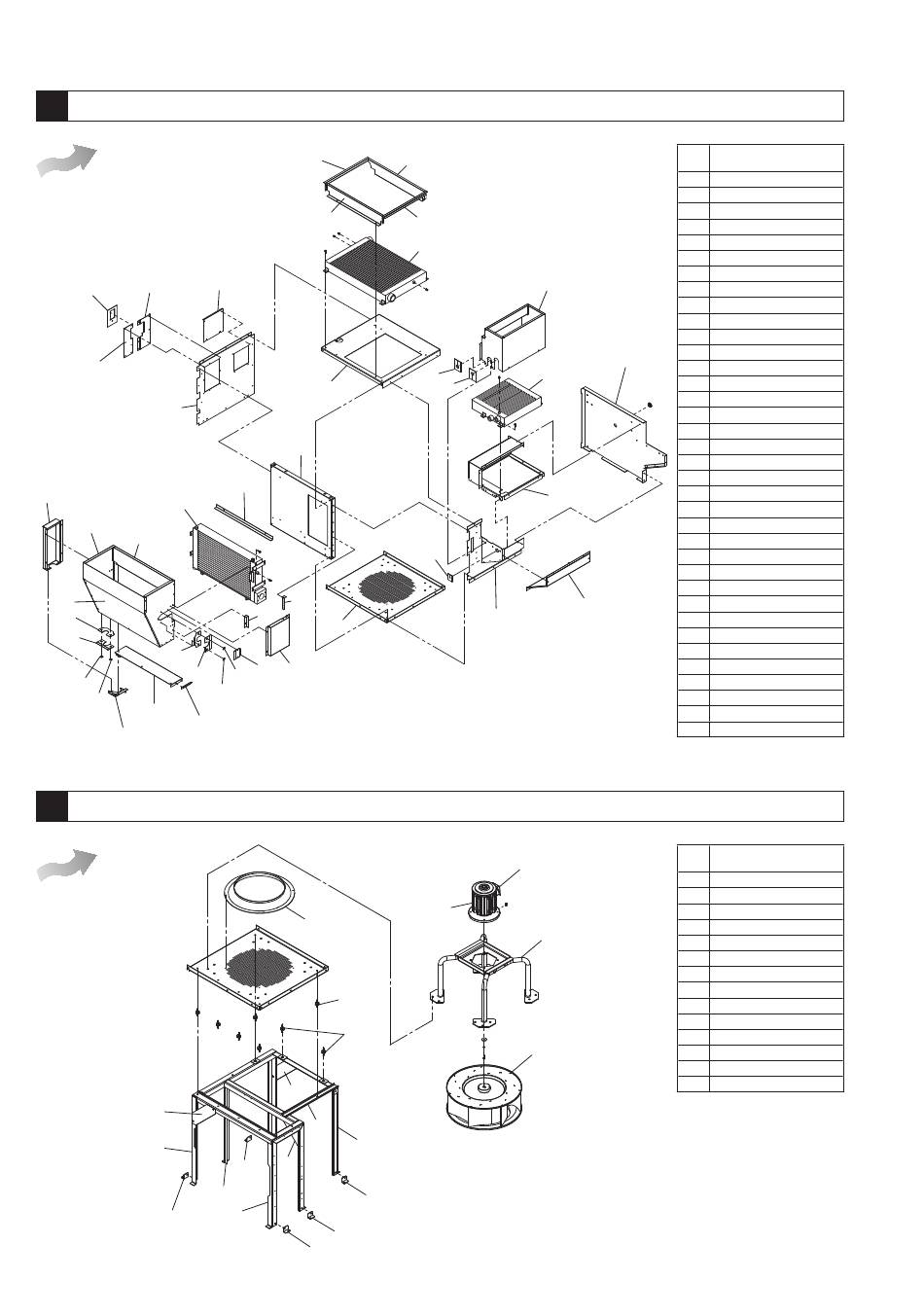

Coolers & Ventilating Fan (1)
5
Air-Cooled
586
H72
585
645
685
623
692
694
693
582
581
582
581
584
584
649
652
691
Coolers & Ventilating Fan (2)
5
Air-Cooled
636
632
630
696
698
E51
646
643
648
651
650
628
583
653
584
584
678
F47
636
635
633
636
630
634
629
631
629
630
697
696
608
695
H71
639
H71
647
F61
642
681
J18
686
679
60
Ref.
Description
No.
581 Partition (1)
582 Partition (2)
583 Partition (3)
584 Plate Washer
585 Maintenance Cover (3)
586 Maintenance Cover (4)
608 Aftercooler
623 Intercooler
628 Duct Panel (1)
639 Oil cooler
642 Duct Panel (2)
643 Duct Panel (3)
644
644 Duct Panel (4)
645 Duct Panel (5)
646 Duct Panel (6)
647 Duct Panel (7)
648 Duct Panel (8)
649 Duct Panel (9)
650 Duct Panel (10)
651 Duct Panel (11)
652 Duct Panel (12)
653 Cover (1), Intercooler
685 Cover (2), Intercooler
691 Cover (3), Intercooler
692 Duct Panel (1), Intercooler
693 Duct Panel (2), Intercooler
694 Duct Panel (3), Intercooler
695 Duct,Oil cooler
E52
696 Duct Panel (1), Aftercooler
697 Duct Panel (2), Aftercooler
698 Duct Panel (3), Aftercooler
E51 Maintenance Cover (1)
E52 Maintenance Cover (2)
F61 Magnet Rubber (1)
H71 Magnet Rubber (2)
H72 Magnet Rubber (3)
Ref.
Description
No.
681 Fan Motor
686 Support, cooling fan
678 Bell Mouth
679 lmpeller
629 Fixing Bracket (1)
630 Fixing Bracket (2)
631 Support (1), base frame
632 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
635 Support (5), base frame
636 Support (6), base frame
F47 Rubber Bush
J18 Fan Shaft Key
※ Only for 75 kW.
