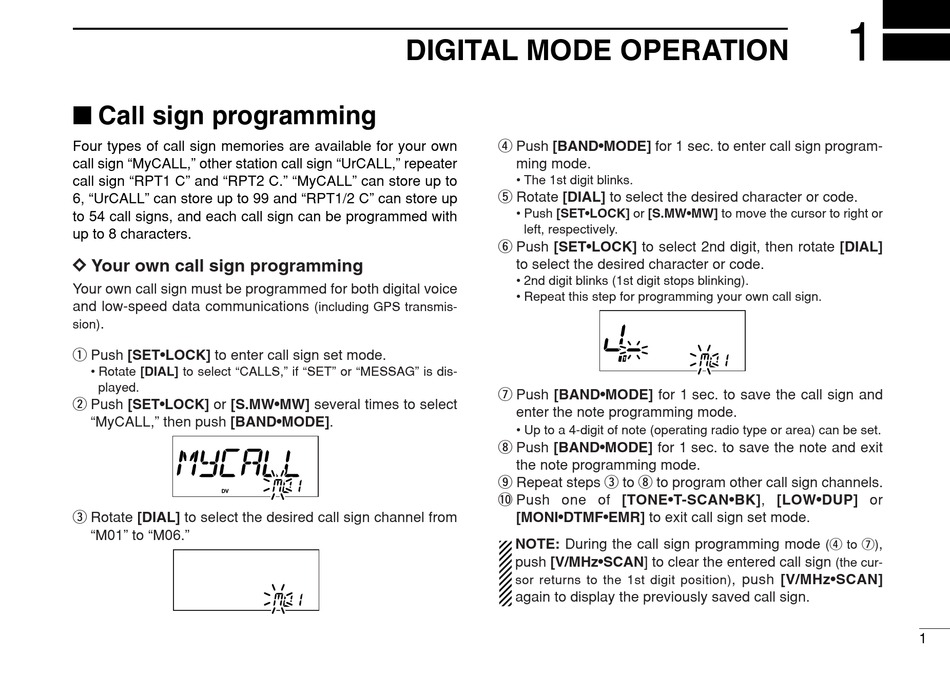

I Call sign programming

Four types of call sign memories are available for your own
call sign "MyCALL," other station call sign "UrCALL," repeater
call sign "RPT1 C" and "RPT2 C." "MyCALL" can store up to
6, "UrCALL" can store up to 99 and "RPT1/2 C" can store up
to 54 call signs, and each call sign can be programmed with
up to 8 characters.
D D Your own call sign programming
Your own call sign must be programmed for both digital voice
and low-speed data communications
.
sion)
q Push [SET•LOCK] to enter call sign set mode.
• Rotate [DIAL] to select "CALLS," if "SET" or "MESSAG" is dis-
played.
w Push [SET•LOCK] or [S.MW•MW] several times to select
"MyCALL," then push [BAND•MODE].
e Rotate [DIAL] to select the desired call sign channel from
"M01" to "M06."

DIGITAL MODE OPERATION

(including GPS transmis-
r Push [BAND•MODE] for 1 sec. to enter call sign program-
ming mode.
• The 1st digit blinks.
t Rotate [DIAL] to select the desired character or code.
• Push [SET•LOCK] or [S.MW•MW] to move the cursor to right or
left, respectively.
y Push [SET•LOCK] to select 2nd digit, then rotate [DIAL]
to select the desired character or code.
• 2nd digit blinks (1st digit stops blinking).
• Repeat this step for programming your own call sign.
u Push [BAND•MODE] for 1 sec. to save the call sign and
enter the note programming mode.
• Up to a 4-digit of note (operating radio type or area) can be set.
i Push [BAND•MODE] for 1 sec. to save the note and exit
the note programming mode.
o Repeat steps e to i to program other call sign channels.
!0 Push one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
NOTE: During the call sign programming mode
push [V/MHz•SCAN] to clear the entered call sign
sor returns to the 1st digit position)
again to display the previously saved call sign.
1
(r to u) ,
(the cur-
, push [V/MHz•SCAN]
