1
DIGITAL MODE OPERATION

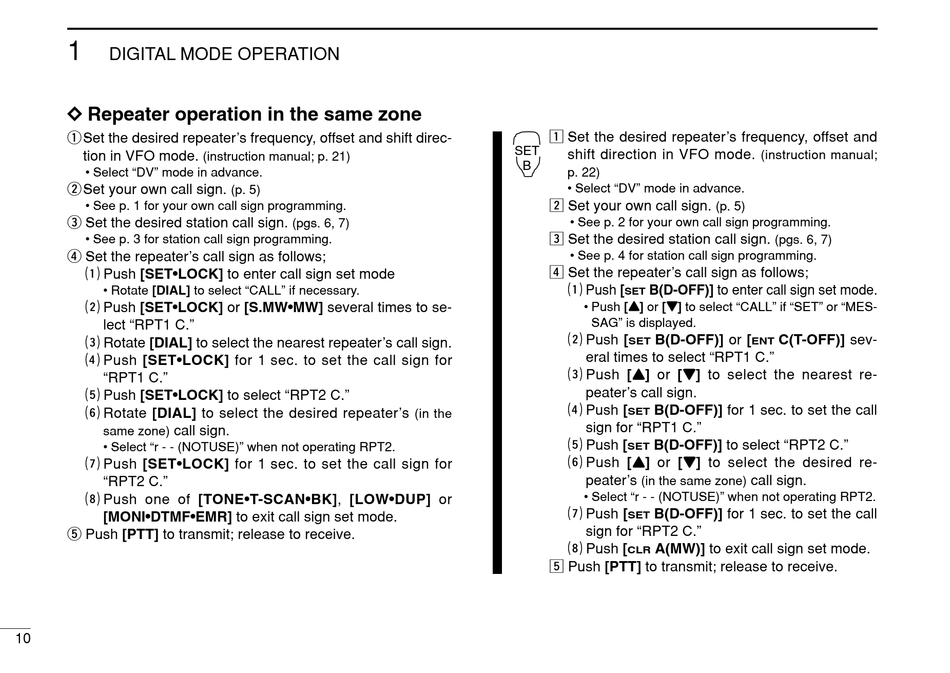

D D Repeater operation in the same zone
qSet the desired repeater's frequency, offset and shift direc-
tion in VFO mode.
• Select "DV" mode in advance.
w Set your own call sign.
• See p. 1 for your own call sign programming.
e Set the desired station call sign.
• See p. 3 for station call sign programming.
r Set the repeater's call sign as follows;
a Push [SET•LOCK] to enter call sign set mode
• Rotate [DIAL] to select "CALL" if necessary.
s Push [SET•LOCK] or [S.MW•MW] several times to se-
lect "RPT1 C."
d Rotate [DIAL] to select the nearest repeater's call sign.
f Push [SET•LOCK] for 1 sec. to set the call sign for
"RPT1 C."
g Push [SET•LOCK] to select "RPT2 C."
h Rotate [DIAL] to select the desired repeater's
call sign.
same zone)
• Select "r - - (NOTUSE)" when not operating RPT2.
j Push [SET•LOCK] for 1 sec. to set the call sign for
"RPT2 C."
k Push one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
t Push [PTT] to transmit; release to receive.
10
(instruction manual; p. 21)
(p. 5)
(pgs. 6, 7)
z Set the desired repeater's frequency, offset and
SET
shift direction in VFO mode.
B
p. 22)
• Select "DV" mode in advance.
x Set your own call sign.
• See p. 2 for your own call sign programming.
c Set the desired station call sign.
• See p. 4 for station call sign programming.
v Set the repeater's call sign as follows;
a Push [
• Push [Y Y ] or [Z Z ] to select "CALL" if "SET" or "MES-
SAG" is displayed.
s Push [
eral times to select "RPT1 C."
d Push [Y Y ] or [Z Z ] to select the nearest re-
peater's call sign.
f Push [
(in the
sign for "RPT1 C."
g Push [
h Push [Y Y ] or [Z Z ] to select the desired re-
peater's
• Select "r - - (NOTUSE)" when not operating RPT2.
j Push [
sign for "RPT2 C."
k Push [
b Push [PTT] to transmit; release to receive.
(instruction manual;
(p. 5)
(pgs. 6, 7)
B(D-OFF)] to enter call sign set mode.
SET
B(D-OFF)] or [ C(T-OFF)] sev-
SET ENT
B(D-OFF)] for 1 sec. to set the call
SET
B(D-OFF)] to select "RPT2 C."
SET
call sign.
(in the same zone)
B(D-OFF)] for 1 sec. to set the call
SET
A(MW)] to exit call sign set mode.
CLR
