Note: This unit is a 2G quad band system, operating on standard 2G network frequencies of
850/900/1800/1900MHz. Ensure the SIM has calling credit, and can make and receive calls on a
mobile cell phone.
POWER OFF
45 chamfer OUT.
Copper pads DOWN.
Press until "Click".
Micro SIM
Insert this
way!
24v DC
Optional gate
position limit switch
P a g e | 5

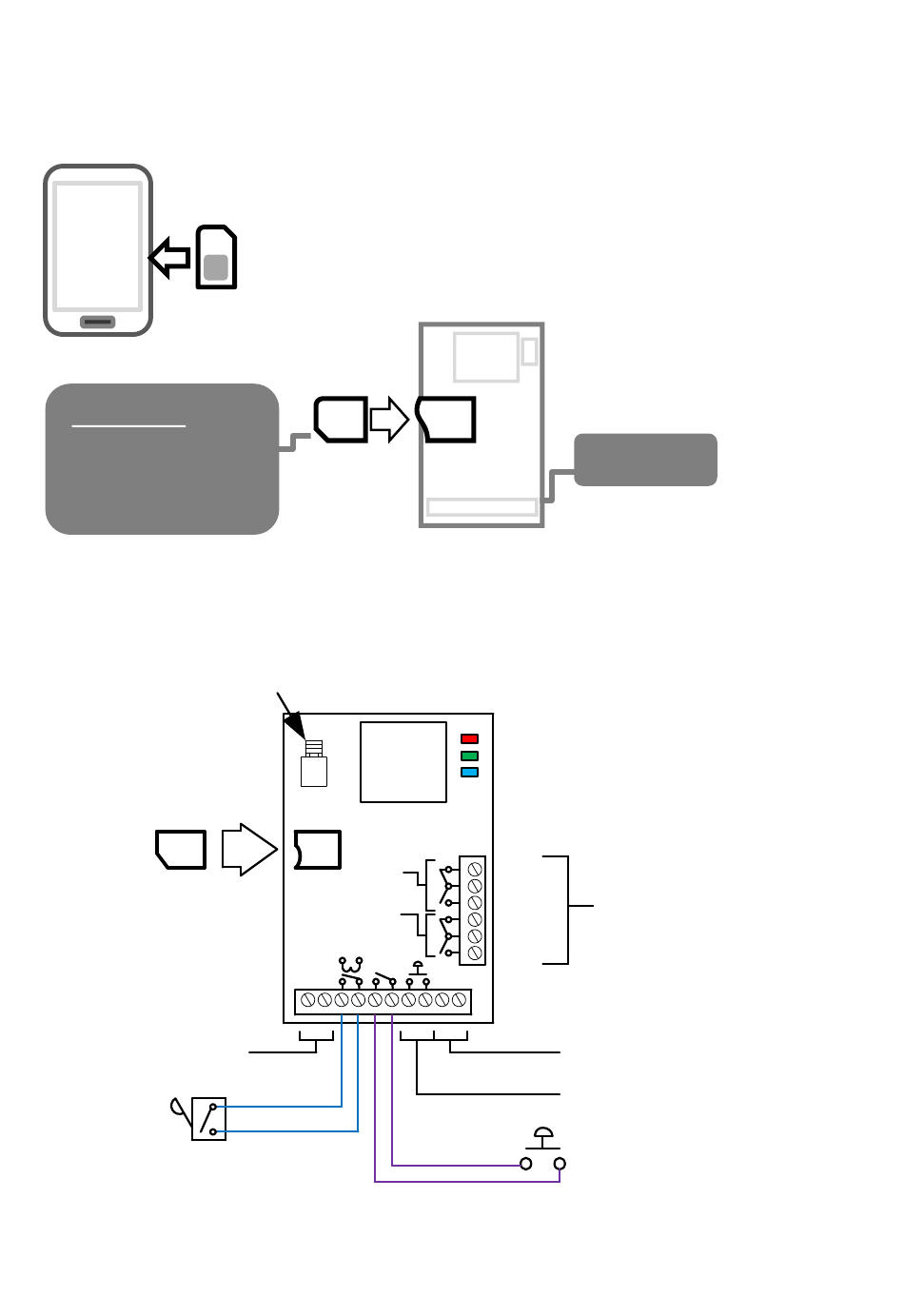

Inserting the SIM card

Please ensure the SIM card is a 2G compatible Micro SIM card. The
SIM may also be 3G and 4G capable as well, as long as both the
SIM and the network also support 2G. Do not use a SIM card for a
tablet, as these only support data, and do not support voice and
SMS. You simply require a mobile phone type SIM card.
SIM
Connections on the GSM Controller
Antenna connection
GSM
modem
Out 1
Out 2
24v
eg
ac/dc
GSM Board
Power
CPU
Signal LED
N/C
COM
N/O
N/C
COM
N/O
12v dc
12v dc output (not
used)
Pre-wired to push button
Optional exit button,
triggers output 1 for
programmed time.
Relay
outputs
