7. The message in Figure 8 appears when the installation is
complete. Click Next.

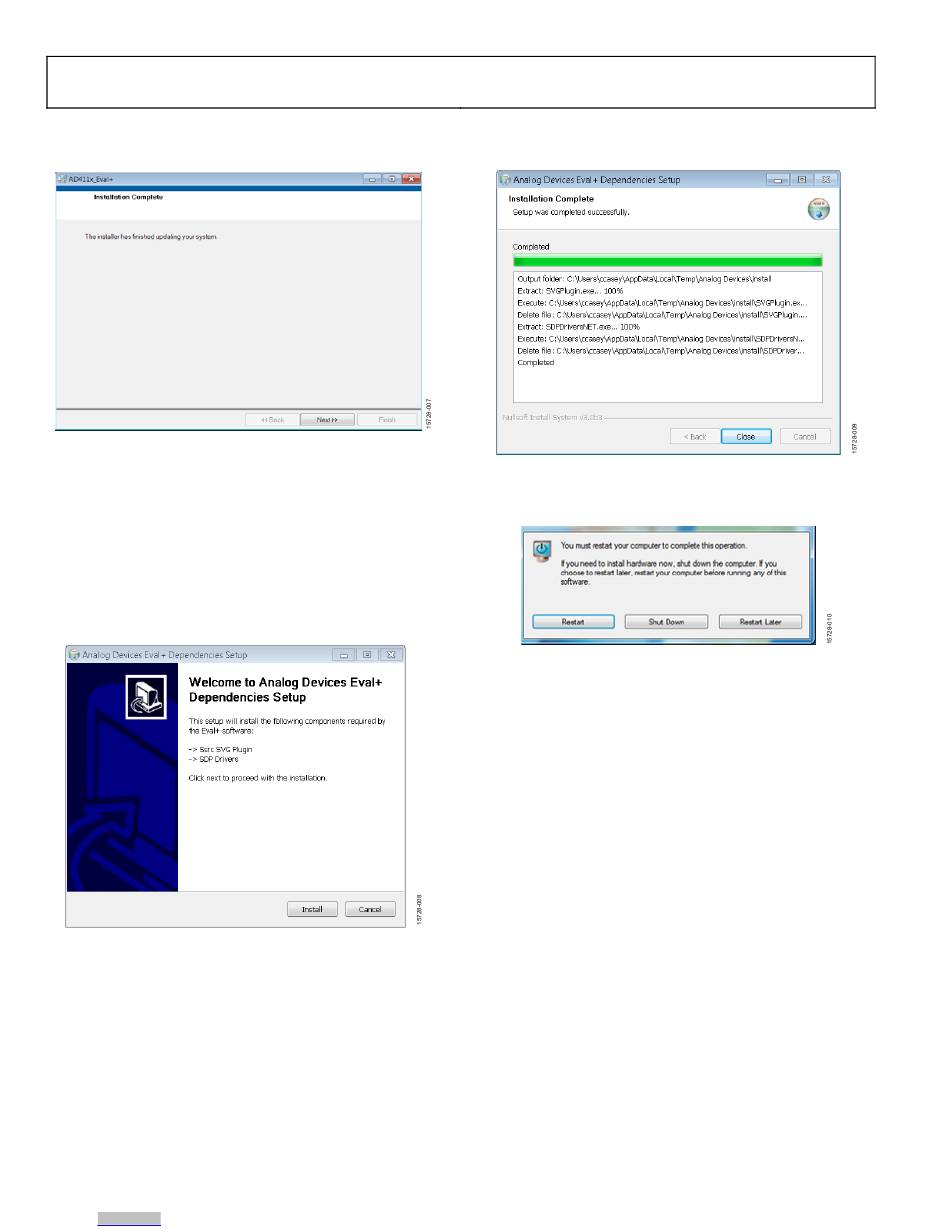

Figure 8. AD411x Eval+ Software Installation: Indicating When the
Installation Is Complete
Installing the Eval+ Dependencies Drivers
After the installation of the evaluation software is complete, a
welcome window displays for the installation of the Analog
Devices Eval+ dependencies. Perform the following steps to
install the dependencies drivers:
1. With the SDP-B board still disconnected from the USB
port of the PC, ensure that all other applications are closed
and click Install.
Figure 9. Analog Devices Eval+ Dependencies Setup:
Beginning the Drivers Installation
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
2. To complete installation of the drivers, click Close, which
closes the installation setup wizard.
Figure 10. Analog Devices Eval+ Dependencies Setup:
Completing the Drivers Setup Wizard
3. Before using the evaluation board, restart the PC.
Figure 11. Analog Devices Eval+ Dependencies Setup:
Rev. A | Page 8 of 26
EVAL-AD4111SDZ User Guide
Restarting the PC
