Cortex FT-10 User Manual page 9

10
36
15
35
37

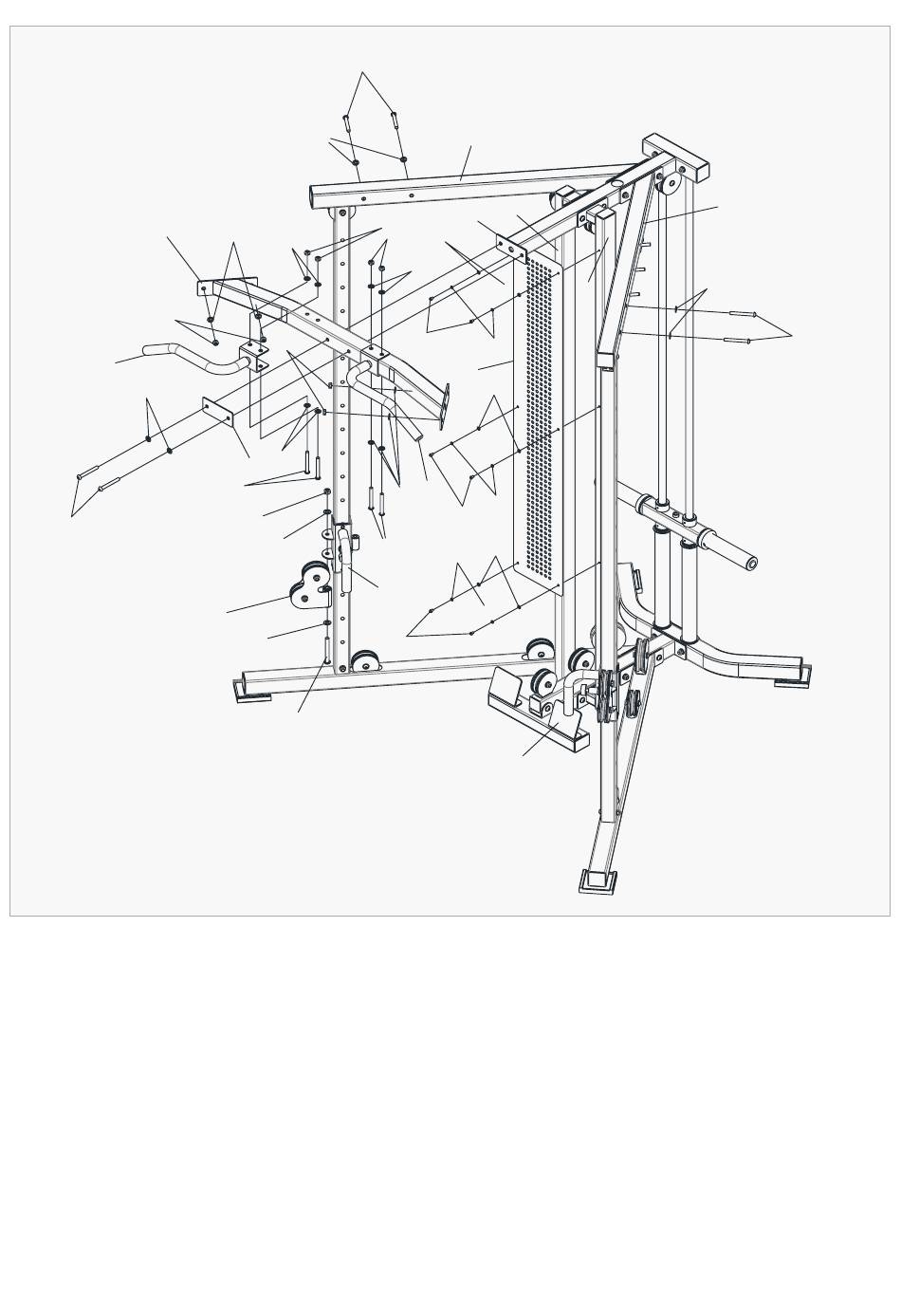

STEP 4
1. Attach cross connection frame (10) to the right beam frame (7) and top connection frame (6), using the
reinforcing plate (31), screw M10X85 (37), screw M10X80 (38), flat washer Ф10 (35) and lock nut M10 (36).
2. Attach the right hand (15) to cross connection frame (10), using screw M10X85 (37), flat washer Ф10
(35) and lock nut M10 (36). The same as the left hand (14) and cross connection frame (10).
3. Attach the cover plate (30) to the long connection frame (13) and long connection frame (19), using
screw M6X10 (45), flat washer Ф6 (43) and spring washer Ф6 (44).
4. Attach double pulley bracket (21) to the right to adjust (11), using screw M12X100 (42), flat washer Ф12
(40) and lock nut M12 (41). The same as the left to adjust (12) and double pulley bracket (21).
38
35
35
35
36
35
31
37
41
40
37
11
21
40
42
7
13
6
36
43
35
45
44
30
43
14
35
44
45
43
44
45
12
8
35
ASSEMBLY INSTRUCTIONS |
38
9
