Cortex FT-10 User Manual page 7

36

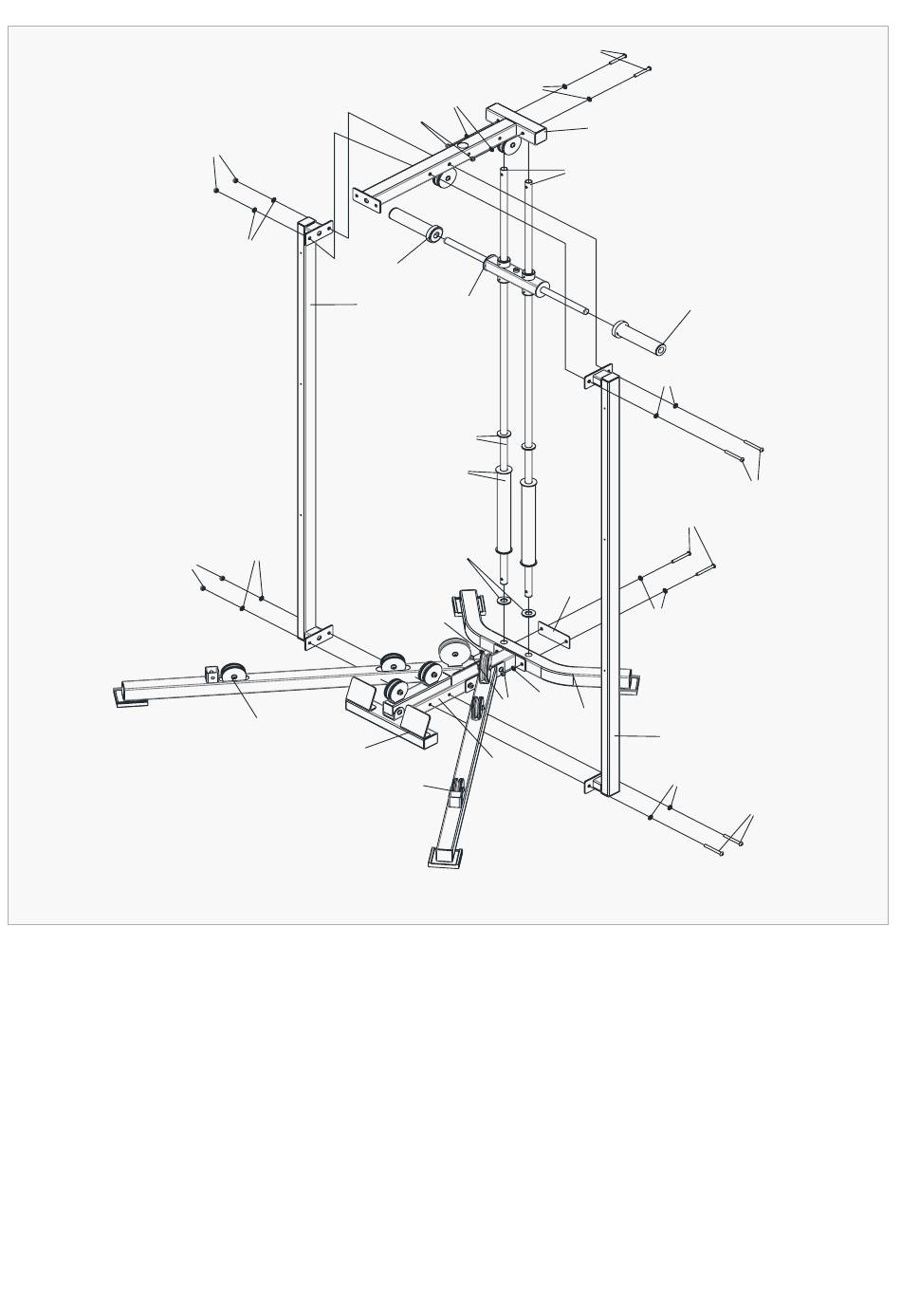

STEP 2
1. Attach rear bottom frame (1) to the pipe run (27) and the connection frame (2), using the
reinforcing plate (32), screw M10X85 (37), flat washer Ф10 (35) and lock nut M10 (36).
2. Attach the pipe run (27) to top connection frame (6), support frame (9) and the sliding plane (16),
using rubber (33), screw M10X75 (48), flat washer Ф10 (35) and lock nut M10 (36).
3. Attach long connection frame (13) to top connection frame (6) and the connection frame (2), using
screw M10X85 (37), flat washer Ф10 (35) and lock nut M10 (36). The same as long connection frame
(19).
36
35
13
35
4
3
35
35
36
17
16
33
9
33
32
35
35
36
2
5
48
6
27
17
35
37
35
1
19
35
ASSEMBLY INSTRUCTIONS |
37
37
7
