Cortex FT-10 User Manual page 8

39
34
39
35
35

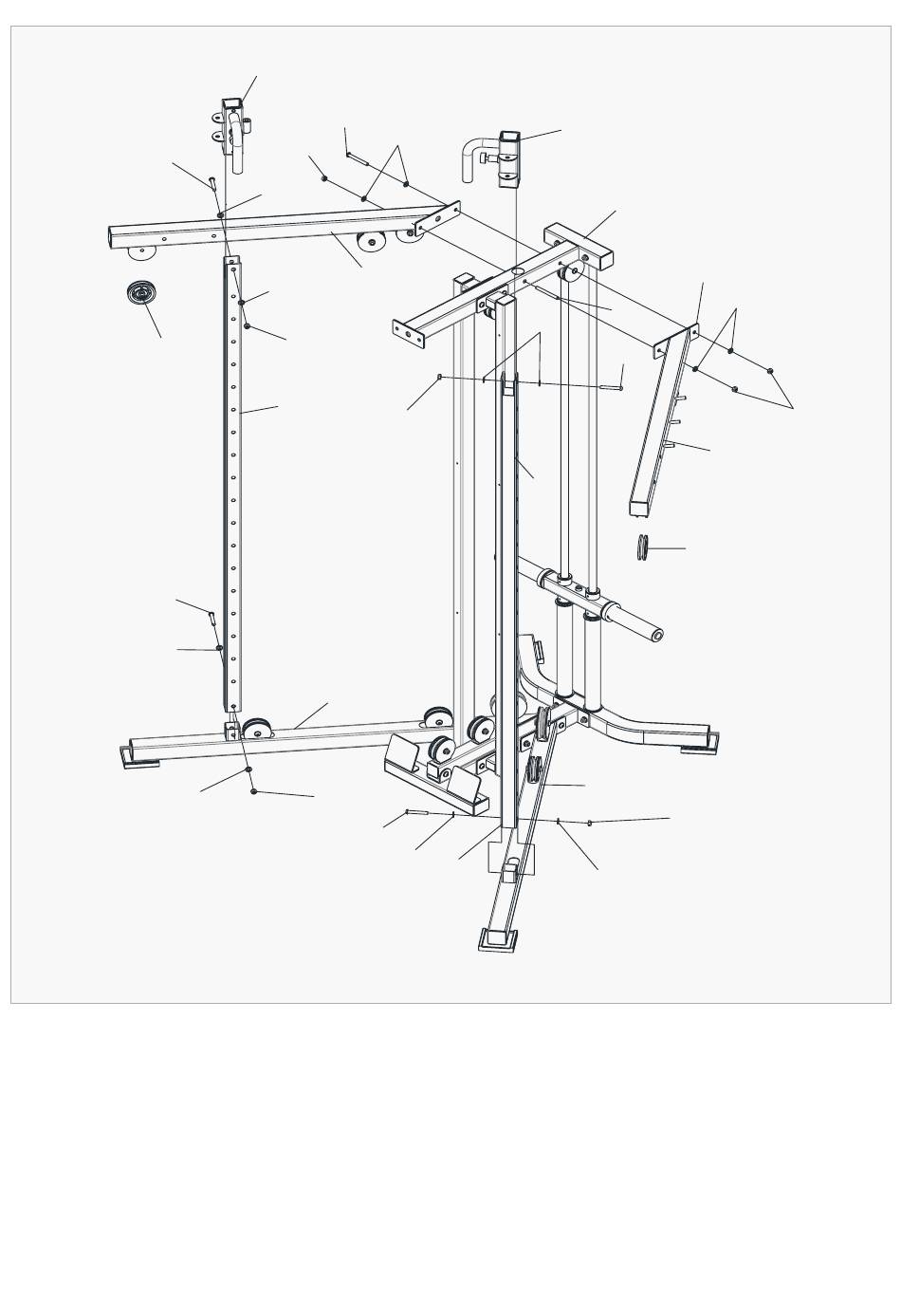

STEP 3
1. Attach top connection frame (6) to the right beam frame (7) and the left beam frame (8), using
screw rod (28), screw M10X85 (37), flat washer Ф10 (35) andlock nut M10 (36).
2. Attach the tube (29) to the right beam frame (7) and right bottom connection frame (4), using the
(11), the pulley Ф89 (34), screw M10X65 (39), flat washer Ф10 (35), lock nut M10 (36). The
right to adjust
same as the left beam frame (8) and left bottom connection frame (5).
8 | ASSEMBLY INSTRUCTIONS
11
37
35
36
35
7
35
36
29
36
4
36
39
35
12
35
29
5
29
35
6
8
35
28
39
8
34
36
36
