2.1

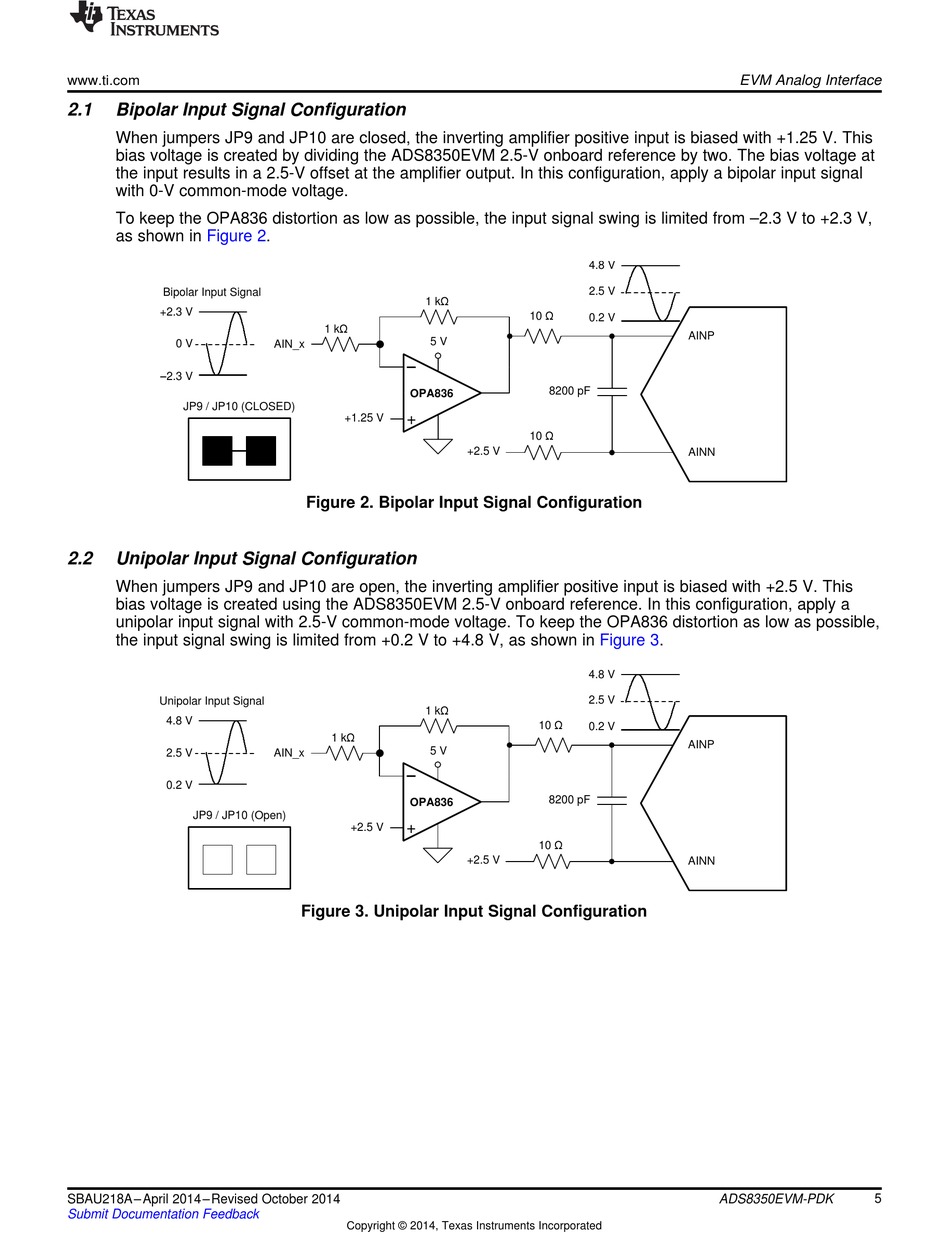

Bipolar Input Signal Configuration

When jumpers JP9 and JP10 are closed, the inverting amplifier positive input is biased with +1.25 V. This
bias voltage is created by dividing the ADS8350EVM 2.5-V onboard reference by two. The bias voltage at
the input results in a 2.5-V offset at the amplifier output. In this configuration, apply a bipolar input signal
with 0-V common-mode voltage.
To keep the OPA836 distortion as low as possible, the input signal swing is limited from –2.3 V to +2.3 V,
as shown in Figure
Bipolar Input Signal
+2.3 V
0 V
±2.3 V
JP9 / JP10 (CLOSED)
2.2

Unipolar Input Signal Configuration

When jumpers JP9 and JP10 are open, the inverting amplifier positive input is biased with +2.5 V. This
bias voltage is created using the ADS8350EVM 2.5-V onboard reference. In this configuration, apply a
unipolar input signal with 2.5-V common-mode voltage. To keep the OPA836 distortion as low as possible,
the input signal swing is limited from +0.2 V to +4.8 V, as shown in
Unipolar Input Signal
4.8 V
2.5 V
0.2 V
JP9 / JP10 (Open)
SBAU218A – April 2014 – Revised October 2014
Submit Documentation Feedback
2.
1 k
1 k
5 V
AIN_x
Å
OPA836
+
+1.25 V
Figure 2. Bipolar Input Signal Configuration
1 k
1 k
5 V
AIN_x
Å
OPA836
+
+2.5 V
Figure 3. Unipolar Input Signal Configuration
Copyright © 2014, Texas Instruments Incorporated
4.8 V
2.5 V
10
0.2 V
8200 pF
10
+2.5 V
Figure
4.8 V
2.5 V
10
0.2 V
8200 pF
10
+2.5 V
EVM Analog Interface
AINP
AINN
3.
AINP
AINN
