ADS8350EVM-PDK Initial Setup
5.2.2 Verify Jumpers are in the Factory-Default Position and Connect the Hardware
The ADS8350EVM-PDK includes both the ADS8350EVM and the simple capture card controller board;
however, the devices are shipped unconnected. Follow these steps to verify that ADS8350EVM-PDK kit is
configured and connected properly.
Step 1. Verify the microSD card is installed on the back of the simple capture card board; see
Figure
Step 2. Verify the ADS8350EVM jumpers are configured; see
Step 3. Connect the ADS8350EVM board to the simple capture card controller board as
shows.

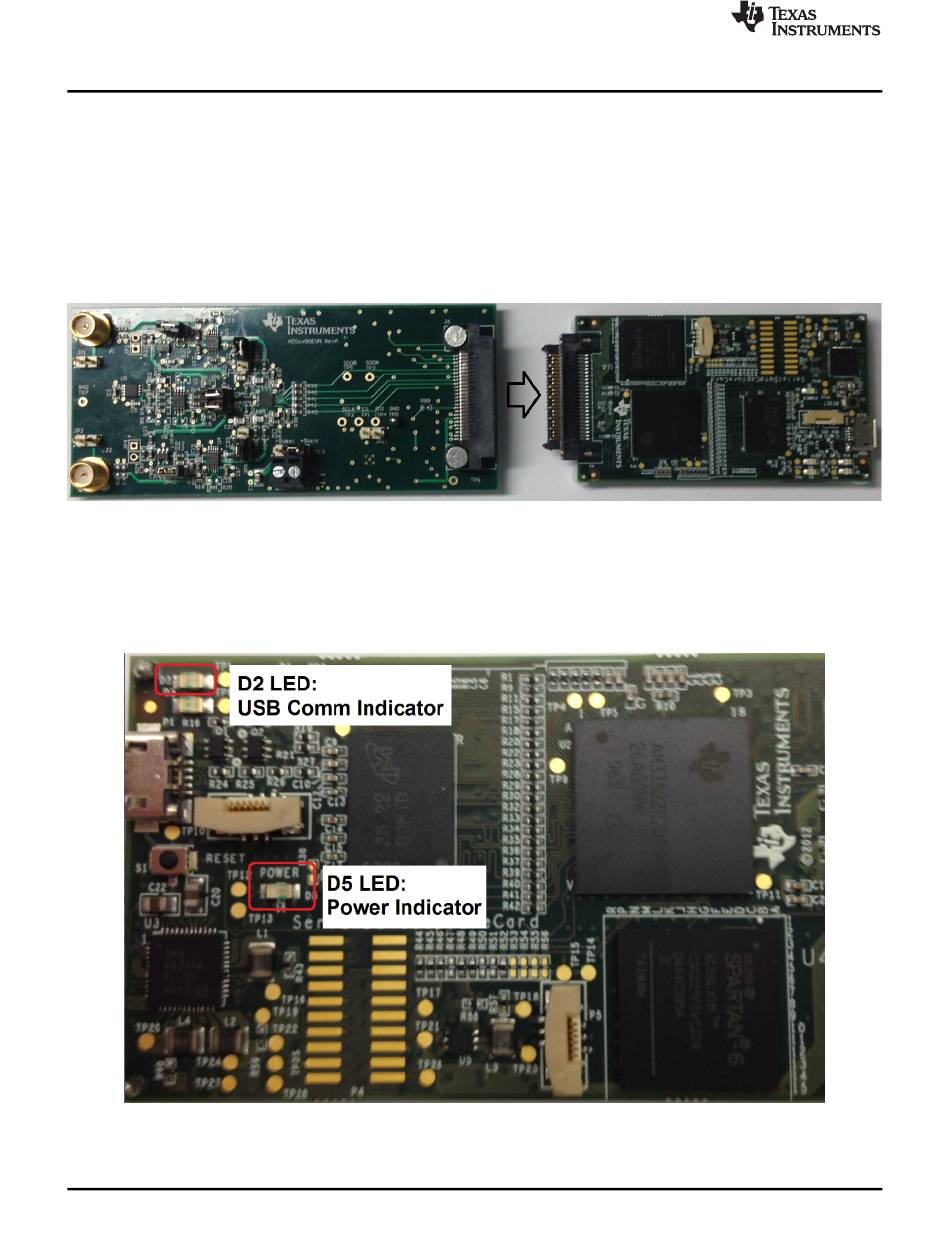

Figure 8. Connecting ADS8350EVM Board to Simple Capture Card Controller Board
Step 4. Connect the simple capture card controller board to the PC through the micro USB cable.
Step 5. Verify that the LED D5 Power Good indicator is illuminated. Wait approximately ten seconds
and verify that diode D2 blinks, indicating that USB communication with the host PC is
functioning properly.
card controller board.
Figure 9. LED Indicators on the Simple Capture Card Board
12
ADS8350EVM-PDK
6.
Figure 9 shows the location of the LED indicators in the simple capture
