Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
(For security-only programming, see next section.)
Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the
gearshift lever is in the neutral position.

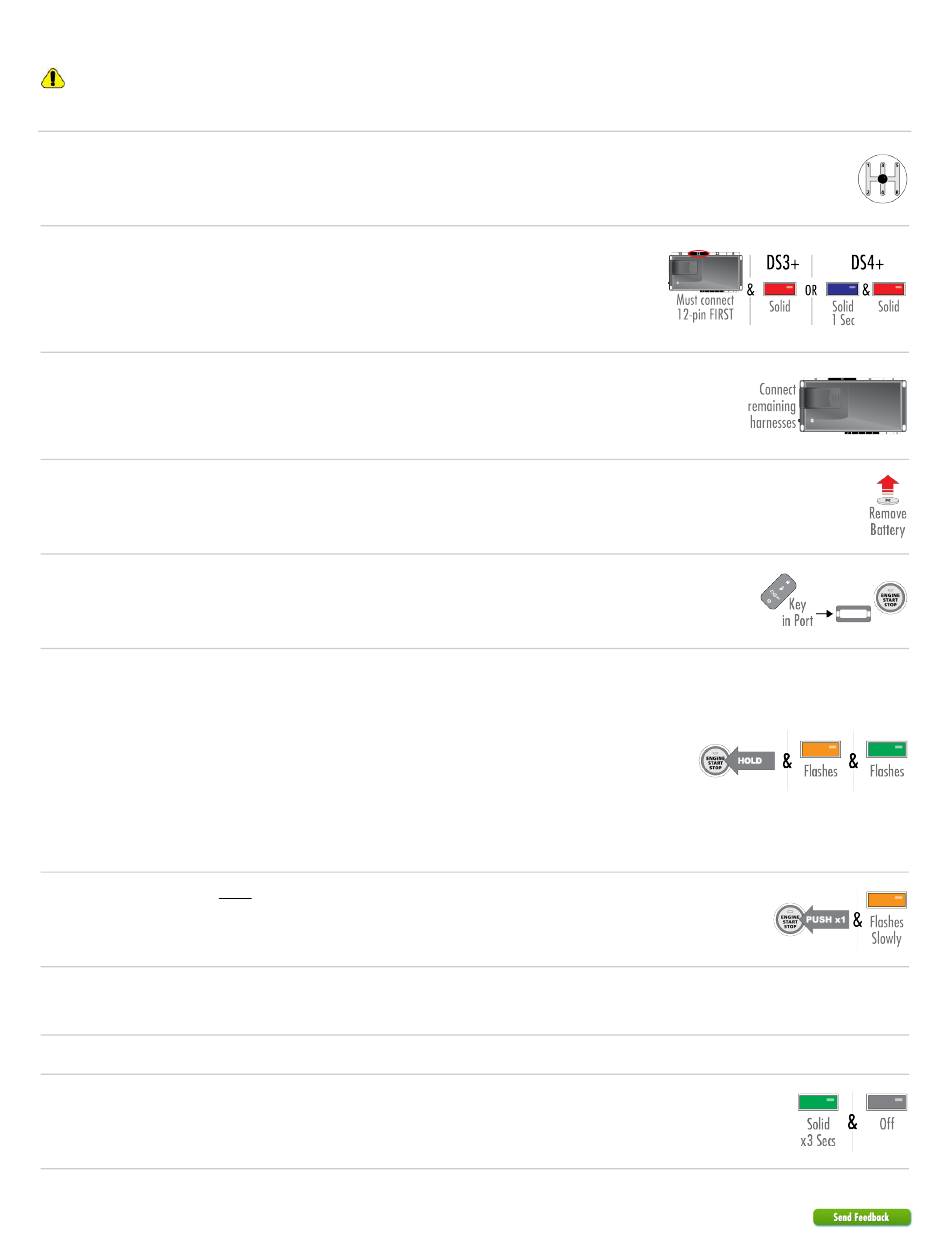

DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
Connect the remaining harnesses to the module.
3
Note: To skip the transponder programming and use convenience features only, press
the programming button 5 times. When the LED turns ON solid orange, proceed to
step 6.
Remove battery from one key fob, and make sure that the other key fob is located
4
more than 10 feet away from vehicle.
Insert the key fob (with battery removed) in the key port.
5
Note:Refer to the "Keyport location" section.
Press and hold the Push-To-Start (PTS) button until the ignition turns ON, then release.
The LED flashes orange then green.
Note: If the LED starts flashing 2x red, press and hold the Push-to-Start (PTS) button with
the brake pedal applied. When the engine begins cranking, let go of the button. The
6
LED flashes orange then green. Proceed to step 7.
Important: If programming fails, perform a soft reset and restart programming.
Note: If the transponder programming was skipped, the LED turns ON solid orange for
3 seconds then shuts OFF when programming is done.
Press the PTS button once to turn the ignition OFF.The LED flashes orange slowly.
Note: If programming the unit using the Directlink app, please follow the instructions
7
from the app. If you are using a computer to flash the module please continue to step
8.
Remove the module from the vehicle, and reconnect it to your computer. The web site
8
will automatically recognize that you are moving onto the second phase of the
programming sequence.
9
Click on Submit Key2GO Request.
Once the configuration is completed, reconnect the module. The LED turns ON solid
10
green for 3 seconds, then turns OFF.
15
