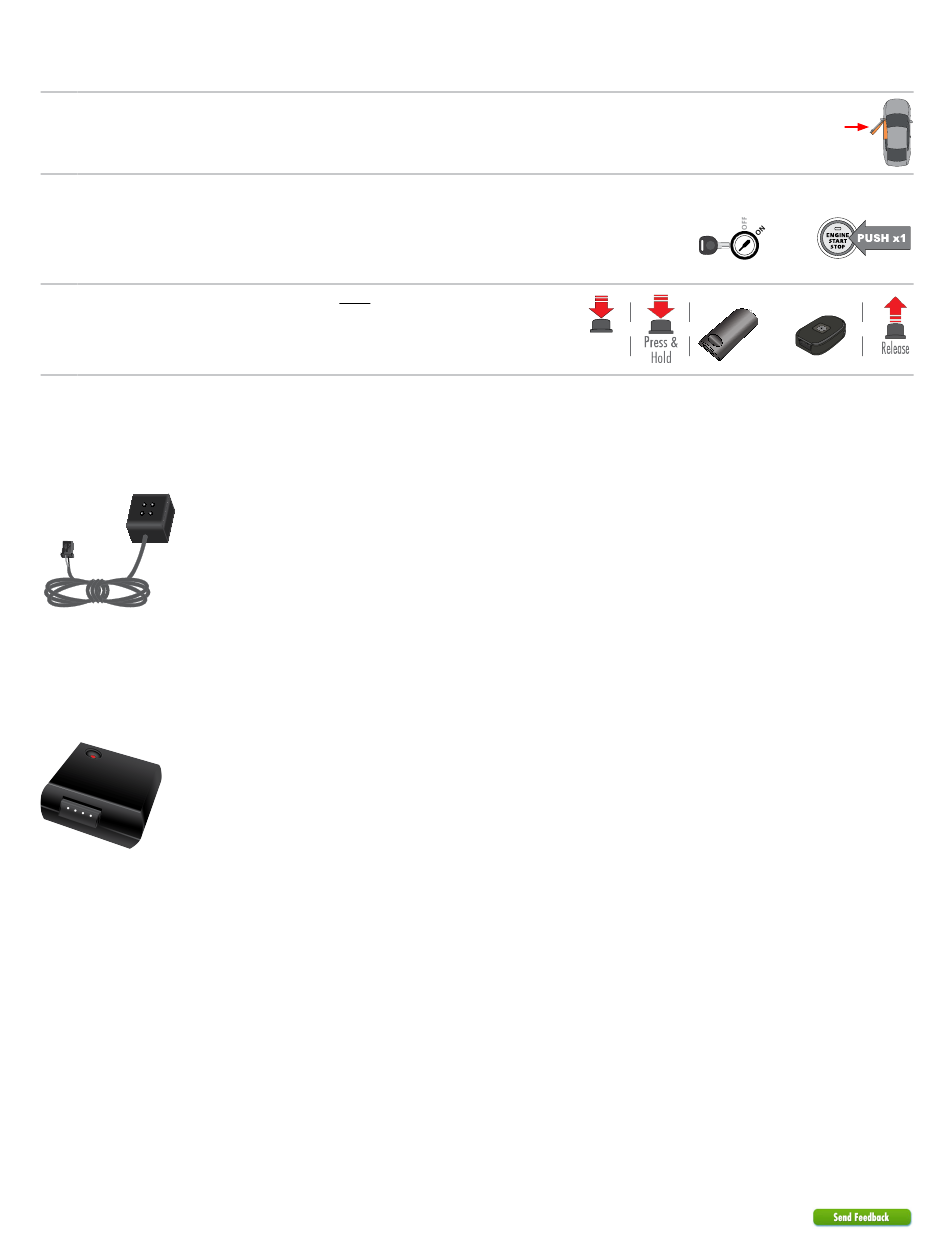

Pairing Remotes

To enter pairing:
1
Open the driver side door.
Turn the vehicle ignition to the ON position.
OR
2
Press the PTS button to turn the ignition ON.
* The number of times the PTS button is pressed depends on the vehicle.
Within 10 seconds, press and release once, and then press and hold
the programming button on the Control Center (antenna) or the LED/Valet Pod
3
(standalone switch) until the LED starts flashing then release the button.
* Your antenna may differ from the model shown in the illustration.
Note: Connected devices become registered within 4 to 6 seconds.

8556T Temperature Sensor

The 8556T Temperature Sensor is optional, but included with your DS3+/DS4+ module.
When used, the Temperature Sensor must be plugged into the 2-pin black connector of your module.
Note: When the system is configured as a remote starter, the temperature is reported by the 8556T Temperature
Sensor. When security features are enabled, it is reported by the 8504D Combo Sensor.

8504D Combo Sensor

The 8504D Combo Sensor is optional, but included with the purchase of a DS4SU security package.
The Combo Sensor is preset for the majority of applications; however, it can be adjusted using the DirectLink
application, as well as a compatible LED or LCD remote. Please refer to the instructions included with the DS4SU for
more information on how to make adjustments.
Note: When the system is configured as a remote starter, the temperature is reported by the 8556T Temperature Sensor.
When security features are enabled, it is reported by the 8504D Combo Sensor.
IMPORTANT:

RF Systems

An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist. An RF
System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow the instructions
included with the kit for appropriate installation and programming information.
..
When used in conjunction with Directed SmartStart
To enable D2D communication between the DS3+/DS4+ and the Directed SmartStart
before providing power to the Directed SmartStart
SmartStart with Loops – The brown loop must be cut.
SmartStart with Pigtails – The gray wire must be connected to a ground source.
18
933.GM9 2.42.195.3 2015 Cadillac CTS Sedan (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Loops
The Combo Sensor must be paired to the device before it can be used.
®
unit:
®
Pigtails
Key OUT Key IN
START START
& &
Press &
Release
one of the following actions must be performed
®
Key IN Key IN
OR
START START
* *
OR
&
