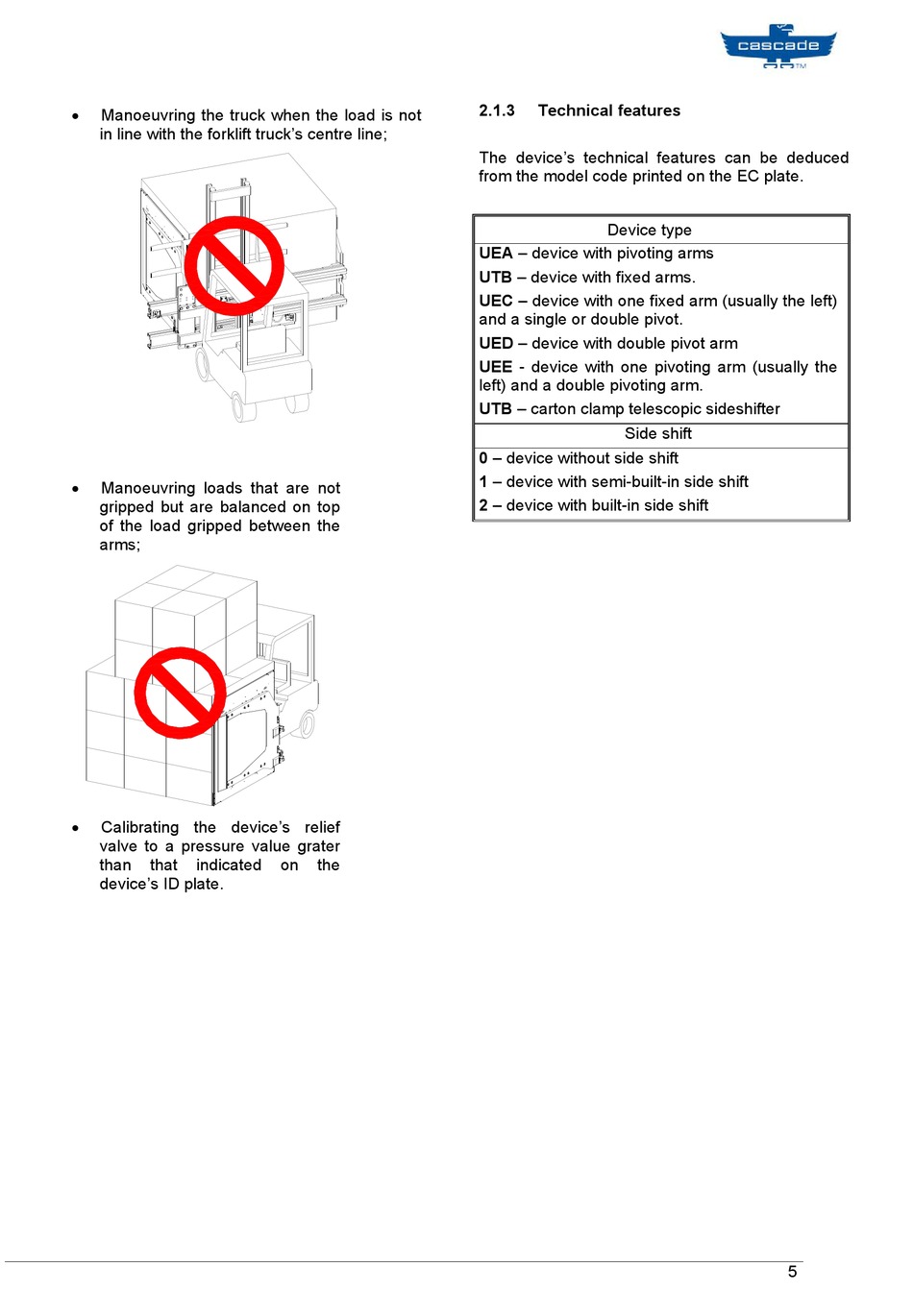

Manoeuvring the truck when the load is not
in line with the forklift truck's centre line;

Manoeuvring loads that are not
gripped but are balanced on top
of the load gripped between the
arms;

Calibrating the device's relief
valve to a pressure value grater
than that indicated
device's ID plate.
on the
2.1.3

Technical features

The device's technical features can be deduced
from the model code printed on the EC plate.
Device type
UEA – device with pivoting arms
UTB – device with fixed arms.
UEC – device with one fixed arm (usually the left)
and a single or double pivot.
UED – device with double pivot arm
UEE - device with one pivoting arm (usually the
left) and a double pivoting arm.
UTB – carton clamp telescopic sideshifter
Side shift
0 – device without side shift
1 – device with semi-built-in side shift
2 – device with built-in side shift
5
