4.1 Safety plates
pictograms

4.2 Residual hazards

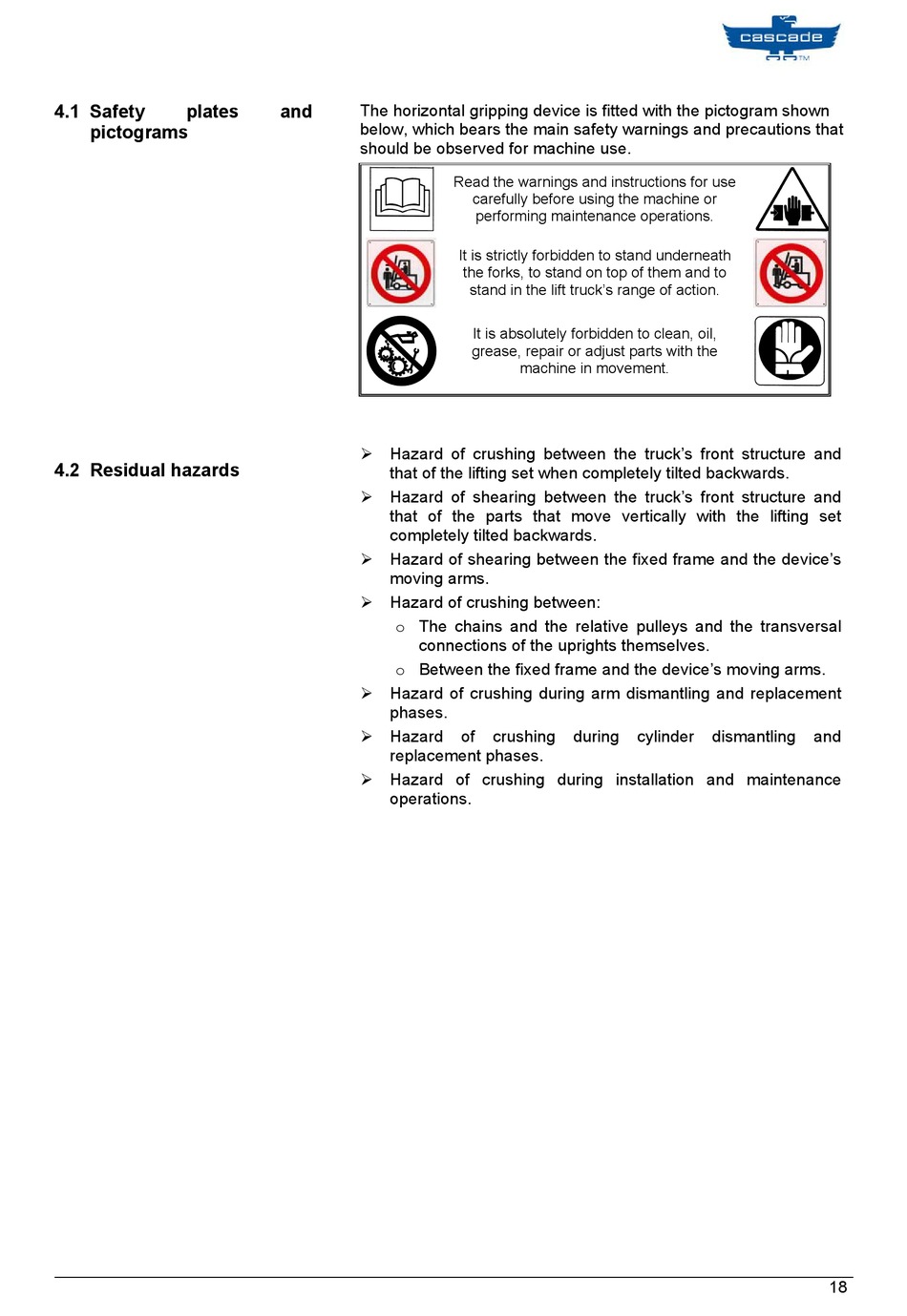

and The horizontal gripping device is fitted with the pictogram shown
below, which bears the main safety warnings and precautions that
should be observed for machine use.
 Hazard of crushing between the truck's front structure and
that of the lifting set when completely tilted backwards.
 Hazard of shearing between the truck's front structure and
that of the parts that move vertically with the lifting set
completely tilted backwards.
 Hazard of shearing between the fixed frame and the device's
moving arms.
 Hazard of crushing between:
o The chains and the relative pulleys and the transversal
connections of the uprights themselves.
o Between the fixed frame and the device's moving arms.
 Hazard of crushing during arm dismantling and replacement
phases.
 Hazard
replacement phases.
 Hazard of crushing during installation and maintenance
operations.
Read the warnings and instructions for use
carefully before using the machine or
performing maintenance operations.
It is strictly forbidden to stand underneath
the forks, to stand on top of them and to
stand in the lift truck's range of action.
It is absolutely forbidden to clean, oil,
grease, repair or adjust parts with the
machine in movement.
of crushing during cylinder dismantling and
