6.6 Bolt torque wrench setting

Rh pitch (mm)
8
10
12
6.7

Sliders

6.7.1

Greasing

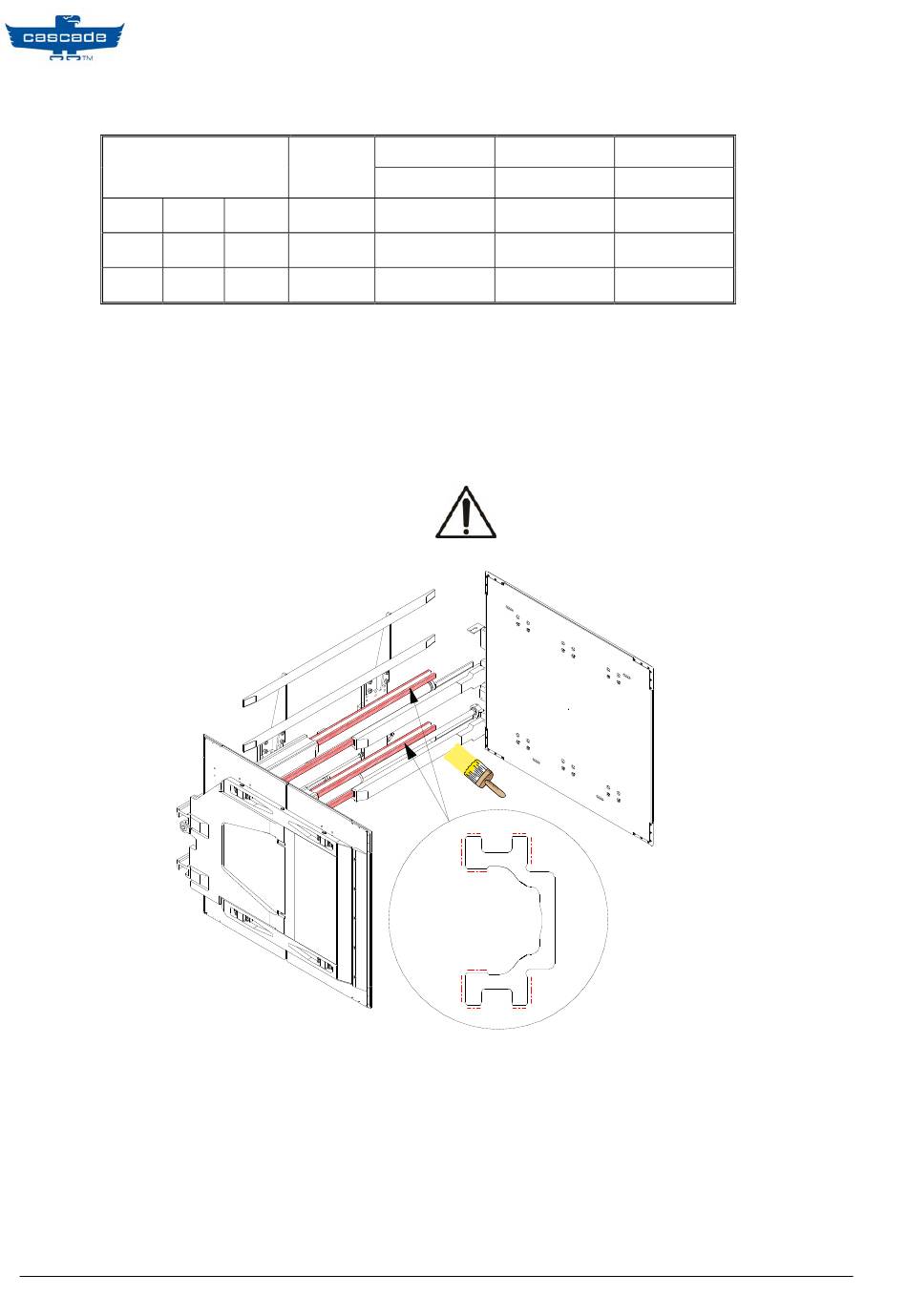

Greasing the sliders is a routine operation
that must be performed in order to guarantee
correct lubrication and therefore safe and
easy usage of the Horizontal Gripping
Device.
25
Sr
(mm²)
x 1,25 36,6
x 1,5 58
x 1,75 84,3
8.8 10.9
M (N*m) M (N*m)
25 37
50 73
86 127
The guides are pre-lubricated in the production phase
and therefore do not require lubrication when the
device is installed for the first time.
ATTENTION: lubrication operations must
only be performed with truck power off.
12.9
M (N*m)
44
86
148
